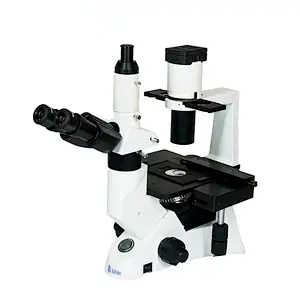

Inverted Trinocular Microscope YR0230
Inverted Trinocular Microscope YR0230 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Inverted Trinocular Microscope YR0230 is a sophisticated instrument geared towards advanced biological research. Equipped with an extra wide field eyepiece EW10x/22mm and high eye point long working distance plan achromatic objectives, it allows researchers to observe transparent and living specimens directly in culture bottles. Its infinity optical system and phase contrast functionality make it the ideal tool for studying live specimen structures, liquid deposits, and more.
Market Price
In the current market, inverted microscopes like the YR0230 typically range from $3,000 to $5,000, depending on additional features and accessories. For precise pricing and to explore potential discounts or investment options, we invite you to request a quote through the Kalstein Plus platform.
Frequently Asked Questions
- What types of specimens can be observed with this microscope?
The YR0230 is suitable for observing transparent and living specimens, including cell cultures and other biological samples. - Is this microscope compatible with digital cameras?
Yes, it includes a photo adapter and offers options for C-Mount adapters, facilitating digital imaging.
Advantages and Disadvantages
The main advantages of the YR0230 include its versatility in observing various specimens, high-quality optics, and ergonomic design. However, as a high-end model, it may represent a significant investment for smaller laboratories.
Field Use
This microscope is commonly used in laboratory environments for cellular biology, medical research, and other fields requiring detailed analysis of living specimens. Its ability to accommodate specimen in large culture flasks without the need for manual transfer is particularly beneficial for maintaining specimen integrity.
Recommendations
To get the most out of your Inverted Trinocular Microscope YR0230, ensure regular maintenance and calibration. Use appropriate cleaning materials for optics and consider investing in additional phase contrast sliders for extended versatility. Request a detailed demonstration or training session via Kalstein Plus to fully explore its capabilities.
Features
- Infinity optical system.

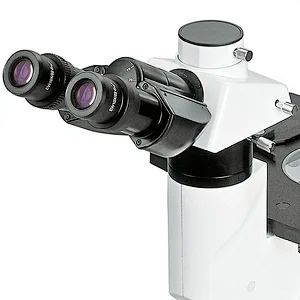

- Seidentopf trinocular head with 30° inclination.
- Highly adjustable plan achromatic objectives.
- Spacious working stage with auxiliary stage options.
- External Kohler illumination with adjustable brightness.
Technical Specifications
| Model | YR0230 | ||
| Optical System | Infinity Optical System | ||
| Head | Seidentopf Trinocular Head, 30° Inclined, | ||
| Interpupillary 48~75mm, Diopter Adjustable | |||
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, High Eye point | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan LWD Achromatic Objective | 4x/0.1, W.D.18mm | |
| 40x/0.6, W.D.2.6mm,Cover Glass 1.2mm | |||
| Infinity Plan Phase Contrast Achromatic Objective | PH10x/0.25, W.D.10mm | ||
| PH20x/0.40, W.D.5.1mm | |||
| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per | ||
| Rotation | |||
| Working Stage | Plain Stage 160*250mm | ||
| –Glass Insert Plate | |||
| –Auxiliary Stage 70*180mm | |||
| Condenser | ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser | ||
| Phase Contrast | –Centering Telescope, Tube Dia.30mm | ||
| –Phase Contrast Slide, 2 Holes For 10x-20x Objective | |||
| Filter | Green, Blue, Ground Glass, Dia.45mm | ||

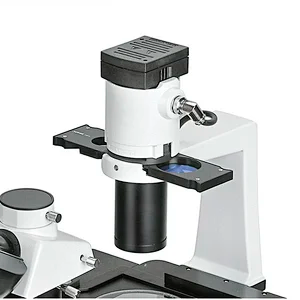

| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Adapter | Eyepiece Adapter Dia.23.2mm | ||
| Inverted Laboratory Biological Microscope Optional Accessories | |||
| Objective | Infinity Plan LWD Achromatic Objective | 10x/0.25,W.D.10mm | YR0230-op1 |
| 20x/0.4,W.D.5.1mm | YR0230-op2 | ||
| Phase Contrast | Infinity Plan Phase Contrast Achromatic Objective | PH40x/0.6,W.D.0.35mm | YR0230-op3 |
| Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective | YR0230-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0230-op5 | |
| Ergonomic Stage Knob’s Height & Position Along Y-Axis Movable To Where It | |||
| Is Most Comfortable, Tightness Adjustable | |||
| Terasaki Holder, Inner Holding Size 56x88mm | YR0230-op6 | ||
| Petri Dish Holder Dia.38mm | YR0230-op7 | ||
| Slide Glass Holder Dia.54mm | YR0230-op8 | ||
| Slide Glass Holder Dia.90mm | YR0230-op9 | ||
| Adapter | Photo Adapter | YR0230-op10 | |
| C-Mount 1.0x | YR0230-op11 | ||
| C-Mount 0.45x | YR0230-op12 | ||
| Fluorescent | Fluorescent Attachment | YR0230-op13 | |
Technical specifications
| Dimensions | L 46.8 × W 39.7 × H 66.5 cm |
|---|---|
| Weight | 15.5 kg |
| Manufacturer | Kalstein |

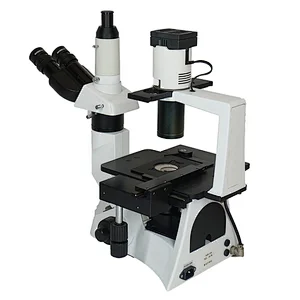

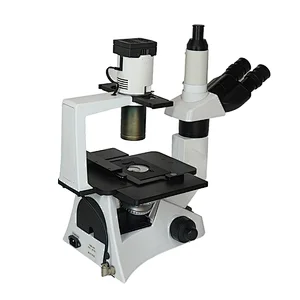

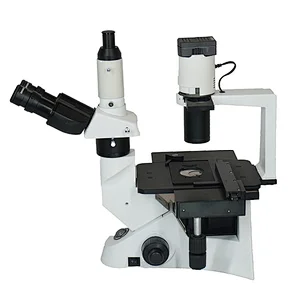

Image gallery
