Understanding advances in the field of Laboratory Analyser technology
Advances in the field of laboratory analyser technology have significantly impacted the goods and services industries worldwide; this technology is being...
Analyzers
A Biochemical Analyzer is a laboratory equipment, which has among its functions to measure the level in blood or other body fluids, analytes such as glucose, cholesterol, triglycerides, uric acid, proteins and enzymes.
The main component of the Biochemical Analyzer is a Spectrophotometer where it measures the concentrations of different substances based on the intensity of color or based on the amount of substrate used (this in the case of enzymes), after a series of chemical reactions.
Types of Analyzers that a Laboratory may need
Urine Analyzer
Urinalysis Analyzers are laboratory equipment that perform automated analysis of several essential parameters of urine, allowing to detect the presence of urinary tract infections, determine pH, blood and protein loss, as well as evaluate the presence of analytes such as glucose, ketone bodies, nitrites and bilirubin in urine.
These instruments perform an efficient analysis of urine samples, and are highly recommended especially in clinical laboratories with a high volume of patients, because they streamline the workflow and improve the quality of the results.
Chemistry analyzer
The chemistry analyzer is a clinical laboratory tool designed to perform blood analysis from 125 to 1600 photometric tests per hour. This equipment works mainly in clinical or hospital laboratories, its main function is to analyze the elements of a blood sample, to calculate the levels of triglycerides, cholesterol, proteins, among others.
At the same time, it favors the performance of studies to analyze the metabolic balance of a person, with urine or blood serum samples. In addition, it allows the analysis of animal samples.
KALSTEIN ANALYZERS
At Kalstein you can find the ideal Analyzers for your Laboratory
There are an infinite number of models, so it is normal that you do not know which Analyzer to buy to meet your needs. At Kalstein, we evaluate them so you can find what you are looking for.

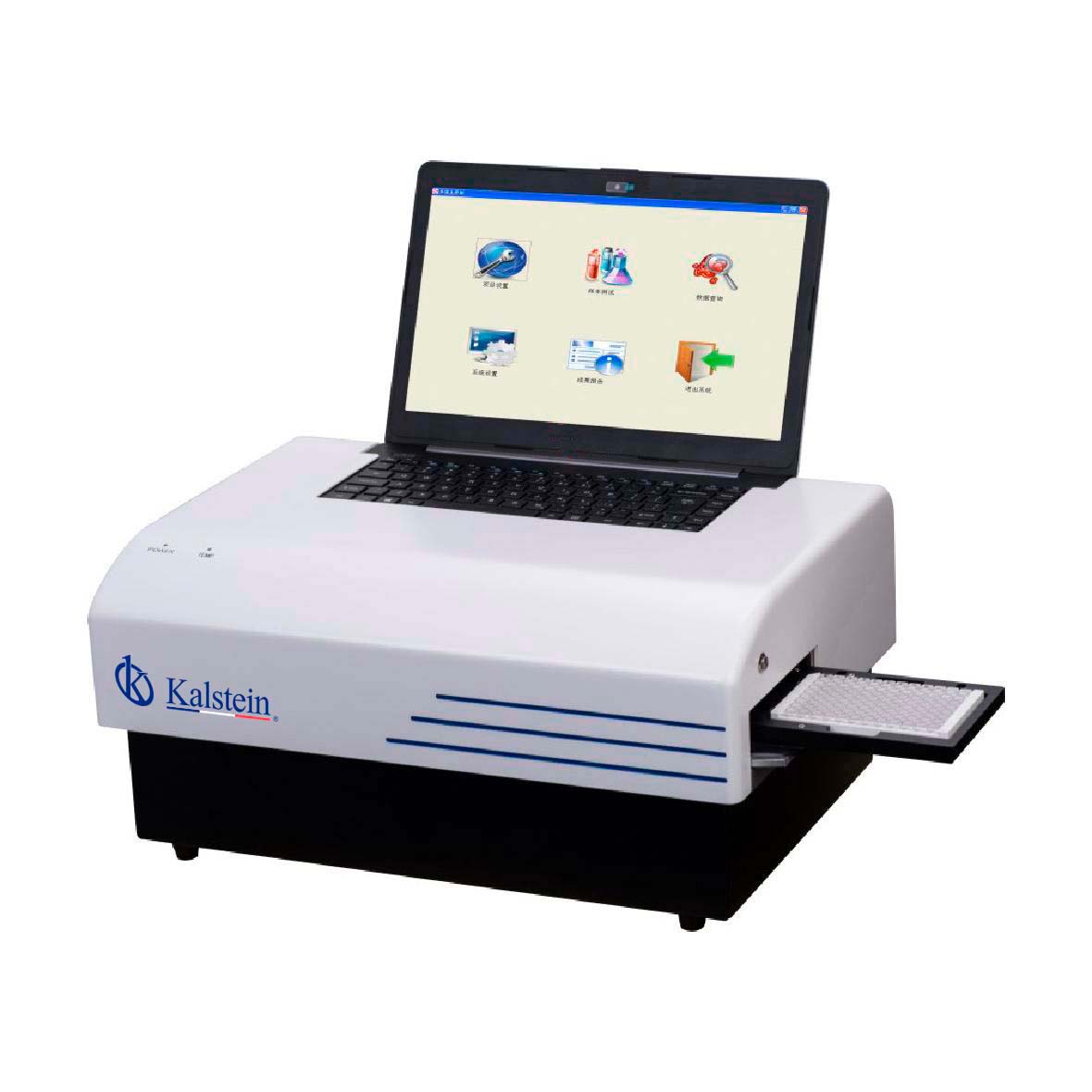

YR05119 Chemistry & Immunoassay Analyzer for Seminal Plasma
- Chemistry and immunoassay test for seminal plasma...
Full-auto Chemistry Analyzer YR05123
- Two test mode: Automatic washing and Disposable cuvette
- Open system, real time curve showing...
Full-auto Hematology Analyzer YR05120
- 3-part differentiation of WBC, 23 parameters,
- Single channel counter, up to 30 samples...
Hematology Analyzer YR05122-1
- WBC 5-part differentiation, 29 parameters, 3D scattergram and 3 Histograms
- Tri-angle laser scatter and Flow cytometry technology...
Nuestro Analizador más vendido
● 3-part differentiation of WBC, 24 parameters
● 8.4 inches color touch screen
● Waste full alarm automatically
● Double channel counter,up to 60 samples test per hour
● sample volume : venous 9.8 ul, prediluted 20 ul for twice testing
● Windows operation system, mouse and keyboard operation
● Automatically sample probe cleanning (inside and outside)
● Large storage capacity: up to 100,000 samples +3 histograms
● Internal thermal-sensitive printer or external printer.
| Model | YR05121 | ||
| Methodology | Electrical resistance for counting,hemiglobincyanide method and SFT method for hemoglobin | ||
| Parameter | 3-part differentiation of WBC;23 parameters | ||
| Sample volume | 9.8ul for Venous and capillary mode,20ul for prediluted mode | ||
| Throughput | more than 60 sample results including histograns can be stored,convenient for inquiry and management of history data | ||
| Storage | up to 100000 sample results including histograms can be stored,convenient for inquiry and management of history data | ||
| Operation langue | English | ||
| QC control | X-B,L-J,X,SD,CV% | ||
| Refrence value setting | Male,Female,Children,Neonate | ||
| Input/output | RS232,parallel printer and keyboard | ||
| Graphic thermal printer with various printing format,optional external printer | |||
| Temperature | 18℃-30℃,wet≤10-90% | ||
| Power supply | 220V±22VAC,50±1Hz | ||
| Dimension | 33CM(L)*38CM(W)*43CM(H) | ||
| Weight | 20kg | ||
|
Parameter |
Range |
Whole blood sample repeatability (CV)% |
| WBC | 7.0 ~ 15.0 × 109/L |
≤ 2.0 |
| 4.0 ~ 6.9 × 109/L |
≤ 3.5 |
|
| RBC | 3.50 ~ 6.5 × 1012 / L |
≤ 1.5 |
| HGB | 100 ~ 180 g/L |
≤ 1.5 |
| MCV | 70.0~ 110.0 fL |
≤ 0.5 |
| PLT | 150 ~ 500 × 109/L |
≤ 4.0 |
| 100 ~ 149 × 109/L |
≤ 5.0 |
Catalog of Analyzer models on offer
KALSTEIN UPDATED
Guides to becoming an expert in Moisture Analyser
Humidity Analysers are essential products in a laboratory, we provide guides and recommendations for better use, so you can work as an expert...
Analyzer Applications in Chemistry Laboratories: New Technologies for More Accurate Analysis
In the modern world, performing chemical analysis is part of everyday life. Chemistry laboratories have to perform chemical analysis..
Risks associated with the use of automated blood chemistry Analyzers for the Laboratory
The use of automated blood chemistry analyzers and laboratory instruments is increasingly beneficial for optimizing data processing...
What other tests can be performed with an automatic blood chemistry analyser for the Laboratory?
An automatic blood chemistry analyser is a versatile laboratory equipment whose main applications focus on determining the content of...
Video of our Analyzer in operation
In this section you will find our Analyzer in operation, packaged, being serviced, etc.
Analyzer in operation
Los analizadores completamente automatizados integran en una única plataforma tanto las pruebas físicoquímicas como el análisis de partículas de sedimentos. Estos analizadores logran disminuir por completo la variabilidad interobservador y optimizar el flujo de trabajo del laboratorio, así como mejoran la exactitud y precisión de la prueba. Aunque el análisis manual del sedimento urinario no se excluye por completo...
Frequently Asked Questions about Analysers
How to know the prices of the Analyser?
To know the price of the Analyzer we invite you to send us an email with your request using the contact form..
What are the delivery times of the Analyser?
- The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
- Delivery Time (Air): 15-30 days.
- Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
- Delivery Time (Air): 30-60 days.
- Delivery Time (Maritime): 60-90 days.
How to make a purchase of Analysers?
You can purchase through:
- By email: sales@kalstein.eu
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
All Kalstein equipment has a 1-year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or by uses other than those specified by the manufacturer. Warranty excludes electrical or consumable parts. For more information visit our “terms and conditions” by clicking HERE
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
