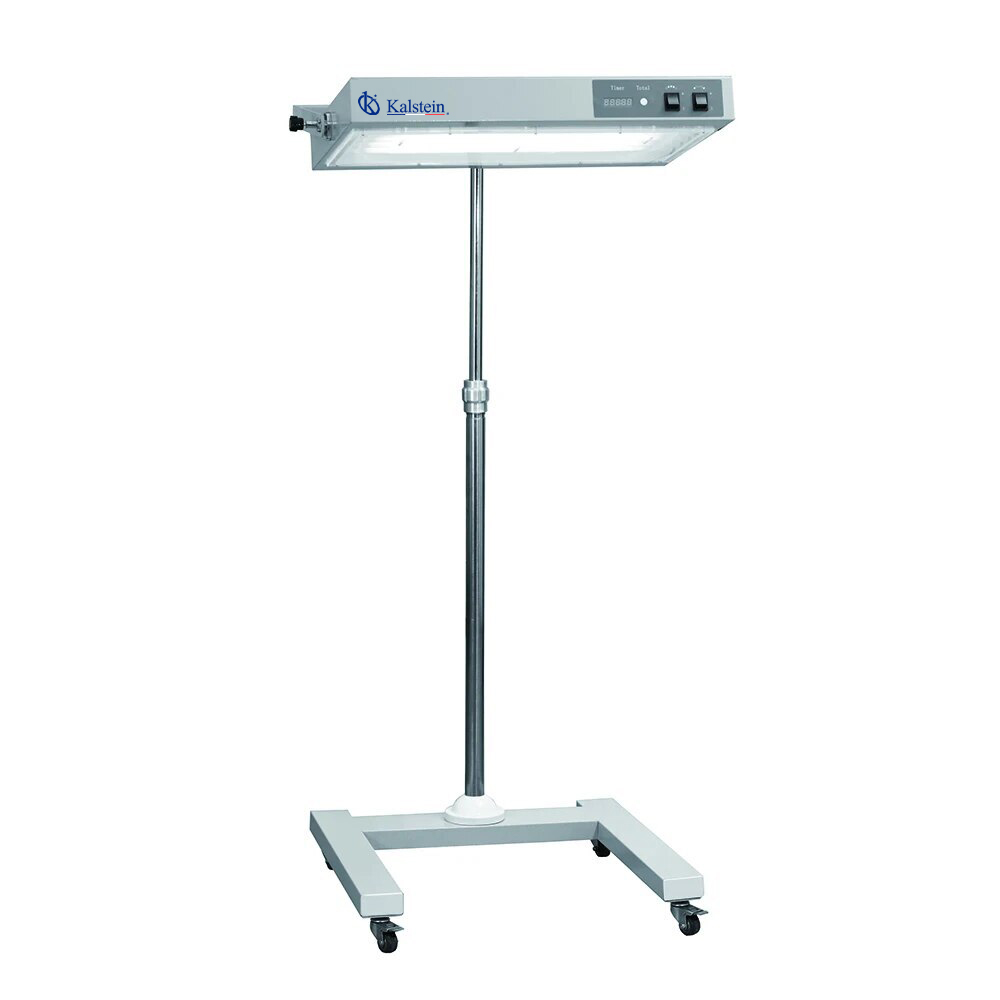

Common Errors and Troubleshooting Symptoms for the YR02194 Phototherapy Unit
The YR02194 infant bilirubin phototherapy unit is an essential device designed for effective treatment of neonatal jaundice. While it is built for reliability, operators may encounter various errors or symptoms that require troubleshooting. This article focuses on common issues faced during operation and provides targeted solutions to ensure optimal functionality of the YR02194.
Technical Specifications of the YR02194
| Specification | Details |
|---|---|
| Model | YR02194 |
| Input Power | <150VA |
| Light Source | Blue tube |
| Effective Life of Light Source | 1000 hours |
| Wave Length | 400-550 nm |
| Irradiance Treatment Distance | 10~500px |
| Effective Area | 1125px × 600px |
| Infrared Radiation in Effective Area | ≤10mW/cm² (760nm<λ≤1400nm) |
| Ultraviolet Radiation in Effective Area | ≤1.0 × 10⁻⁵mW/cm² (180nm<λ≤400nm) |
| Operating Noise | ≤55dB(A) (ambient noise is lower than 40dB(A)) |
| Basic Performance | the equipment total irradiance (Ebi) ≥500μW/cm² |
| Adjust Angle | 30°, 60°, 90° |
| Adjust Height | 1100mm~1500mm |
Troubleshooting by Symptoms
Understanding the symptoms that arise during the operation of the YR02194 is critical for efficient troubleshooting. Below, we outline several common errors along with probable causes and solutions.
Equipment Does Not Power On
When the YR02194 fails to power on, it can disrupt treatment protocols and raise concerns about patient care. Common causes include:
- Power supply issues: Ensure that the device is properly plugged in and that the outlet is functional.
- Defective power cord: Inspect for any visible damage or wear on the cord.
- Internal fuse blown: Check and replace the fuse if necessary.
To resolve this issue, follow these steps:
- Verify that the power source is operational by testing with another device.
- Inspect the power cord and replace if damaged.
- Examine the internal fuse and replace if it has blown.
Error Code E-03
The E-03 error code can indicate a malfunction within the internal components of the YR02194. Possible reasons for this error include:
- Overheating: Ensure that the unit is adequately ventilated and not obstructed.
- Sensor failure: Inspect the photodiodes for any faults.
To address this error:
- Allow the device to cool down before restarting to avoid overheating.
- Check the sensor connections and replace any faulty sensors.
Inconsistent Readings
Inconsistent readings from the YR02194 can lead to inadequate treatment and should be taken seriously. Common causes include:
- Improper positioning: Ensure the infant is correctly positioned under the light source.
- Dirty sensor: Clean the light and sensor area regularly to ensure accurate readings.
Steps to resolve this symptom:
- Verify the positioning of the infant and adjust as necessary.
- Clean the sensor and light source to remove any obstructions.
Symptom-Cause-Solution Matrix
| Symptom | Possible Causes | Solutions |
|---|---|---|
| Equipment Does Not Power On | Power supply issues, defective power cord, internal fuse blown | Check outlet and cord, replace fuse |
| Error Code E-03 | Overheating, sensor failure | Let cool down, check/replacement sensors |
| Inconsistent Readings | Improper positioning, dirty sensor | Adjust positioning, clean sensor |
Frequently Asked Questions
What should I do if the YR02194 shows an error code that I don't recognize?
If the YR02194 displays an unrecognized error code, refer to the user manual for a comprehensive list of codes and their meanings. If the issue persists, contact technical support for assistance.
How often should the light source of the YR02194 be replaced?
The light source of the YR02194 should be replaced after approximately 1000 hours of use to maintain optimal performance and effectiveness in treating jaundice.
Can I use generic bulbs with the YR02194 unit?
It is highly recommended to use only the specified bulbs for the YR02194 to ensure safety and efficacy. Generic bulbs may not meet the required specifications.
What is the recommended maintenance schedule for the YR02194?
Regular maintenance should include cleaning the sensor and light area every week, checking connections monthly, and replacing the light source after 1000 hours of operation.
How do I ensure accurate readings from the YR02194?
To ensure accurate readings, always position the infant correctly under the light source, keep the sensor clean, and routinely check the calibration of the device.
What are the environmental requirements for operating the YR02194?
The YR02194 should be operated in a temperature range of 10-40 degrees Celsius and in a dry environment to prevent any electrical faults or inaccuracies in readings.
Conclusion
Troubleshooting the YR02194 effectively can significantly enhance patient care and operational efficiency. By understanding common errors and their solutions, operators can ensure reliable performance and continuous care for infants in need of phototherapy. For more personalized assistance and to request a quote, please reach out to Kalstein Plus.
