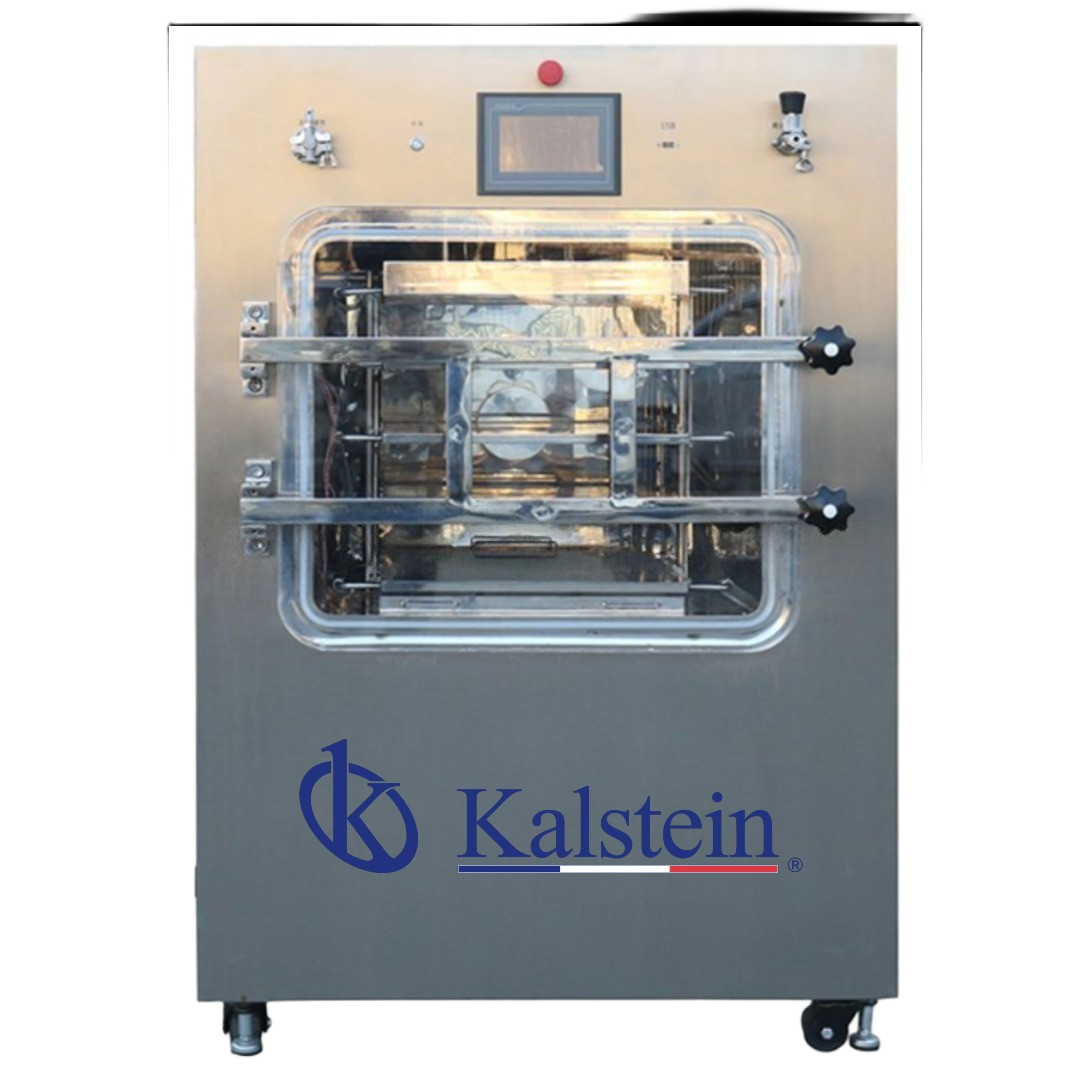

Common Errors and Troubleshooting by Symptoms for the YR06692 Freeze Dryer
The YR06692 Freeze Dryer is a sophisticated industrial-grade vacuum lyophilizer designed for high-precision processes. As with any advanced equipment, users may encounter various errors during operation. Understanding these common issues and implementing effective troubleshooting techniques can significantly reduce downtime and enhance productivity.
Understanding the YR06692 Freeze Dryer
The YR06692 utilizes silicone oil heating technology, which ensures uniform and stable thermal transfer, making it ideal for applications in medicine, pharmacy, biological research, and fine chemistry. It incorporates a top-press system designed specifically for vial drying, which allows for hermetic sealing in the vacuum chamber, thereby preventing secondary contamination and moisture reabsorption.
Technical Specifications of the YR06692
Parameter | Features |
Model | YR06692 |
Lyophilization Area | 1.0 m2 |
Heating Type | Silicone Oil (Uniform) |
Press Function | Top Press for Vials (Stoppering) |
Loading Capacity (L) | 10 to 15 Liters (depending on material) |
Cold Trap Temperature | -70 °C or -80 °C (optional) |
Shelf Temperature | -50 °C to +70 °C |
Temperature Accuracy | ± 1 °C |
Final Vacuum | < 5 Pa |
Shelf Material | Stainless Steel SUS304/316L |
Control System | FD-PILOT (7" Touchscreen) |
Memory Capacity | 100 recipe groups / 50 segments |
Data Interface | USB port for curve export |
Voltage | 380V / 50Hz (Three-phase) |
Total Power | 4.5 kW to 6.0 kW (depending on configuration) |
Equipment Dimensions | 120 x 95 x 175 cm |
Net Weight (kg) | 480 kg |
Shipping Weight (kg) | 550 kg (Wooden Box) |
Common Errors and their Symptoms
Here are some frequent errors associated with the YR06692, along with their symptoms and troubleshooting steps:
| Error Code | Symptom | Probable Cause | Diagnostic Steps | Solutions |
|---|---|---|---|---|
| E-01 | Equipment does not power on | Power supply issue | Check power connections and voltage | Ensure the equipment is plugged in and the circuit breaker is not tripped. |
| E-02 | Inconsistent shelf temperature readings | Sensor malfunction | Inspect temperature sensors for damage | Replace faulty sensors as needed. |
| E-03 | Vacuum not achieved | Leak in the system | Check for visible leaks in hoses and seals | Seal any leaks and test again. |
| E-04 | Cooling failure | Refrigeration system malfunction | Examine compressor functionality | Repair or replace the compressor if needed. |
| E-05 | Error in data logging | Memory storage issue | Check USB connection and memory integrity | Format USB or replace if corrupted. |
Frequent Troubleshooting Techniques
Equipment Does Not Power On
If the YR06692 does not power on, the first step is to ensure that the equipment is properly connected to a functioning power source. Check the outlet, power cord, and ensure that the circuit breaker has not tripped. If all connections are intact and the equipment still does not turn on, this may be indicative of internal electrical faults, requiring professional assistance.
Inconsistent Temperature Readings
Inconsistent temperature readings can significantly affect the efficiency of the lyophilization process. If you observe such discrepancies, it is crucial to inspect the temperature sensors. Ensure that they are clean and not damaged. If faults are detected, replacing the sensors is recommended to restore proper functionality.
Vacuum Not Achieved
Inability to achieve the necessary vacuum can be caused by leaks within the system. Begin troubleshooting by visually inspecting all hoses, seals, and joints for any signs of wear or damage. If leaks are found, they must be sealed adequately to restore vacuum efficiency.
Cooling Failure
A cooling failure can lead to the entire lyophilization process failing. Should this error occur, check the compressor’s operation; a faulty compressor may need to be repaired or replaced. Regular maintenance checks can prevent this issue from arising.
Error in Data Logging
Data logging issues may occur due to problems with the USB connection or memory corruption. Ensure that the USB device is securely connected and functioning properly. In case of memory issues, formatting the USB may resolve the problem. If problems persist, replace the USB device.
Frequently Asked Questions
What are the most common errors associated with the YR06692 Freeze Dryer?
The most common errors include power supply issues, inconsistent temperature readings, vacuum failure, cooling failures, and data logging errors. Each of these requires different troubleshooting techniques.
How often should I perform maintenance on the YR06692?
Regular maintenance should be performed according to the manufacturer’s guidelines, typically every six months, or whenever significant errors occur. This helps ensure optimal performance and longevity.
Can the YR06692 be used for both liquid and solid samples?
Yes, the YR06692 is versatile and can handle both liquid and solid samples placed in trays, as well as products packaged in vials requiring vacuum sealing.
How do I maximize the life of the YR06692 Freeze Dryer?
To maximize its life, regularly calibrate sensors, ensure proper cleaning, and maintain a clutter-free operating environment. Additionally, avoid overloading the unit.
Where can I find replacement parts for the YR06692?
Replacement parts can typically be sourced from authorized distributors or manufacturers specializing in laboratory equipment. It's advisable to use original parts to ensure compatibility and performance.
What should I do if I encounter an error code I cannot resolve?
If you encounter an unresolvable error code, consult the user manual for troubleshooting steps. If the issue persists, contact customer support or a qualified technician for professional assistance.
Conclusion
Understanding the common errors and troubleshooting techniques for the YR06692 Freeze Dryer is crucial for maintaining efficient operation. By following the guidelines provided, users can effectively manage issues and ensure optimal functioning of their equipment.
