Common Errors and Troubleshooting by Symptom for the YR05200 Freeze Dryer
The YR05200 Vertical Electric Heating Laboratory Freeze Dryer is an essential tool in various fields, including medicine, pharmacy, biological research, chemistry, and food preservation. Despite its robust design and efficiency, operators may encounter several common errors during operation. This article aims to provide a comprehensive guide on troubleshooting these errors by focusing on specific symptoms, their probable causes, and effective solutions.
Understanding the YR05200 Freeze Dryer

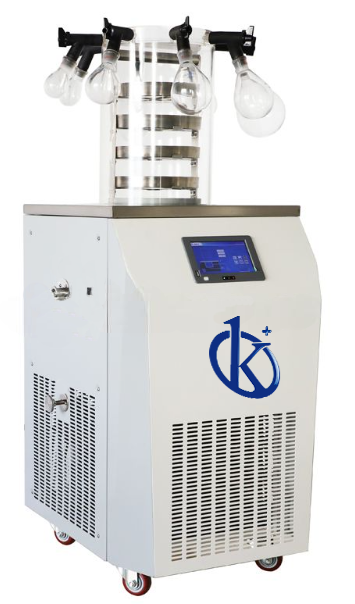

The YR05200 model is designed for routine lyophilization processes typically conducted in laboratory settings. With features such as a 7-inch touchscreen, electric heating control, and a stainless steel operating table, it ensures a seamless freeze-drying experience. However, understanding its technical specifications is vital for troubleshooting any potential issues.
| Specification | Detail |
|---|---|
| Model | YR05200 |
| Lyophilized Area | 0.18m²/0.27m² |
| Panel Material (Thickness) | 10 mm |
| Tray Material | Ф240mm, 4/6 layers |
| Storage Temperature | -40 ~ +60°C |
| Water Capture Capacity | 6 kg/24h |
| Voltage | 230V |
| Weight | 105 KG |
Troubleshooting by Symptom
Below are common symptoms encountered with the YR05200 and their respective troubleshooting steps.
Equipment Does Not Power On
This issue can stem from several causes:
- Power source failure
- Blown fuse or circuit breaker
- Faulty power cord
Solution: Check the power outlet and ensure it is functioning. Inspect the fuse and replace it if blown. If the power cord shows signs of damage, it should be replaced.
Error Code E-03
Error code E-03 typically indicates a vacuum issue. The causes may include:
- Vacuum pump malfunction
- Leakage in the system
- Improperly sealed trays
Solution: Test the vacuum pump’s functionality and replace if necessary. Inspect the entire system for leaks and ensure that all trays are sealed properly before starting the freeze-drying process.
Inconsistent Readings
Operators may sometimes notice inconsistent temperature or pressure readings. The possible causes include:
- Calibration issues
- Sensor failure
- Environmental factors affecting readings
Solution: Regular calibration of sensors is crucial; perform this step before each use. If sensors are found to be malfunctioning, they should be replaced immediately. Environmental factors such as room temperature and humidity should also be monitored and controlled.
Overheating During Operation
Overheating may arise from the following causes:
- Blocked air vents
- Poor ventilation in the laboratory
- Faulty temperature control system
Solution: Regularly check and clear any obstructions from the air vents. Ensure that the laboratory has adequate ventilation to dissipate heat. If overheating persists, the temperature control system may need to be inspected and repaired.
Incomplete Lyophilization
Operators might face issues where the products are not completely lyophilized. Possible reasons include:
- Insufficient drying time
- Overloading the trays
- Inaccurate temperature settings
Solution: Ensure that the drying time is adequate based on the material being processed. Avoid overloading the trays to allow for proper airflow. Always verify temperature settings before starting the cycle.
Symptom to Cause to Solution Table
| Symptom | Cause | Solution |
|---|---|---|
| Equipment does not power on | Power source failure, blown fuse, faulty power cord | Check outlet, replace fuse, inspect power cord |
| Error code E-03 | Vacuum pump malfunction, leakage, improperly sealed trays | Test vacuum pump, check for leaks, ensure proper sealing |
| Inconsistent readings | Calibration issues, sensor failure, environmental factors | Calibrate sensors, replace faulty sensors, control environment |
| Overheating during operation | Blocked air vents, poor ventilation, faulty controls | Clear vents, improve ventilation, inspect temperature controls |
| Incomplete lyophilization | Insufficient drying time, overloading, inaccurate settings | Adjust drying time, avoid tray overloading, verify settings |
Frequently Asked Questions
What should I do if my YR05200 Freeze Dryer displays an error code?
First, consult the user manual to understand the specific error code displayed. Common steps include checking the power supply, inspecting for leaks, or ensuring that all components are properly connected. If the issue persists, contacting technical support is recommended.
How often should I conduct maintenance on the YR05200?
Routine maintenance should typically be conducted monthly, which includes cleaning components and checking the functionality of sensors and pumps. Additionally, perform more comprehensive servicing every six months or as needed based on usage.
Can I operate the YR05200 in an uncontrolled environment?
It is not advisable to operate the YR05200 in uncontrolled environments. Factors such as temperature and humidity can significantly impact the performance and reliability of the freeze dryer, leading to inconsistent results.
What are the common causes for incomplete lyophilization in the YR05200?
Common causes include insufficient drying time, overloading the trays, and incorrect temperature settings. Ensuring that proper protocols are followed can help avoid these issues.
Is it necessary to calibrate the YR05200 regularly?
Yes, regular calibration is important to ensure accuracy in readings and optimal performance. Calibration should be performed before significant runs and periodically based on the frequency of use.
How can I improve the performance of my YR05200 Freeze Dryer?
Improving performance can be achieved by maintaining proper settings for temperature and pressure, scheduling regular maintenance, and ensuring that the laboratory conditions are optimal for operation.
Where can I find replacement parts for the YR05200?
Replacement parts can typically be sourced through authorized suppliers or directly from the manufacturer. Always ensure that you are purchasing genuine parts compatible with the YR05200 model.
