Common Errors and Troubleshooting by Symptoms for the YR05802 Humidity Chamber
The YR05802 humidity chamber is an essential tool for various applications, including environmental testing, pharmaceutical development, and biological research. Its precise control over temperature and humidity makes it indispensable in laboratories. However, like any sophisticated equipment, users may encounter common errors that hinder its performance. This guide focuses on troubleshooting these errors by symptoms, helping operators effectively maintain the YR05802.

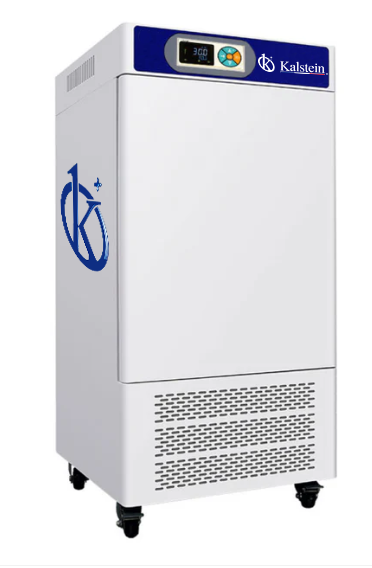

Understanding the YR05802 Humidity Chamber
The YR05802 is designed to provide a controlled environment with constant temperature and humidity levels. The internal structure is made of mirror stainless steel, ensuring durability and easy cleaning. The chamber is equipped with an intelligent control system for temperature and humidity regulation, making it suitable for both industrial performance testing and biological engineering applications. Understanding its features is key to troubleshooting effectively.
Technical Specifications of YR05802
| Model | YR05802 |
|---|---|
| Temperature Range (°C) | 0~60 |
| Temperature Accuracy (°C) | ±0.1 |
| Time Range | 0~999 minutes |
| Fluctuation (%) | ±0.5 |
| Voltage (V) | 220 |
| Power (kilowatts) | 0.4 |
| Internal Size (mm) (H x W x D) | 580×450×380/100L |
| Overall Dimension (mm) (H x W x D) | 1100×590×620 |
| Net Weight (kg) | 93 |
Troubleshooting by Symptoms
This section categorizes common symptoms users may encounter while operating the YR05802 and provides probable causes along with diagnostic steps and solutions.
1. Equipment Does Not Power On
If the YR05802 does not power on, users should first check the power supply. Ensure that the power cable is securely connected and that the electrical outlet is functioning.
- Check the power cable for any visible damage.
- Ensure the power switch is in the 'on' position.
- Test the outlet with another device to confirm it has power.
If these steps do not resolve the issue, consult the technical manual for further diagnostics.
2. Error Code E-03 Appears
Error code E-03 typically indicates a humidity sensor failure. To address this issue:
- Inspect the humidity sensor for any obstructions or damage.
- Recalibrate the humidity settings following the manufacturer’s instructions.
- If necessary, replace the humidity sensor as per the compatibility guide.
3. Inconsistent Temperature Readings
Inconsistent temperature readings can stem from several factors, including ambient temperature fluctuations or calibration issues:
- Check for proper clearance around the unit to prevent heat exchange.
- Recalibrate the temperature settings and verify the accuracy with a secondary thermometer.
- Inspect the internal fans for functionality to ensure air circulation is adequate.
4. Excessive Humidity Build-Up
Excessive humidity build-up may indicate a malfunctioning humidifier:
- Check the water reservoir for blockages or overfilling.
- Inspect the humidifier components for wear and tear.
- Ensure the settings are correctly configured for the required humidity levels.
5. User Interface Malfunctions
Malfunctions in the user interface can cause operational disruptions:
- Restart the unit to reset the control system.
- Check for software updates that may resolve interface bugs.
- If issues persist, consult the technical support team.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply issues | Check power connections and outlet |
| Error Code E-03 | Humidity sensor failure | Inspect and replace humidity sensor |
| Inconsistent Temperature Readings | Calibration or clearance issues | Recalibrate and ensure adequate clearance |
| Excessive Humidity Build-Up | Humidifier malfunction | Check and clean humidifier components |
| User Interface Malfunctions | Software or hardware issues | Restart unit and check for updates |
Frequently Asked Questions
What are the most common errors associated with the YR05802 humidity chamber?
The most common errors include power supply issues, humidity sensor failures, and inconsistent temperature readings. Proper troubleshooting steps can help resolve these issues quickly.
How can I ensure the YR05802 operates optimally?
Regular maintenance, including calibration, cleaning of components, and adherence to operational guidelines, can significantly enhance the performance of the YR05802.
What should I do if I receive an error code?
Check the user manual for specific error codes and corresponding troubleshooting steps. If the issue persists, contact technical support for assistance.
Can I replace parts of the YR05802 myself?
Yes, many components can be replaced by users with basic technical skills. However, ensure you follow the manufacturer’s guidelines to maintain warranty validity.
What is the warranty period for the YR05802?
The warranty period varies by region, but typically it covers one year for parts and labor. Always verify the warranty terms at the time of purchase.
Is the YR05802 suitable for all laboratory environments?
The YR05802 is designed for various laboratory settings; however, ensure your environment meets the necessary specifications for optimal operation, including appropriate temperature and humidity levels.
How do I request a quote for the YR05802 humidity chamber?
You can easily request a quote for the YR05802 on our website. Simply fill out the quote request form, and our team will assist you promptly.
