Customizing the YR06164 Digital Veterinary X-ray Machine: Advanced Configurations and Accessories

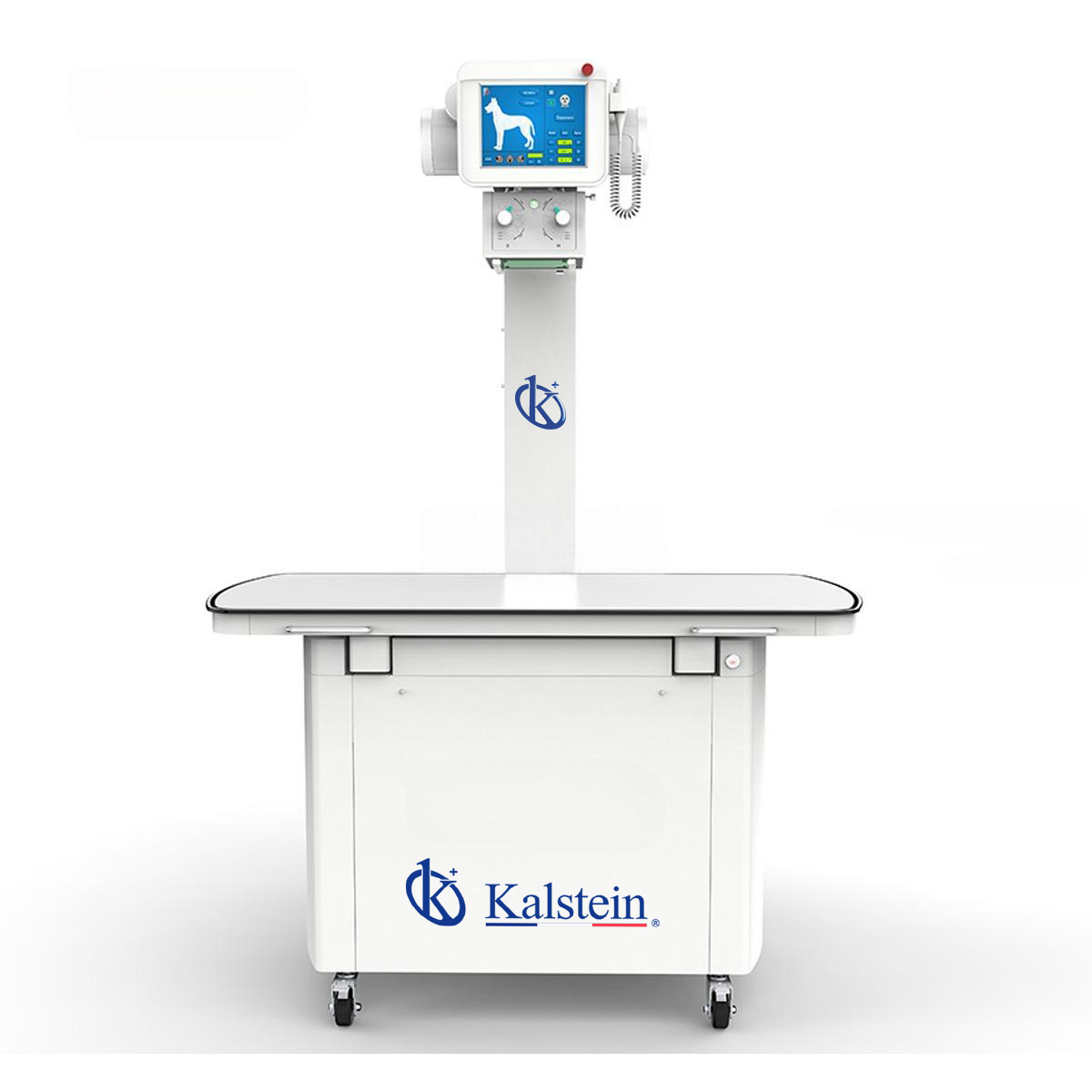

The YR06164 Digital Veterinary X-ray Machine presents a significant advancement in veterinary imaging, offering high-quality radiographic capabilities that support the diagnosis and treatment of animal health issues. This article delves into the customization options available for the YR06164 model, exploring its advanced configurations and optional accessories that enhance its functionality and performance.
Understanding the YR06164: Technical Overview
| Specification | Details |
|---|---|
| Model | YR06164 |
| Maximum Output Power | 32 kW |
| Tube Current Range | 32~400 mA |
| Tube Voltage Range | 40 kV~125 kV |
| Loading Time | 10~5000 ms |
| mAs Range | 0.32~400 mAs |
| Input Voltage Range | AC 220V±22V |
| Max Tube Voltage | 120 kV |
| Focus | Small focus: 1.0 mm, Large focus: 2.0 mm |
| Anode Speed | 2800 r/min |
| CPU | >= 2.8 GHz |
| Memory | 4 GB |
| Disk Capacity | 500 GB |
| Medical LCD | 19” LCD |
Customization Options for the YR06164
The YR06164 is designed to be highly customizable, accommodating various veterinary practices and requirements. Here are some of the customization options and configurations available:
1. Optional Accessories
- Collimator: Enhances the precision of the X-ray beam, reducing scatter and improving image quality.
- Animal Table: Designed for comfort and stability during procedures, adjustable for different animal sizes.
- Flat Panel Detector: Provides high-resolution imaging, allowing for quicker diagnosis.
- Workstation Computer: Comes with imaging software tailored for veterinary needs, enhancing workflow and efficiency.
2. Advanced Operating Modes
The YR06164 features advanced operational settings that allow for optimized performance based on specific veterinary applications:
- High-Speed Mode: Ideal for capturing moving images of animals in real-time.
- Low-Dose Mode: Reduces radiation exposure while maintaining image quality, crucial for sensitive patients.
- Custom Protocols: Users can set specific exposure parameters based on different animal species and sizes.
3. Software Upgrades
Regular software updates enhance functionality, offering new features and improvements:
- Image Analysis Tools: Advanced algorithms for better image clarity and diagnostic accuracy.
- Data Management Systems: Streamline patient record keeping and image storage.
- Remote Access Capabilities: Allow for telemedicine applications, enhancing patient care.
Site Requirements for Optimal Performance
Before installation, ensure that your veterinary facility meets specific site requirements for the YR06164 to function optimally:
- Electrical Supply: A stable AC 220V±22V outlet is necessary.
- Space: Adequate space for the machine and operator with at least 3 feet of clearance around the machine.
- Ventilation: Ensure proper airflow to prevent overheating during operations.
Frequently Asked Questions
What types of optional accessories are available for the YR06164?
The YR06164 supports various optional accessories such as collimators, animal tables, flat panel detectors, and dedicated workstation computers that enhance its functionality.
How can I customize the settings of the YR06164 for different animal types?
The YR06164 allows users to set custom protocols for different animal species and sizes, ensuring that the X-ray settings are optimized for each unique case.
What are the advanced operating modes available on the YR06164?
The YR06164 features high-speed mode for capturing moving images and low-dose mode for sensitive patients, ensuring flexibility in clinical settings.
Is there a specific electrical requirement for the YR06164?
Yes, the YR06164 requires a stable AC 220V±22V electrical supply to function optimally.
What software upgrades are available for the YR06164?
Software upgrades for the YR06164 include advanced image analysis tools, data management systems, and remote access capabilities that enhance diagnostic efficiency.
Can the YR06164 be used for telemedicine applications?
Yes, the YR06164 supports telemedicine applications through its remote access capabilities, allowing veterinarians to provide care from distant locations.
If you are interested in acquiring the YR06164 Digital Veterinary X-ray Machine and would like to explore its options further, please request a quote on Kalstein Plus.
