Dissolved Oxygen Meters
Dissolved Oxygen (DO) is the measure of the amount of oxygen that is distributed in a system. Measurements are generally taken in water using a DO probe and meter. When performing dissolved oxygen measurements in the laboratory or in the field, it should be considered which type of DO technology is most suitable to employ.
The measurement of dissolved oxygen is essential in fermentation and in cell culture to guarantee optimal conditions for the cell, since low levels of oxygen concentration can affect growth rate, nutrient absorption, cell morphology and synthesis of metabolism; that is equivalent to a decrease in the quality of the final product. This in the field of pharmacology
![Benchtop pH Meter YR01836 (1)](https://kalstein.co.nz/wp-content/uploads/2023/05/Benchtop-pH-Meter-YR01836-1-e1685541297273-350x340.jpg)
Types of Dissolved Oxygen Meters a Laboratory May Need
![lrg_YR01826.jpg](https://kalstein.co.nz/wp-content/uploads/2023/05/lrg_YR01826-250x250.jpg)
Benchtop Dissolved Oxygen Meter YR01832
Professional benchtop dissolved oxygen meter, 7 inch TFT display, stores up to 1000 data sets, setup menu...
![lrg_YR01826](https://kalstein.co.nz/wp-content/uploads/2023/05/lrg_YR01826-250x250.jpg)
Benchtop Dissolved Oxygen Meter YR01833
Precision laboratory dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 9 options, accuracy: 0.2mg/L....
![lrg_YR01826.jpg](https://kalstein.co.nz/wp-content/uploads/2023/05/lrg_YR01826-250x250.jpg)
Benchtop Dissolved Oxygen Meter YR01834
Economical benchtop dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 6 options. The meter...
![DNP-9052-DNP-9052-DNP-9162-YR02050-YR02051-YR02052-2-15.jpg](https://kalstein.co.nz/wp-content/uploads/2023/05/DNP-9052-DNP-9052-DNP-9162-YR02050-YR02051-YR02052-2-15-250x250.jpg)
YR01840 Online Dissolved Oxygen Controller
Economy online dissolved oxygen controller, 1 or 2 points calibration, 4 to 20mA outputs. The meter is suitable...
Our Best Selling Dissolved Oxygen Meters
PH Mode:
• Multiparameter water quality meter is equipped with a large backlit LCD display.
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and offset.
ORP Mode:
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable ORP measurements.
Ion Concentration Mode:
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Direct ion concentration readout simplifies the measurement process.
Model | YR01835 |
pH | |
Range | -2.000 to 20.000pH |
Resolution | 0.001, 0.01, 0.1pH, selectable |
Accuracy | ±0.002pH |
Calibration Points | 1 to 5 points |
pH Buffer Options | USA, NIST, DIN, 2 custom buffers |
ORP | |
Range | ±1999.9mV |
Resolution | 0.1, 1mV, selectable |
Accuracy | ±0.2mV |
Calibration Points | 1 point |
Measurement Modes | Relative or absolute mV |
Ion Concentration | |
Range | 0.001 to 19999 (deponding on the range of ISE) |
Resolution | 0.001, 0.01, 0.1, 1 |
Accuracy | ±0.5% F.S. (monovalent), ±1% F.S. (divalent) |
Calibration Points | 2 to 5 points |
Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 |
Measurement Units | ppm, mg/L, mol/L, mmol/L |
Conductivity | |
Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
Resolution | 0.001, 0.01, 0.1, 1 |
Accuracy | ±0.5% F.S. |
Calibration Points | 1 to 5 points |
Calibration Solutions | 10µS, 84µS, 1413µS, 12.88mS, 111.8mS |
Temperature Coefficient | Linear (0.0 to 10.0%/°C), pure water |
Reference Temperature | 20/25°C |
Cell Constant | K=0.1, 1, 10 or custom |
TDS | |
Range | 0.00 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt |
Resolution | 0.01, 0.1, 1 |
Accuracy | ±1% F.S. |
TDS Factor | 0.1 to 1.0 (default 0.5) |
Salinity | |
Range | 0.00 to 80.00ppt, 0.00 to 42.00psu |
Resolution | 0.01 |
Accuracy | ±1% F.S. |
Resistivity | |
Range | 0.00 to 20.00MΩ |
Resolution | 0.01 |
Accuracy | ±1% F.S. |
Dissolved Oxygen | |
DO Range | 0.00 to 20.00mg/L |
Resolution | 0.01, 0.1mg/L, selectable |
Accuracy | ±0.2mg/L |
% Saturation of Oxygen | 0.0 to 200.0% |
Resolution | 0.1, 1%, selectable |
Accuracy | ±2.0% |
Calibration Points | 1 or 2 points |
Pressure Correction | 60.0 to 112.5kPa/450 to 850mmHg, manual |
Salinity Correction | 0.0 to 50.0g/L, manual |
Temperature | |
Range | 0 to 105°C/32 to 221°F |
Resolution | 0.1°C/0.1°F |
Accuracy | ±0.5°C/±0.9°F |
Offset Calibration | 1 point |
Calibration Range | Reading ±10°C |
General Specifications | |
Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic |
Stability Criteria | Low or high |
Calibration Due Alarm | 1 to 31 days or off |
Memory | Stores up to 500 data sets |
Output | USB communication interface |
Connector | BNC, 6-pin nimi-DIN, 3.5mm jack socket |
Display | Custom LCD (125×100mm) |
Power | DC5V, using AC adapter, 220V/50Hz |
Dimensions | 210(L)×188(W)×60(H)mm |
Weight | 1.5kg |
![DNP-9052-DNP-9052-DNP-9162-YR02050-YR02051-YR02052-2-16.jpg](https://kalstein.co.nz/wp-content/uploads/2023/05/DNP-9052-DNP-9052-DNP-9162-YR02050-YR02051-YR02052-2-16-350x350.jpg)
Dissolved Oxygen Meters for your Laboratory
![Worker checking archived electronic components in nitrogen atmosphere in clean room laboratory](https://kalstein.co.nz/wp-content/uploads/2022/11/worker-checking-archived-electronic-components-in-2022-03-08-00-22-06-utc-1-300x300.jpeg)
How is an oxygen meter used?
An oxygen meter is a laboratory equipment that is used to determine the amount of dissolved oxygen in liquids ...
![People working in team in the laboratory](https://kalstein.co.nz/wp-content/uploads/2022/11/people-working-in-team-in-the-laboratory-2022-01-12-04-33-20-utc-300x300.jpg)
Dissolved oxygen, how is it measured?
Dissolved oxygen is the amount of oxygen dissolved in water, commonly recorded as DO, and expressed ...
![Scientist examining jars in lab](https://kalstein.co.nz/wp-content/uploads/2022/11/scientist-examining-jars-in-lab-2022-03-04-01-41-13-utc-300x300.jpg)
Methods for measuring dissolved oxygen
Dissolved Oxygen (DO) is the measure of the amount of oxygen that is distributed in a system. Measurements ...
![Scientists working in team in the laboratory](https://kalstein.co.nz/wp-content/uploads/2022/11/scientists-working-in-team-in-the-laboratory-2022-01-12-04-33-20-utc-300x300.jpg)
Oxygen meter: How is it used?
The oxygen meter is a device for measuring and determining oxygen in liquids and in air. With the oxygen meter you can quickly analyze your water...
Dissolved Oxygen meters models on sale
-
Portable Conductivity/DO Meter YR06382
-
Benchtop DO / BOD / OUR / SOUR Meter YR01831
-

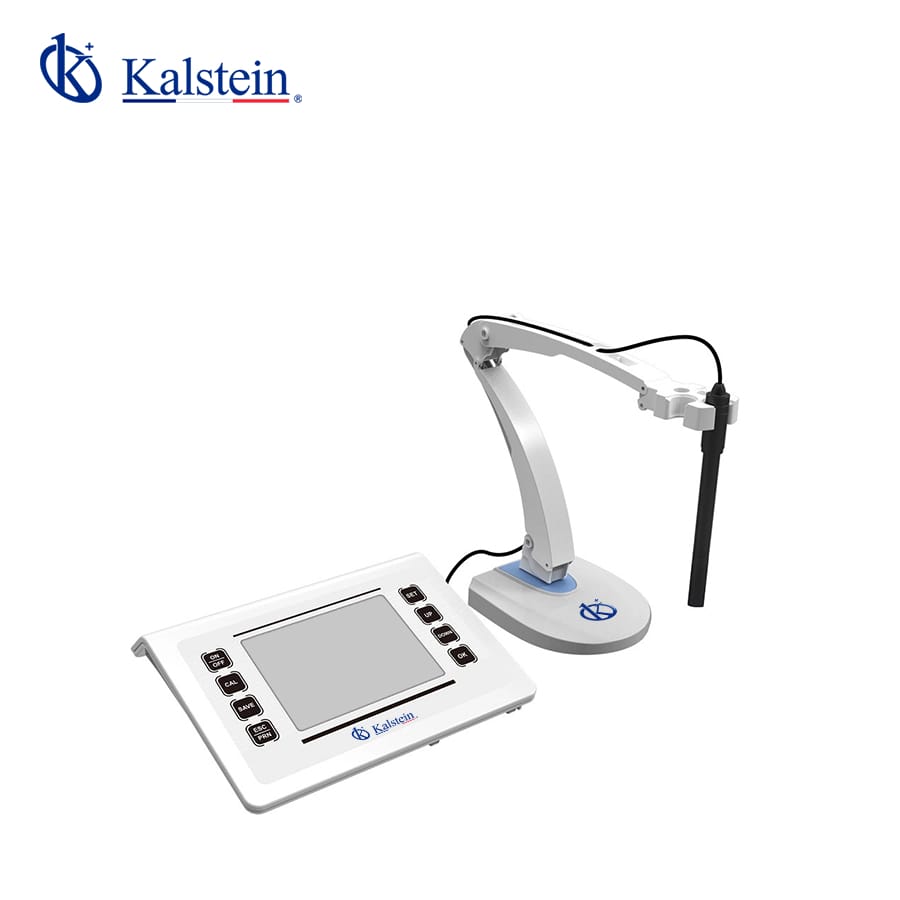

YR01835 Benchtop pH / Ion / Conductivity / Dissolved Oxygen Meter
-
Benchtop Dissolved Oxygen Meter YR01834
-

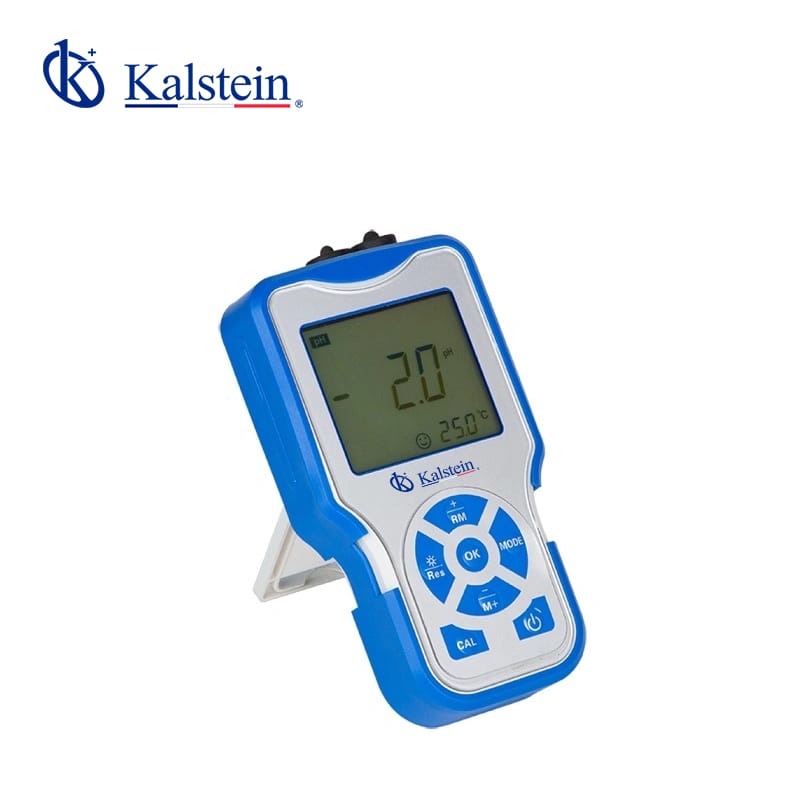

Portable Dissolved Oxygen Meter YR06380
-
Benchtop Dissolved Oxygen Meter YR01833
-

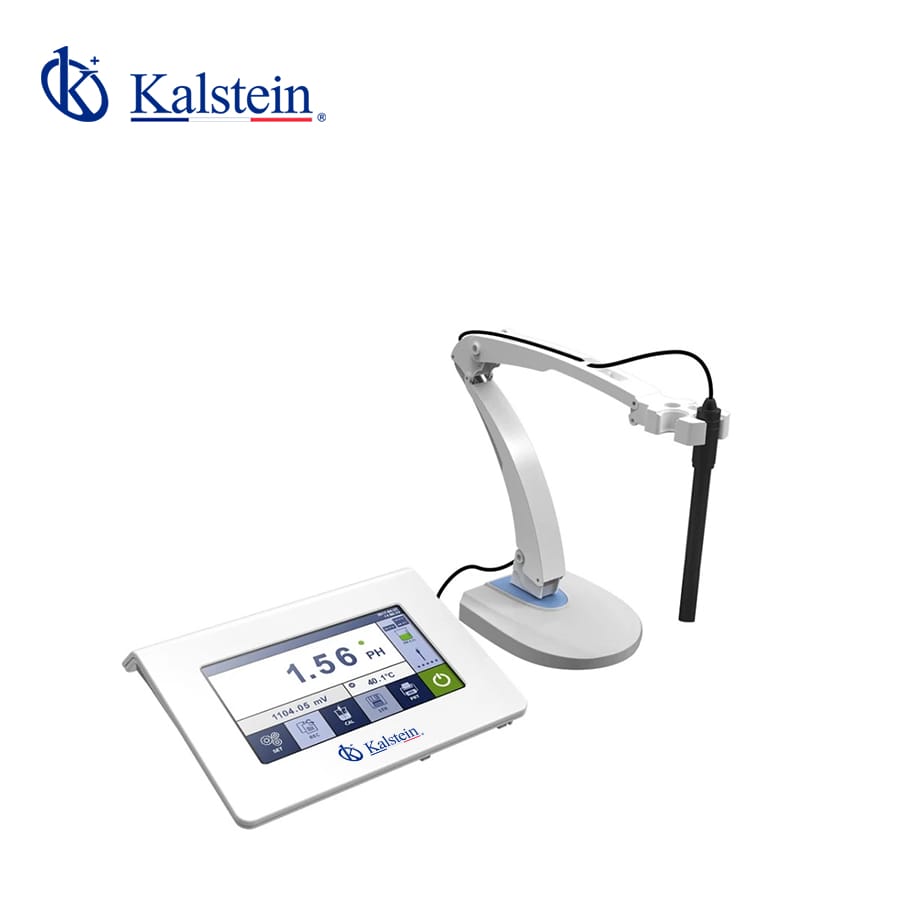

YR01840 Online Dissolved Oxygen Controller
-
Benchtop Ph/DO Meter YR06383
Guides to becoming an expert in Dissolved Oxygen Meters
Dissolved Oxygen: How to Measure It Accurately?
Dissolved Oxygen (DO) is the gaseous oxygen that is dissolved in an aqueous solution, it is also defined as the measure ...
Dissolved Oxygen Meter: How it works? - Laboratory
Let’s talk about dissolved oxygen (DO); is the amount of gaseous oxygen that is dissolved in water, all aquatic life depends...

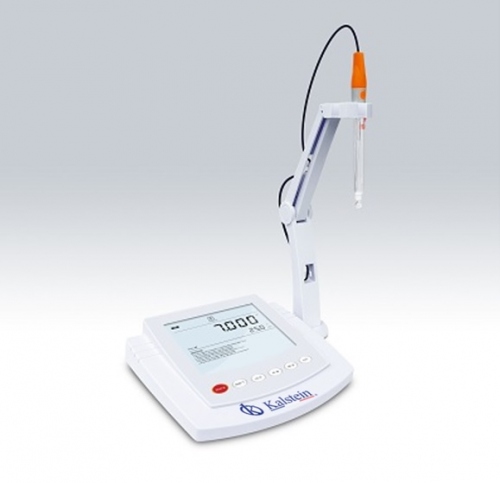

Dissolved Oxygen Meter: How should it be used?
Oxygen meters are devices that use the amount of oxygen that is dissolved in or transported by a fluid, that is...

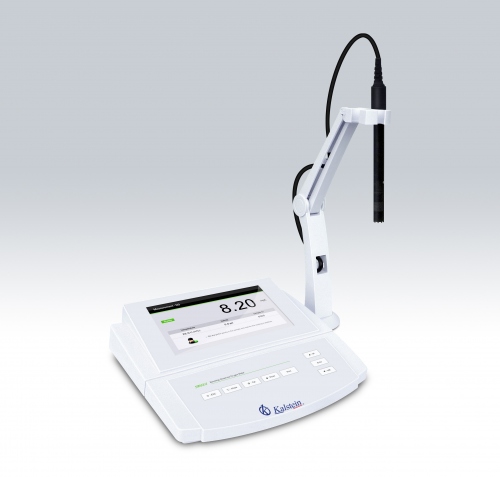

The Dissolved Oxygen Meter to promote the development of aquaculture activity
Dissolved oxygen meters are equipment that meets the trend of calculating the state of wastewater, computed and recorded in percentages by appropriate sensors with 100% legal technology...
![15x16,03 cm (1)](https://kalstein.co.nz/wp-content/uploads/2023/05/15x1603-cm-1-80x91.png)
Frequently Asked Questions about Dissolved Oxygen Meters
How to know the prices of Dissolved Oxygen Meters?
To know the price of Dissolved Oxygen Meters we invite you to send us an email with your request through the contact form..
What are the delivery times of Dissolved Oxygen Meters?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Dissolved Oxygen Meters?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
