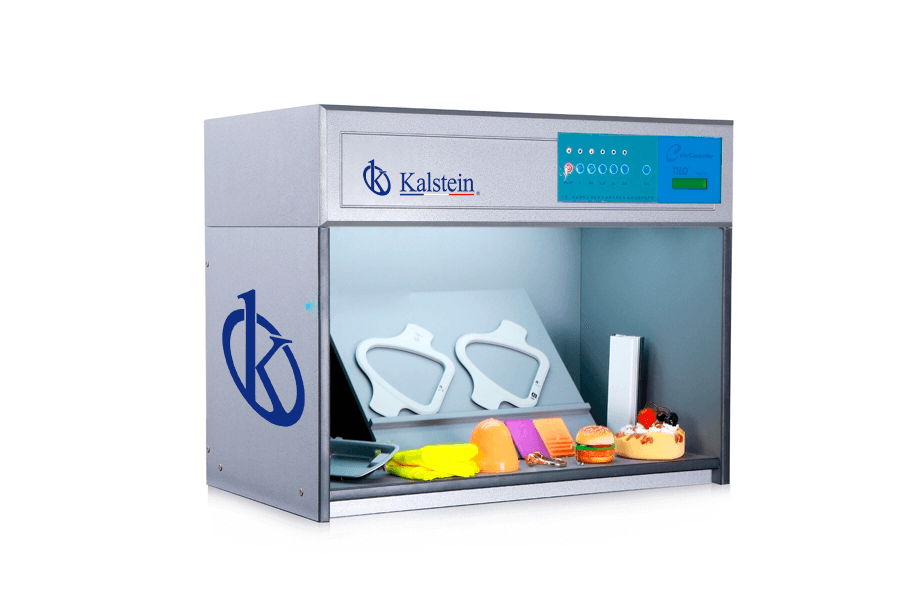

Environmental Conditions and Installation Requirements for the YR05524 Color Light Box
The YR05524 Color Light Box is designed for precise color testing and evaluation across various industries. Understanding the environmental conditions and installation requirements is crucial to ensure the device operates optimally, providing accurate color assessments in settings ranging from graphic arts to textiles. This article delves deep into the specific installation and environmental considerations for the YR05524, ensuring that users can maximize its capabilities.
Technical Specifications of YR05524 Color Light Box
| Specification | Details |
|---|---|
| Model | YR05524 |
| Light Source | D65, TL84, UV, F |
| Dimensions (W x D x H) | 710 x 405 x 570 mm |
| Interior Size (W x D x H) | 680 x 385 x 355 mm |
| Voltage | 220V |
| Weight | 28 kg |
| Power Consumption | Low energy consumption with minimal heat generation |
Optimal Environmental Conditions for YR05524
The YR05524 is sensitive to its operating environment. To ensure reliable performance, the following environmental conditions should be maintained:
- Temperature Range: The device should operate within a temperature range of 20°C to 25°C to avoid fluctuations in performance.
- Humidity: Ideal humidity levels should be maintained between 40% and 60% to prevent condensation and damage to electronics.
- Ventilation: Adequate ventilation is necessary to dissipate heat generated during operation, ensuring prolonged use without overheating.
- Vibration and EMI: The YR05524 should be installed in a vibration-free area to avoid inaccurate readings. Ensure minimal electromagnetic interference from other equipment.
Installation Requirements for YR05524
Proper installation of the YR05524 is key to its effective operation. Here are the essential requirements:
- Location: The light box should be positioned away from direct sunlight and reflective surfaces to ensure consistent lighting conditions.
- Clearances: Maintain at least 15 cm of clearance around the unit to ensure optimal airflow and prevent overheating.
- Power Supply: Ensure the power outlet matches the voltage requirements (220V) and is grounded properly to prevent electrical issues.
- Leveling: Use a spirit level to ensure the unit is perfectly level to provide consistent results in measurements.
Common Installation Mistakes and How to Avoid Them
During installation, users may encounter several common pitfalls. Here’s how to avoid them:
- Ignoring the Environment: Failing to consider temperature and humidity can lead to malfunction. Always check conditions before installation.
- Inadequate Ventilation: Ensure that the unit has sufficient space for airflow. Install in a location with good air circulation.
- Improper Power Connection: Double-check voltage compatibility and grounding before powering the unit on.
Environmental Requirements by Application
Different industries require specific environmental setups for the YR05524 to function effectively. Below is a breakdown:
- Graphic Arts: Requires consistent lighting without shadows; avoid areas with heavy machinery.
- Textiles: Maintain humidity levels ideal for fabric testing, specifically when evaluating dye lots.
- Automotive: Should be in controlled environments with minimal dust and stable temperatures for color matching.
Frequently Asked Questions
What are the best placement practices for the YR05524 Color Light Box?
The YR05524 should be placed away from windows and direct sunlight to prevent interference with color assessments. Additionally, ensure there is ample clearance around the unit, at least 15 cm, to allow for proper ventilation.
How does humidity affect the performance of the YR05524?
Humidity can significantly impact the performance of the YR05524. High humidity may lead to condensation inside the device, causing electrical issues and inaccurate readings. Maintaining humidity levels between 40% and 60% is recommended.
What maintenance does the YR05524 require to ensure longevity?
Regular maintenance includes checking and replacing light sources as needed, cleaning the interior to prevent dust accumulation, and verifying that the environmental conditions remain optimal for operation.
Can the YR05524 be used outdoors?
No, the YR05524 is not designed for outdoor use. It should be installed in an indoor environment that is stable in terms of temperature, humidity, and lighting to ensure accurate color assessment.
What should I do if the YR05524 displays inconsistent readings?
If inconsistent readings occur, first check the environmental conditions for any fluctuations. Ensure that the unit is properly leveled and that light sources are correctly functioning. If issues persist, consult the manual for troubleshooting steps or contact technical support.
What are the standard operating procedures for using the YR05524?
The standard operating procedures include confirming that the device is set up in an optimal environment, selecting the appropriate light source for the material being tested, and allowing the unit to warm up briefly before beginning color evaluations.
How can I request a quote for purchasing the YR05524?
To request a quote for the YR05524 Color Light Box, please visit our website or contact our sales team directly for assistance.
