An oxygen meter is a laboratory equipment that is used to determine the amount of dissolved oxygen in liquids this uses a specialized probe that detects oxygen, this probe contains a series of optical fluorescence sensors, galvanic sensors or polarographic sensors. With this device, water can be quickly analyzed by determining the oxygen content dissolved in it
These equipment usually have an integrated temperature sensor that allows automatic temperature compensation, a key element in this measurement. Dissolved oxygen meters generally use two measuring scales: parts per million (ppm); or saturation percentage (%), defined as the percentage of dissolved oxygen in 1 liter of water, relative to the maximum amount of dissolved oxygen that can contain 1 liter of water.
How does an oxygen meter work?
Currently, dissolved oxygen meters work through three measurement principles: galvanic sensor, polarographic sensor and fluorescence method.
- Galvanic sensor: It works through a galvanic sensor that acts as a battery and is able to generate power without external voltage. Galvanic probes have an anode and cathode. Oxygen enters the electrolyte through a membrane, which generates voltage between the anode and the cathode. This voltage difference is used to measure the amount of dissolved oxygen.
- Polarographic sensor: works similarly to galvanic sensors, but require a connection to an external voltage source. It’s based on electrochemical principles. It uses a semi-permeable membrane to separate the platinum cathode, silver anode and electrolyte from the outside. Oxygen diffuses through the membrane in proportion to its partial pressure. The higher the partial oxygen pressure, the more oxygen passes through the membrane. When oxygen continuously penetrates the membrane and enters the cavity, it is reduced in the cathode thus generating a current, and this current will be proportional to the amount of dissolved oxygen.
- Fluorescence: It uses a fluorescent probe with a built-in light source, which emits blue light and illuminates the fluorescent layer. The fluorescent substance emits a red light after being excited. Because oxygen molecules remove energy through the extinction effect, the time and intensity of the excited red light are related to the oxygen molecules present, so their concentration is now inversely proportional to the intensity of fluorescence.
How should an oxygen meter be used?
An oxygen meter is a fairly reliable and accurate instrument for the determination of dissolved oxygen in any liquid. This equipment works through a probe that captures oxygen, being the very sensitive probe, a series of maintenance processes are recommended to ensure accurate measurements. The electrolyte solution should be kept at the set level and should be replaced periodically.
When using this equipment it is important to avoid air bubbles when the cap is screwed to the probe. It is also recommended that the meter be calibrated periodically in air to reset the values back to 100% (and in zero oxygen solution, where necessary). Following these easy suggestions, the oxygen meter will always remain accurate and reliable.
What do we offer you in Kalstein?

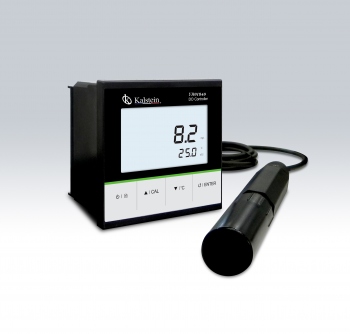

Kalstein is a company MANUFACTURER of laboratory equipment of the highest quality and the best technology at the best prices in the market, so you can make your purchase confidently with us, knowing that you have the service and advice of a company specialized in the field and committed to innovation. This time we present you our Dissolved Oxygen Meter Desktop YR01834. This new equipment has the following features: HERE
- Benchtop’s Dissolved Benchtop oxygen meter is equipped with a backlit LCD screen.
- 1 or 2 point calibration using air-saturated water or zero oxygen solution.
- Barometric salinity and pressure compensations eliminate the measurement error.
- Automatic temperature compensation ensures accurate readings across the range.
- Auto-read function The final measurement point is detected and locked.
- Set-up menu allows you to set the number of calibration points, concentration unit, temperature
- Drive, Auto Power Off, etc.
- The reset function automatically resumes all settings to factory defaults.
For more information we invite you to take a look at: HERE
