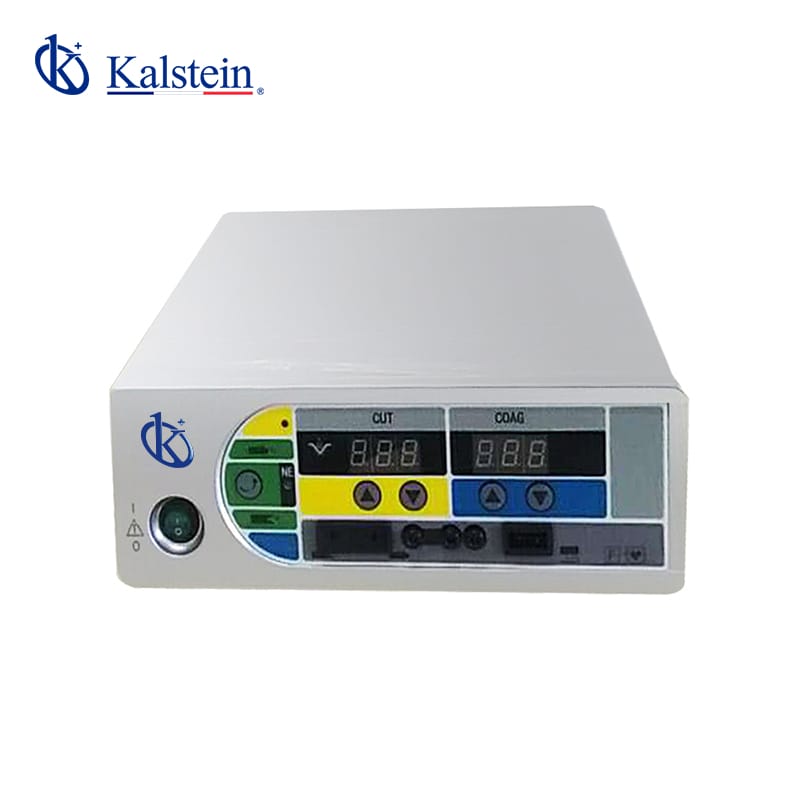

Installation and Commissioning Guide for the YR02144 Electrosurgical Generator
The YR02144 Electrosurgical Generator is designed to deliver versatility and safety in a wide range of electrosurgical procedures, including cutting and coagulation in clinics, offices, and emergency rooms. Proper installation and commissioning are critical to ensure optimal performance and safety. This guide will walk you through the essential steps for setting up your YR02144.
Understanding the YR02144 Electrosurgical Generator
The YR02144 combines cutting-edge technology with user-friendly operation. With a maximum output power of 400 watts, it features seven monopolar and three bipolar outputs. This generator is engineered for smooth cutting across all tissue types, automatic return electrode recognition, program memory functions, and automatic current monitoring. An optional argon module enhances cutting and coagulation efficiency.
Technical Specifications of YR02144
| Model | Output Type | Max Output Power (Watts) | Impedance (Ohms) | Voltage Open Circuit (Vp-p) |
|---|---|---|---|---|
| YR02144 | Monopolar | 400 | 500 | 2300 |
| YR02144 | Bipolar (Standard) | 70 | 200 | 1450 |
Unboxing and Initial Setup
Upon receiving the YR02144 Electrosurgical Generator, carefully unbox the unit and check all components against the packing list. Ensure you have the following:
- Electrosurgical Generator YR02144
- Monopolar and bipolar electrodes
- Return electrode
- Foot switch
- Power cord
- User manual
Next, inspect for any visible damage during shipping. If any damage is found, contact your supplier immediately.
Anchoring and Leveling the Generator
Place the YR02144 on a stable surface, preferably in a location that minimizes exposure to moisture and excessive vibration. Ensure that the unit is leveled to prevent any operational issues. You can use leveling feet if required.
Power-Up Sequence and Calibration
After securing the unit, connect it to a power source that meets the specified voltage and frequency requirements (110/240V AC, 60/50Hz). Turn the generator on using the main power switch. The initial display will show a self-test sequence. Follow these steps:
- Verify that all connections to electrodes and accessories are secure.
- Perform a calibration test by selecting the desired output mode and observing the readings on the display.
- Check if the system recognizes the return electrode automatically.
Common Setup Mistakes to Avoid
To ensure optimal performance, avoid the following common mistakes during installation:
- Improper connection of electrodes, which may lead to equipment failure.
- Neglecting to perform a calibration check before first use.
- Setting up in a location with inadequate ventilation, which can cause overheating.
Safety Considerations During Installation
Safety is paramount when dealing with electrosurgical devices. Follow these precautions:
- Always ensure the unit is powered off during installation and connection of accessories.
- Use personal protective equipment (PPE) where necessary.
- Ensure that the generator is adequately grounded to prevent electrical hazards.
Frequently Asked Questions
What are the main features of the YR02144 Electrosurgical Generator?
The YR02144 Electrosurgical Generator features a maximum output of 400 watts, seven monopolar and three bipolar outputs, automatic return electrode recognition, and optional argon gas module for enhanced cutting and coagulation.
How do I properly maintain the YR02144 Electrosurgical Generator?
Regular maintenance includes cleaning the exterior, checking connections, and ensuring the integrity of the electrodes. Follow the manufacturer's guidelines for servicing intervals.
What types of procedures can the YR02144 be used for?
The YR02144 is versatile and can be utilized in various procedures including general surgery, cardiology, ENT, gastroenterology, gynecology, neurosurgery, plastic surgery, thoracic surgery, and urology.
How do I troubleshoot common error codes on the YR02144?
Refer to the user manual for specific error codes and troubleshooting steps. Common issues may include connection problems or misconfigured settings.
Can the YR02144 be used in outpatient clinics?
Yes, the YR02144 is designed for use in outpatient clinics, providing reliable performance for a variety of electrosurgical procedures.
What is the warranty period for the YR02144 Electrosurgical Generator?
The YR02144 typically comes with a one-year warranty covering any manufacturing defects. Always check the specific warranty terms provided by the supplier.
Where can I request a quote for the YR02144?
You can request a quote for the YR02144 Electrosurgical Generator through our dedicated sales channels at Kalstein.
