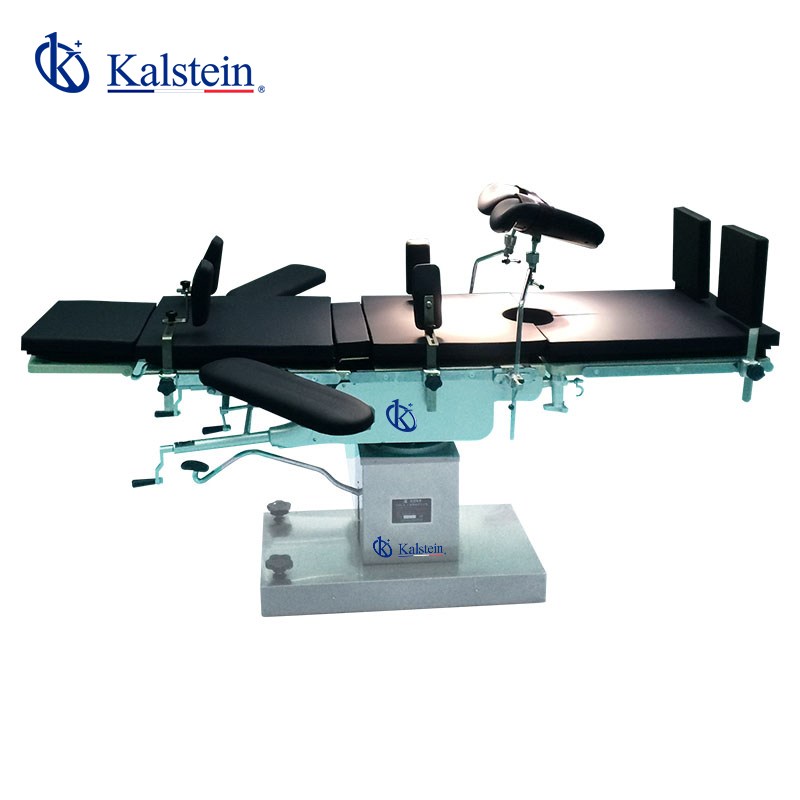

Installation and Commissioning Guide for YR02155 Electrohydraulic Operating Table
The YR02155 Electrohydraulic Operating Table is designed to meet a variety of positioning requirements across different medical disciplines. Proper installation and commissioning are critical to ensure its reliability and performance during surgical procedures. This guide will provide detailed steps and considerations to help you successfully set up the YR02155 model.
Understanding the YR02155 Operating Table
The YR02155 model is equipped with advanced electrohydraulic capabilities that make it suitable for various surgical settings, including otolaryngology, ophthalmology, and endoscopy. The table's versatility allows for precise positioning, which is essential for complex surgical interventions.
Technical Specifications of YR02155
| Feature | Specification |
|---|---|
| Model | YR02155 |
| Control | Remote control with cable, optional foot control |
| Table Length | 2100 mm |
| Table Width | 500 mm (excluding side rails) |
| Table Height | 1040mm / 690mm |
| Trendelenburg / Reverse Trendelenburg | 25° / 25° |
| Side Tilt (Right / Left) | 20° / 20° |
| Head Plate (Up / Down) | 90° / 90° |
| Back Plate (Up / Down) | 80° / 12° |
| Leg Plate (Up / Down / Split) | 10° / 100° / 100° x 2 |
| Flex / Reflex | 192° / 100° |
| Kidney Elevator | 0 ~ 120 mm, external, optional |
| Load Capacity | 300 Kg |
| Input Power | AC 110/220V, 60/50Hz |
Unboxing Checklist
Before installation, ensure that you have received all components of the YR02155:
- Operating Table
- Power supply unit
- User manual
- Remote control
- Optional foot control (if applicable)
- Warranty card
Installation Steps
Follow these steps to properly install the YR02155 Operating Table:
- Location Selection: Choose a stable, flat surface with adequate space for the table's dimensions and operations.
- Anchoring the Table: Use the provided mounting hardware to secure the table to the floor if necessary.
- Leveling: Ensure that the table is level in all directions using a leveling tool.
- Power Connections: Connect the power supply unit to the voltage outlet as specified in the manual.
- First-Run Calibration: Follow the user manual to complete the calibration process for the operating table.
- Testing Controls: Test the remote and foot controls to ensure they are functioning correctly.
Common Setup Mistakes
To ensure a smooth installation, avoid the following common mistakes:
- Inadequate space around the table for movement.
- Improper power supply connection leading to malfunction.
- Neglecting to calibrate the table before first use.
Frequently Asked Questions
What are the dimensions of the YR02155 operating table?
The YR02155 operating table measures a length of 2100 mm and a width of 500 mm, excluding side rails. The height can be adjusted between 690 mm and 1040 mm.
How do I troubleshoot power issues with the YR02155?
If the YR02155 does not power on, check the power supply connections, ensure the outlet is functional, and verify the power settings in the user manual.
What is the weight capacity of the YR02155 table?
The YR02155 has an operating load capacity of 300 Kg, making it suitable for a wide range of surgical applications.
Can the YR02155 be used for different types of surgical procedures?
Yes, the YR02155 is versatile and can accommodate various surgical disciplines, including otolaryngology, ophthalmology, and endoscopy.
What is the trendelenburg capability of the YR02155?
The YR02155 operates with a trendelenburg and reverse trendelenburg capability of 25°, allowing for diverse positioning during surgical procedures.
How do I maintain the YR02155 operating table?
Regular maintenance includes checking the battery and power connections, cleaning surfaces, and ensuring all mechanical components are functioning properly as per the maintenance schedule in the user manual.
Where can I request a quote for the YR02155?
You can request a quote through our dedicated channels where we will provide pricing and availability information for the YR02155 operating table.
