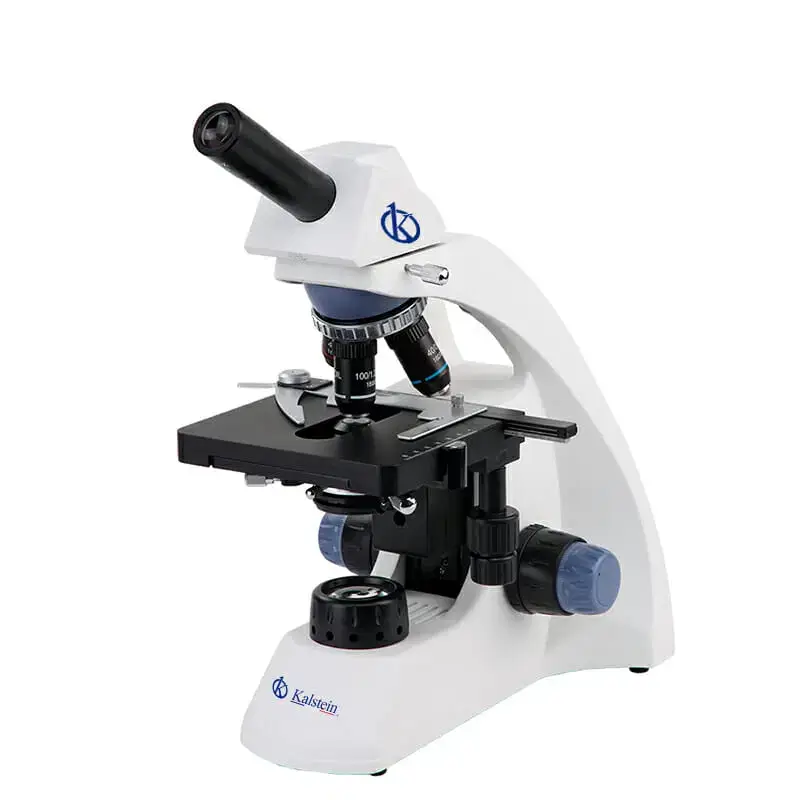

Installation and Commissioning Guide for the YR0242-M Microscope
The YR0242-M microscope is a sophisticated device designed for diverse laboratory applications. This guide provides a comprehensive overview of the steps required for installation and initial setup, ensuring optimal performance and longevity.
Unboxing and Initial Preparation
Before beginning the installation, it is crucial to check the contents included in the YR0242-M package. The unboxing checklist should include:
- YR0242-M Microscope unit
- Power adapter and cable
- Objective lenses (4X, 10X, 40X, 100X)
- Eyepieces (WF10x/18mm)
- Instruction manual
- Warranty card
Once all components are confirmed, proceed to the next steps.
Setting Up the Microscope
Follow these steps to set up the YR0242-M microscope:
- Positioning the Microscope: Choose a stable surface with sufficient space to accommodate the microscope and additional accessories. Ensure the surface is level.
- Assembling the Microscope: Attach the eyepiece and objective lenses to the appropriate slots. Ensure they are securely fitted.
- Connecting the Power Supply: Plug the power adapter into a suitable AC outlet (110V-240V) and connect it to the microscope.
- Powering Up: Turn on the microscope using the main power switch located at the back of the unit.
Check that all components are functioning correctly before proceeding.
Calibration and First Run
Calibration is critical for ensuring accurate readings. Here’s how to perform the initial calibration:
- Focusing Adjustments: Using the coaxial coarse and fine focus knobs, adjust the stage height until the specimen is in clear view.
- Light Adjustments: Use the adjustable LED light source and condenser settings to optimize illumination.
- Initial Test: Run a test observation with a standard slide to ensure optimal focus and clarity.
This calibration routine will help establish a baseline for subsequent measurements.
Common Installation Mistakes to Avoid
Be mindful of these frequent mistakes when setting up the YR0242-M microscope:
- Improper alignment of eyepiece and objective lenses can lead to distorted images.
- Neglecting to perform a test run may result in calibration issues during actual usage.
- Forgetting to secure the microscope on a stable surface can lead to unnecessary vibrations and measurement errors.
Technical Specifications of the YR0242-M
| Specification | Details |
|---|---|
| Model | YR0242-M |
| Power Supply Type | AC 110V-240V |
| Light Source Type | Halogen 6V20W or optional LED |
| Condenser N.A. | 1.25 |
| Stage Size | 132 x 142 mm |
| Working Stage Movement | 75 x 50 mm |
| Standard Magnification | 40x-1000x |
Frequently Asked Questions
What are the main features of the YR0242-M microscope?
The YR0242-M microscope features multiple head configurations, including monocular, binocular, and trinocular options. It has a quadruple nosepiece, high-bright LED illumination, and a mechanical stage with a movement range of 75x50mm.
How do I maintain the YR0242-M microscope?
Regular maintenance involves cleaning the lenses with lens paper, ensuring the light source is functioning, and checking the mechanical stage for debris that may hinder movement.
Can I use the YR0242-M for educational purposes?
Yes, the YR0242-M is ideal for educational settings, providing clear imaging and ease of use for students learning microscopy techniques.
What should I do if the microscope does not power on?
First, check the power connection to ensure it is plugged in. If the issue persists, inspect the power adapter and ensure it matches the required specifications.
Is there a warranty for the YR0242-M microscope?
Yes, the YR0242-M comes with a warranty that covers manufacturing defects and provides a support channel for troubleshooting and repairs.
How do I adjust the light intensity on the YR0242-M microscope?
The YR0242-M features an adjustable brightness knob that allows you to modify the light intensity according to your observation needs.
Where can I find replacements for the YR0242-M parts?
Replacement parts and accessories for the YR0242-M can be sourced from authorized distributors or directly through the manufacturer’s customer support channels.
