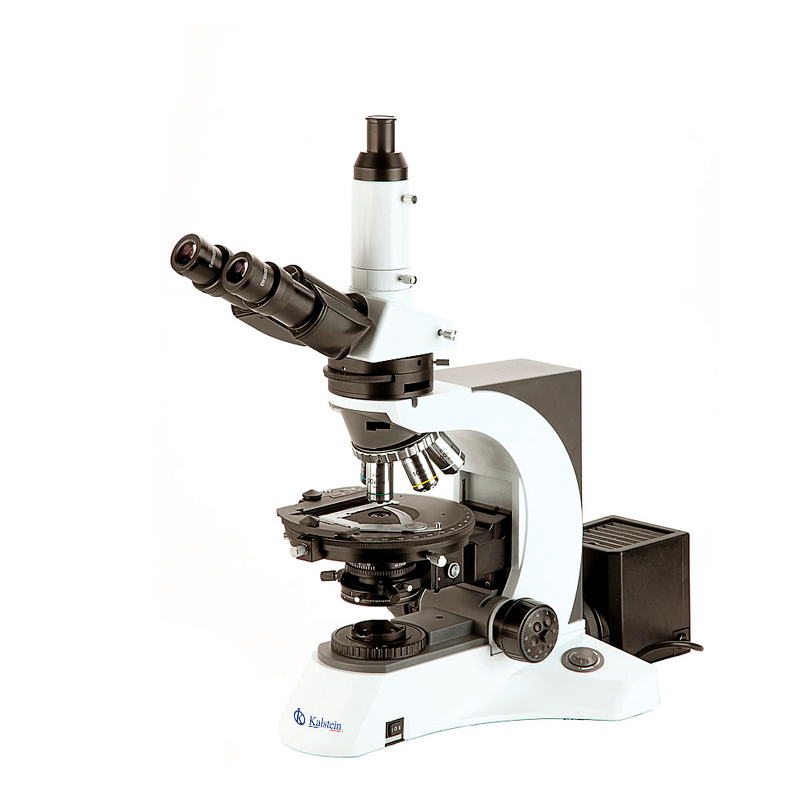

Installation and Commissioning Guide for the YR0261 Trinocular Microscope
The YR0261 Trinocular Microscope is an advanced laboratory instrument designed for various applications, including clinical and industrial uses. Proper installation and commissioning are crucial to ensure optimal performance and longevity of the equipment. This guide will detail the necessary steps for setting up and configuring the YR0261 microscope.
Unboxing and Initial Setup
When first receiving the YR0261 microscope, it is essential to carefully unbox the equipment and check all components. The unboxing checklist should include:
- YR0261 Microscope unit
- Power cable
- Objective lenses (4x, 10x, 40x, 100x)
- Neutral filters (ND25, ND26)
- Photo adapter
- Instruction manual
Ensure that no components are damaged or missing before proceeding.
Anchoring and Leveling the Microscope
After unboxing, place the YR0261 on a stable laboratory bench. Level the microscope using a leveling tool, ensuring that the base is even. This is crucial for accurate measurements and optimal viewing conditions. Adjust the leveling feet until the instrument sits flat on the surface.
Power-Up Sequence
To power up the YR0261, follow the sequence below:
- Connect the power cable to the microscope and to a suitable power outlet.
- Ensure that the power switch is in the off position before plugging in.
- Turn on the power switch located on the microscope base.
- Allow the halogen lamp to warm up for optimal brightness.
Calibration and First-Run Setup
After powering on the microscope, the next step is calibration:
- Adjust the diopter settings to match your vision.
- Use the coarse and fine focus knobs to bring a specimen into clear view.
- Test each objective lens to ensure proper alignment and functionality.
- Perform necessary adjustments to the light intensity for optimal viewing conditions.
Common setup mistakes include not leveling the microscope properly or neglecting to warm up the lamp. Be cautious to avoid these errors.
Technical Specifications of the YR0261
| Component | Description |
|---|---|
| Model | YR0261 |
| Objective Types | Infinity Plan Objectives 4x, 10x, 40x, 100x |
| Stage Diameter | 170 mm, adjustable center |
| Light Source | Halogen 24V 100W, adjustable brightness |
| Optical System | Infinity Optical System |
| Head Type | Trinocular Seidentopf, 30° inclined |
Common Issues During Installation
While setting up the YR0261 microscope, users might encounter several common issues:
- Microscope not powering on: Check the power connections and ensure the outlet is functional.
- Blurry images: Adjust the focus and ensure correct alignment of the objective lenses.
- Light intensity issues: Verify the bulb’s condition and adjust brightness settings.
Frequently Asked Questions
What type of power supply is required for the YR0261?
The YR0261 requires a standard AC power supply, ideally with a voltage range suitable to support the 24V halogen bulb.
How do I maintain the YR0261 microscope?
Regular maintenance includes cleaning optical surfaces with appropriate lens tissue, checking alignment, and replacing bulbs as needed to ensure optimal performance.
What are the recommended environmental conditions for the YR0261?
The YR0261 operates best in a controlled laboratory environment, ideally between 20°C to 25°C with stable humidity levels.
Can I use different objectives on the YR0261?
Yes, the YR0261 is compatible with various Infinity Plan objectives, allowing flexibility in your microscopy work.
What accessories are recommended for the YR0261 microscope?
Recommended accessories include different objective lenses, a photo adapter, and various neutral density filters to enhance your microscopy experience.
