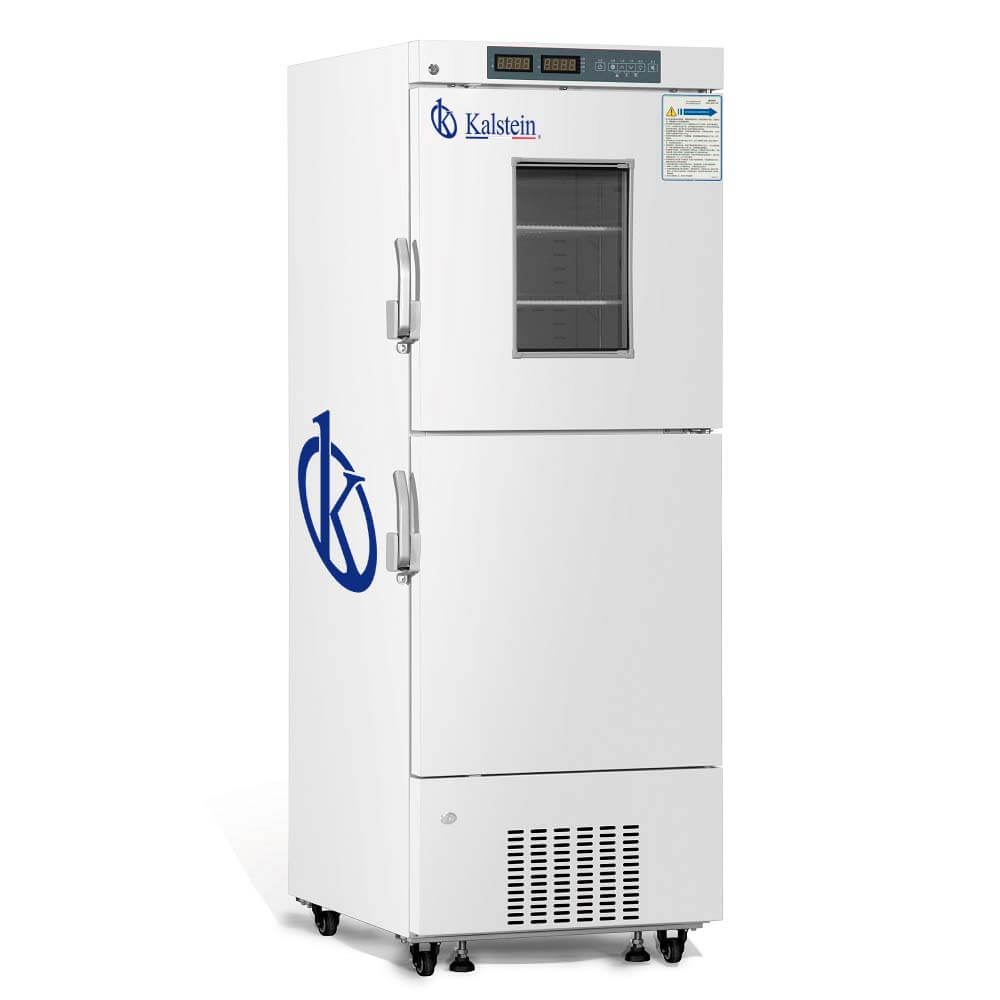

Complete Installation and Commissioning Guide for the YR05320 Free Standing Deep Freezer
The YR05320 Free Standing Deep Freezer is designed for optimal storage of plasma and other biological materials. Proper installation and commissioning are crucial for ensuring its performance and longevity. This guide provides a step-by-step process tailored specifically for the YR05320 model, offering practical insights for operators.
Overview of the YR05320 Model
The YR05320 is a 368L Free Standing Deep Freezer, equipped with dual cooling systems for superior temperature management. It is widely used in research institutions and clinical sites for storing vaccines, blood plasma, and various biological substances. Understanding the specifications and operational features of the YR05320 is essential for effective installation.
Technical Specifications
| Parameter | Model | YR05320 |
| Cooling Method | Direct cooling | |
| Defrosting Method | Manual | |
| Refrigerant | R600a and R290 | |
| Energy Consumption (kWh/24h) | 4.15 | |
| Noise Level (dB) | 50 | |
| Ambient Temperature (℃) | 10~32 | |
| Temperature Range (℃) | F: -20℃ to -40℃; R: 2℃ to 8℃ | |
Unboxing and Initial Setup
Upon receiving the YR05320, ensure to check the package for any damage during shipping. The unboxing process involves carefully removing the freezer from its packaging and verifying that all components are included.
Items to check during unboxing:
- YR05320 Deep Freezer unit
- User manual
- Power cord
- Warranty card
Site Preparation and Installation Requirements
Before installation, confirm that the site meets the specific requirements for the YR05320. Here is a checklist to ensure proper site preparation:
| Requirement | Description |
|---|---|
| Power Supply | Ensure the voltage is 220V/50Hz as required by the YR05320. |
| Space | Provide sufficient clearance around the unit for ventilation—at least 10 cm on each side. |
| Temperature Control | Maintain ambient temperature between 10℃ to 32℃ to ensure optimal operation. |
| Leveling | The unit must be leveled to prevent operational issues and ensure proper door sealing. |
Power-Up Sequence and First Calibration
Once installed, follow these steps for the power-up sequence:
- Plug in the power cord to a suitable outlet.
- Turn on the power button located at the front control panel.
- Allow the unit to cool down to the desired temperature set in the control panel.
- Perform a temperature calibration, if necessary, using the built-in features to verify accuracy.
Common Setup Mistakes and Troubleshooting
If the YR05320 does not operate as expected after setup, consider the following common mistakes:
- Improper leveling leading to door sealing issues.
- Inadequate ambient temperature outside specified range.
- Incorrect voltage supply.
- Failure to allow enough clearance for ventilation.
Address these issues by checking the setup against the preparation checklist and adjusting as necessary.
Frequently Asked Questions
What is the ideal temperature range for the YR05320 deep freezer?
The ideal temperature range for the YR05320 is between -20℃ to -40℃ for the freezer compartment and 2℃ to 8℃ for the refrigerator compartment.
How often should I perform maintenance on the YR05320?
Regular maintenance should be performed every six months, including cleaning the condenser coils and checking the door seals for proper sealing.
What refrigerants are used in the YR05320 model?
The YR05320 utilizes R600a and R290 refrigerants, which are environmentally friendly options.
How do I troubleshoot if the freezer is not cooling?
If the YR05320 is not cooling, check the power supply, ensure the unit is level, and verify that the temperature settings are correctly adjusted.
What are the dimensions of the YR05320?
The dimensions of the YR05320 are 720 mm in width, 830 mm in depth, and 1870 mm in height.
Can I store liquid nitrogen in the YR05320?
Storing liquid nitrogen is not recommended as it can damage the unit and compromise safety.
Are there any specific site requirements for installation?
Yes, the installation site should have a stable power supply, adequate ventilation space, and must maintain an ambient temperature of 10℃ to 32℃.
