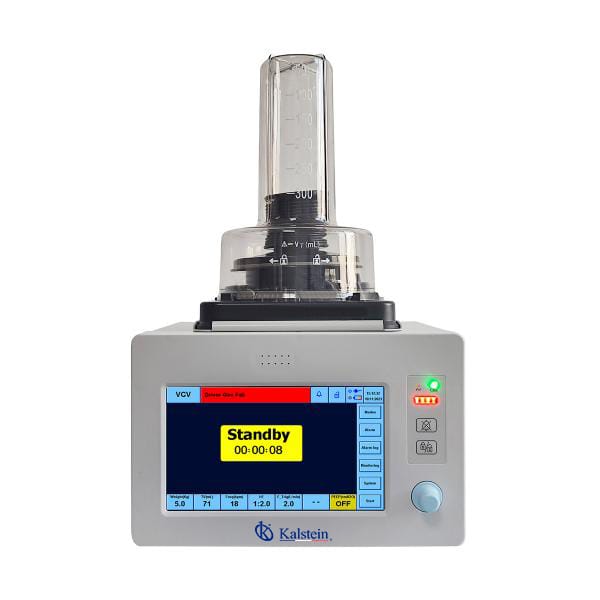

Installation and Commissioning Guide for the YR06104 Turbo-driven Veterinary Anesthesia Ventilator
The YR06104 Turbo-driven Veterinary Anesthesia Ventilator is a state-of-the-art device designed to cater to the needs of various surgical scenarios involving animals. It is extensively utilized in pet hospitals, animal clinics, research institutions, and training facilities. This guide will provide a detailed installation and commissioning process to ensure that operators can maximize the efficiency and effectiveness of this critical equipment.
Unboxing and Initial Setup of the YR06104
Before commencing with the installation, it is essential to perform an unboxing checklist to ensure that all necessary components are present and undamaged. The following items should be included:
- YR06104 Ventilator unit
- User manual
- Power adapter and cord
- Oxygen concentrator
- Calibration tools
- Carrying case
Carefully inspect the equipment for any physical damage. If any issues are noted, contact the supplier immediately. Once verified, proceed with the following steps:
Anchoring and Leveling the Unit
Position the YR06104 on a stable surface that is both level and free from vibrations. Proper leveling is crucial for accurate readings and optimal performance. Use a leveling tool to ensure that the unit is positioned correctly. If necessary, adjust the feet of the ventilator to compensate for uneven surfaces.
Power-Up Sequence
To power up the YR06104, follow these steps:
- Connect the power adapter to the ventilator.
- Plug the other end into a standard electrical outlet (ensure the voltage matches specifications).
- Switch on the power button located on the front panel.
- Wait for the system to perform initial self-checks. This may take a few moments.
If the unit does not power on, check the power connection and ensure the outlet is functioning.
Calibration and Configuration
After powering up, the YR06104 requires calibration to ensure accurate measurements. Follow the instructions in the user manual for first-run calibration. During this process, the operator needs to:
- Set the weight of the animal for ventilation parameter adjustments.
- Configure the ventilatory modes such as VCV, PCV, and SPONT based on clinical needs.
- Adjust the tidal volume, respiratory rate, and inhaled oxygen concentration according to the requirements.
Common setup mistakes include entering incorrect animal weight and failing to select the appropriate mode. Double-check these settings before proceeding.
Technical Specifications of the YR06104
| Specification | Value |
|---|---|
| Model | YR06104 |
| Tidal Volume (TV) | 20-1500 ml |
| Breathing Rate (Freq) | 1-150 bpm |
| Spontaneous Breathing Rate (Freq_Spont) | 0-150 lpm |
| Ratio of Inhalation and Exhalation (I:E) | 9.9:1-1:9 adjustable |
| Hold Time | 0-50% |
| Flow Trigger Sensitivity (F_Tring) | 0.5-20 L/min, OFF |
| Pressure Trigger Sensitivity (P_Tring) | -1-20 cmH2O, OFF |
| End-Expiratory Pressure | 3-20 cmH2O, OFF |
| SIMV Frequency (Fre_SIMV) | 2-60 bpm |
| Inspiratory Time (T_Insp) | 0.1-12 s |
| Pressure Support (PS) | 0-60 cmH2O |
| Inspiratory Pressure (T_Insp) | 0-60 cmH2O |
| Tidal Volume of Expiratory | 0-2500 ml |
| Tidal Volume of Inspiratory | 0-2500 ml |
| Minute Ventilation (MV) | Display range: 0-99 L/min; Use range: 0-25 L/min |
| Peak Pressure (Ppeak) | 0-80 cmH2O |
| Inhaled Oxygen Concentration (FiO2) | 15-100% |
| Driving Gas Pressure (Press_Drive) | 0-900 kPa |
Frequently Asked Questions
What are the first steps to install the YR06104 Turbo-driven Veterinary Anesthesia Ventilator?
The first steps include unboxing the ventilator, checking for damage, placing it on a stable and level surface, and connecting it to a power source before proceeding with calibration.
How do I calibrate the YR06104 for accurate measurements?
Calibration involves entering the weight of the animal and configuring settings for tidal volume, respiratory rate, and oxygen concentration. Refer to the user manual for precise calibration instructions.
What should I do if the YR06104 does not power on?
If the unit does not power on, ensure the power connection is secure. Check the outlet to confirm it is functional. If the issues persist, consult the technical support team.
Can the YR06104 be used for different animal sizes and types?
Yes, the YR06104 is designed to accommodate various animal sizes by adjusting the tidal volume and other ventilation parameters based on the animal's weight and clinical requirements.
What are the common modes of operation for the YR06104?
The YR06104 operates in multiple modes, including Volume Control Ventilation (VCV), Pressure Control Ventilation (PCV), and Spontaneous modes, allowing flexibility in clinical applications.
What maintenance is required for the YR06104?
Regular maintenance includes cleaning the unit, checking for wear on components, and ensuring that the oxygen concentrator is functioning properly. Consult the manual for detailed maintenance schedules.
Where can I request a quote for the YR06104?
You can request a quote for the YR06104 by contacting our sales department through our inquiry form or customer service channels.
