Installation and Commissioning Guide for the YR06231 Electrohydraulic Operating Table
The YR06231 Electrohydraulic Operating Table is designed to elevate surgical procedures with its advanced features and reliable performance. This installation and commissioning guide provides detailed steps to ensure the effective setup and optimal use of the YR06231. Following this guide will help in achieving the best operational standards, ensuring safety and efficiency in clinical environments.

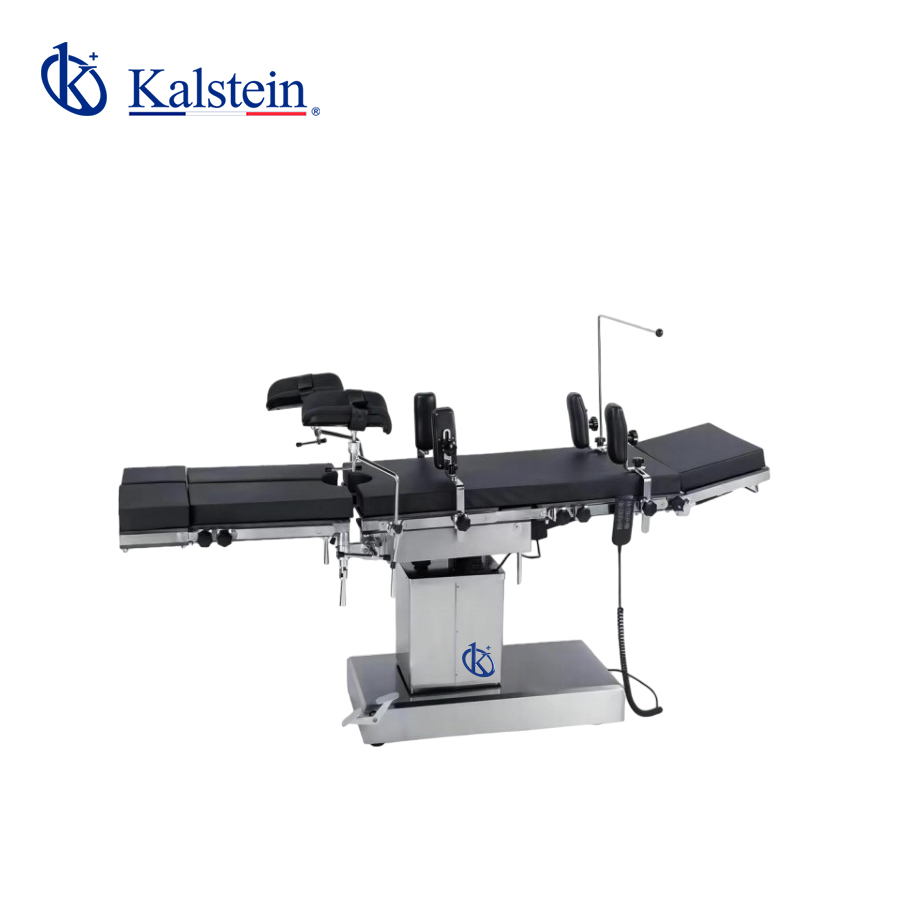

Overview of the YR06231 Operating Table
The YR06231 is an electrohydraulic operating table suited for general operations, featuring a smooth and silent hydraulic system. Its leg section is adjustable using pneumatic springs, making it adaptable to various surgical needs. The table is entirely manufactured from high-quality 304 stainless steel, ensuring durability and easy maintenance.
Technical Specifications of the YR06231
| Specification | Details |
|---|---|
| Model | YR06231 |
| Length/Width | 2100/550 mm |
| Height Adjustment (electric) | 700-1000 mm |
| Trendelenburg (electric) | ±30° |
| Lateral Tilt (electric) | ±20° |
| Back Section (electric) | 75°/-35° |
| Head Board (manual) | 60°/-90° |
| Leg Board (manual) | 15°/-90° |
| Built-in Kidney Elevator (manual) | 0-120 mm |
Unboxing and Setup Checklist
Before beginning the installation of the YR06231, it is crucial to prepare an unboxing and setup checklist to ensure that all components are accounted for and that the installation area is suitable.
- Verify the contents of the package: operating table, manual, hydraulic pump, control panel, and accessories.
- Inspect the equipment for any damage during shipping.
- Choose an appropriate location that meets the required environmental conditions.
- Ensure access to electrical power and necessary utilities.
Installation Steps for the YR06231
Follow the steps below to properly install the YR06231 Electrohydraulic Operating Table:
- Position the Table: Place the YR06231 in the designated area, ensuring that there is ample space around it for operation.
- Level the Table: Use leveling tools to adjust the table to a horizontal position.
- Connect Hydraulic System: Attach the hydraulic hoses to the respective connectors, ensuring all connections are tight and leak-free.
- Electrical Connection: Plug the control panel into a compatible electrical outlet, following the manufacturer's specifications for power requirements.
- Initial Calibration: Power on the table and perform an initial calibration as per the user manual.
- Functional Tests: Conduct functional tests on all adjustable sections—height, tilt, and lateral movements—to verify operational integrity.
Common Installation Mistakes and How to Avoid Them
Ensuring a smooth installation process can greatly impact the performance of the YR06231. Below are common mistakes to avoid:
- Improper Leveling: Always use a level to prevent operational issues.
- Neglecting Power Compatibility: Double-check voltage and frequency settings to match the specifications of the table.
- Inadequate Safety Checks: Make sure all safety features are operational before using the table.
Commissioning the YR06231
Once installed, commissioning ensures that the YR06231 is ready for use.
- Run Initial Diagnostics: Perform a series of diagnostics to check all operational features.
- Familiarize Staff: Ensure that all staff members are trained on operating the table effectively.
- Document Findings: Keep detailed records of the installation and commissioning process for future reference.
Frequently Asked Questions
What are the key features of the YR06231 Electrohydraulic Operating Table?
The YR06231 features a hydraulic system for smooth operation, adjustable height, Trendelenburg and lateral tilt capabilities, and is constructed from high-quality stainless steel for durability.
How do you maintain the YR06231 to ensure longevity?
Regular maintenance includes cleaning the surface, checking hydraulic fluid levels, inspecting electrical connections, and conducting routine functional tests.
What should you do if the YR06231 does not power on?
Check that the table is properly plugged in, inspect for any blown fuses, and ensure that the control panel is functional. If issues persist, consult the troubleshooting section of the manual.
Can the YR06231 be used in various surgical environments?
Yes, the YR06231 is designed for general use and can be employed in various surgical settings thanks to its adjustable features and robust design.
What is the warranty period for the YR06231?
The YR06231 typically comes with a standard warranty of one year, covering manufacturing defects and essential components. Always check the terms of warranty with the supplier.
Where can I find replacement parts for the YR06231?
Replacement parts can be sourced from authorized dealers or directly from the manufacturer. Ensure to refer to the product manual for part numbers and specifications.
