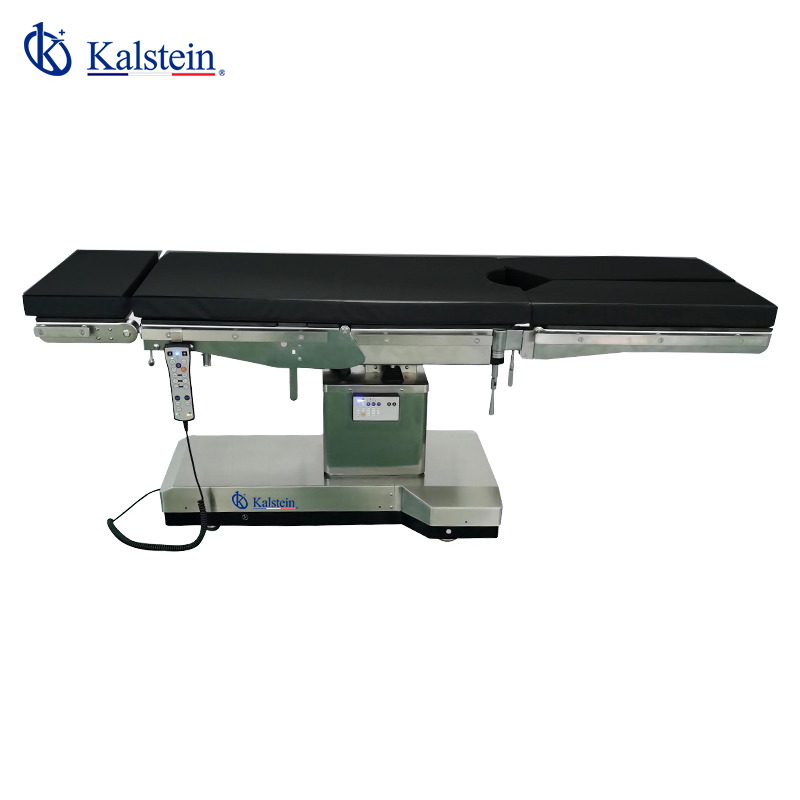

Installation and Commissioning Guide for the YR06234 Electrohydraulic Operating Table
The YR06234 Electrohydraulic Operating Table is engineered to enhance surgical efficiency and patient safety. This guide provides detailed steps for a successful installation and commissioning process, ensuring optimal performance in clinical settings.
Understanding the YR06234 Electrohydraulic Operating Table
The YR06234 model is a state-of-the-art operating table designed for various surgical procedures. Its features—including an electric height adjustment, longitudinal movement, and robust construction—make it an essential tool in modern operating rooms. Before beginning the installation process, familiarize yourself with the specifications and functionalities of the table.
Technical Specifications of the YR06234
| Specification | Details |
|---|---|
| Model | YR06234 |
| Length/Width | 2100mm / 520mm |
| Height Adjustment (Electric) | 700-1050 mm |
| Trendelenburg (Electric) | ±30° |
| Lateral Tilt (Electric) | ±20° |
| Back Section (Electric) | 85° / -40° |
| Head Board (Manual) | 60° / -90° |
| Leg Board (Manual) | 15° / -90° |
| Table Top Longitudinal Moving (Electric) | 300 mm |
| Build-in Kidney Elevator (Manual) | 0-120 mm |
| Flex/Reflex | 220° / 110° |
Unboxing and Initial Setup
Upon receiving the YR06234, follow these steps to ensure a successful unboxing and initial setup:
- Check Packaging: Inspect the package for any visible damage. Ensure all components are present as per the packing list.
- Tools Required: Gather necessary tools such as wrenches, screwdrivers, and levelers for assembly.
- Unboxing: Carefully unpack the operating table, placing it on a flat surface to avoid damage.
Anchoring and Leveling the Table
Ensuring that the YR06234 is properly anchored and leveled is crucial for safe operation:
- Positioning: Place the table in the desired location, ensuring it is close to power outlets for electric connections.
- Leveling: Use a leveling tool to adjust the legs, ensuring that the table is stable and does not wobble.
- Anchoring: If necessary, use appropriate anchors to secure the table to the floor, preventing movement during procedures.
Power-Up Sequence and First-Run Calibration
After anchoring and leveling, follow these steps for the power-up and calibration of the YR06234:
- Power Connection: Connect the table to its power source, ensuring that the voltage and frequency match the specifications.
- Power On: Activate the table using the control panel and check for any error codes on the display.
- Calibration: Perform a calibration routine as specified in the user manual to ensure accurate height adjustments and movements.
Setting Up Control Features
The YR06234 comes with a dual control system. Set up both the manual and column controls:
- Manual Control: Familiarize yourself with the manual control operations including height adjustments, Trendelenburg positioning, and lateral tilting.
- Column Control: Ensure the column control functions correctly, allowing for quick adjustments during surgery.
- Positioning Lock: Test the position lock feature to verify that it holds the table securely in place during procedures.
Common Setup Mistakes to Avoid
Avoid the following common pitfalls during installation and setup:
- Improper Leveling: Failing to level the table can lead to instability during surgery.
- Ignoring Calibration: Skipping the calibration step can result in inaccurate adjustments, compromising patient safety.
- Overlooking Safety Features: Ensure all safety features are correctly set up before usage to prevent accidents.
Frequently Asked Questions
What are the key features of the YR06234 Electrohydraulic Operating Table?
The YR06234 features electric height adjustment, longitudinal movement, and manual controls for the head and leg sections, designed for diverse surgical requirements.
How do I ensure the YR06234 is properly calibrated?
Calibration of the YR06234 involves following the manufacturer's specified procedures to adjust the height and ensure accurate positioning based on surgical needs.
What maintenance is required for the YR06234 Operating Table?
Regular maintenance includes cleaning, checking hydraulic fluid levels, and testing electronic controls to ensure the table operates efficiently and safely.
Can the YR06234 be used in different surgical environments?
Yes, the YR06234 is versatile and can be configured for various surgical environments, including general surgery, orthopedic, and specialty procedures.
What should I do if the YR06234 displays an error code?
If an error code appears, refer to the user manual for specific troubleshooting steps related to the displayed code. Common issues include power supply problems or hydraulic faults.
Is training required for operating the YR06234?
Yes, training is recommended to ensure all operators are familiar with the table's features, safety protocols, and emergency procedures.
Where can I request a quote for the YR06234?
You can request a quote on Kalstein Plus for the YR06234 Electrohydraulic Operating Table.
