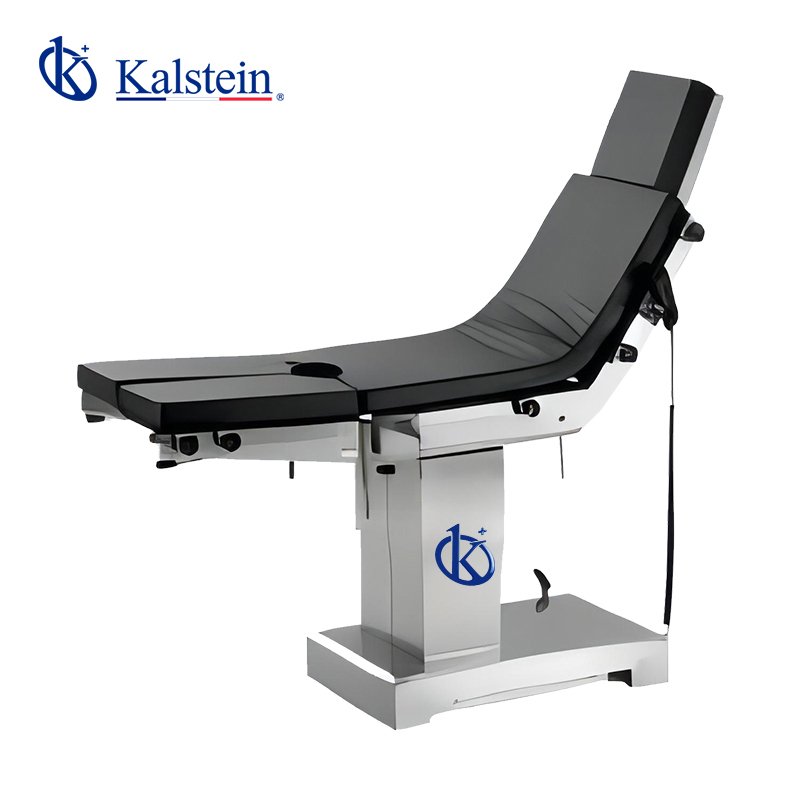

Installation and Commissioning Guide for the YR02157 Electrohydraulic Operating Table
The YR02157 Electrohydraulic Operating Table is designed for minimal access surgeries, particularly in fields like ophthalmology and otolaryngology. This guide provides an in-depth overview of the necessary steps for installing and commissioning this advanced piece of medical equipment, ensuring optimal performance and safety during its operation.
Understanding the YR02157 Operating Table
The YR02157 is specifically engineered to cater to the positioning requirements of various surgical disciplines. Its reduced lift height and electrohydraulic functionality make it an excellent choice for procedures that require precision and flexibility. Key features include remote control for easy adjustments and a load capacity of up to 300 kg, ensuring it meets diverse surgical needs.
Technical Specifications of the YR02157
| Model | YR02157 (current) |
|---|---|
| Control | Remote control with wired option |
| Table Length | 2100 mm |
| Table Width | 500 mm (excluding side rails) |
| Table Height | 800mm / 550mm |
| Trendelenburg / Reverse | 25° / 25° |
| Lateral Tilt (Right / Left) | 20° / 20° |
| Head Plate (Up / Down) | 90° / 90° |
| Back Plate (Up / Down) | 80° / 12° |
| Leg Plate (Up / Down / Split) | 10° / 100° / 100° x 2 |
| Flexion / Reflection | 192° / 100° |
| Kidney Elevator | 0 ~ 120 mm, external, optional |
| Operation Load | 300 Kg |
| Input Power | AC 110/220V, 60/50Hz |
Installation Checklist for the YR02157
Before beginning the installation of the YR02157, ensure you have the following items ready:
- Operating table YR02157
- Remote control unit
- Power supply source
- Wrench set for assembly
- Leveling tool
- User manual
Unboxing and Setting Up the YR02157
When unboxing the YR02157, follow these steps for proper setup:
- Carefully remove the operating table from its packaging, ensuring no components are damaged during the process.
- Check that all parts listed in the manual are included.
- Position the operating table in the desired location in the operating room, ensuring ample space for movement and access.
- Use the leveling tool to ensure that the table is perfectly leveled to prevent any operational issues.
Power-Up Sequence and Initial Calibration
Once the YR02157 is positioned correctly, follow these steps to power it up:
- Connect the power supply to the operating table.
- Ensure that the remote control is functioning properly by testing its response.
- Perform a test run to check all adjustable parts and settings.
- Calibrate the table as per the manufacturer's guidelines to ensure optimal operating parameters.
Common Installation Mistakes and How to Avoid Them
During the installation and commissioning of the YR02157, some common mistakes can occur:
- Incorrect Leveling: Failing to level the table can lead to misalignment during surgeries. Always double-check leveling.
- Improper Power Connections: Ensure that the power connections are secure and meet the required specifications to avoid functionality issues.
- Neglecting Calibration: Always perform the initial calibration as specified to ensure accurate operation.
Frequently Asked Questions
What are the key features of the YR02157 Electrohydraulic Operating Table?
The YR02157 features a reduced lift height, remote control for easy adjustments, and a load capacity of up to 300 kg, making it suitable for various surgical disciplines.
How do I properly care for the YR02157 to ensure its longevity?
Regular maintenance, including cleaning and inspection of mechanical components, is essential for prolonging the lifespan of the YR02157. Follow the manufacturer's guidelines for care.
What safety protocols should I follow during the installation of the YR02157?
Before installation, ensure the area is clear of obstructions, use appropriate personal protective equipment (PPE), and follow all manufacturer safety instructions.
Can the YR02157 be used for different surgical procedures?
Yes, the YR02157 is designed for versatility and can be utilized in various surgical disciplines, including ophthalmology and otolaryngology.
What should I do if the YR02157 does not respond to the remote control?
If the YR02157 does not respond, check the power supply connections and ensure the remote control batteries are charged. If problems persist, consult the manual for troubleshooting steps.
Is there a warranty available for the YR02157 Electrohydraulic Operating Table?
Yes, the YR02157 typically comes with a manufacturer’s warranty that covers certain defects and issues. Review the warranty terms as outlined in the user manual.
