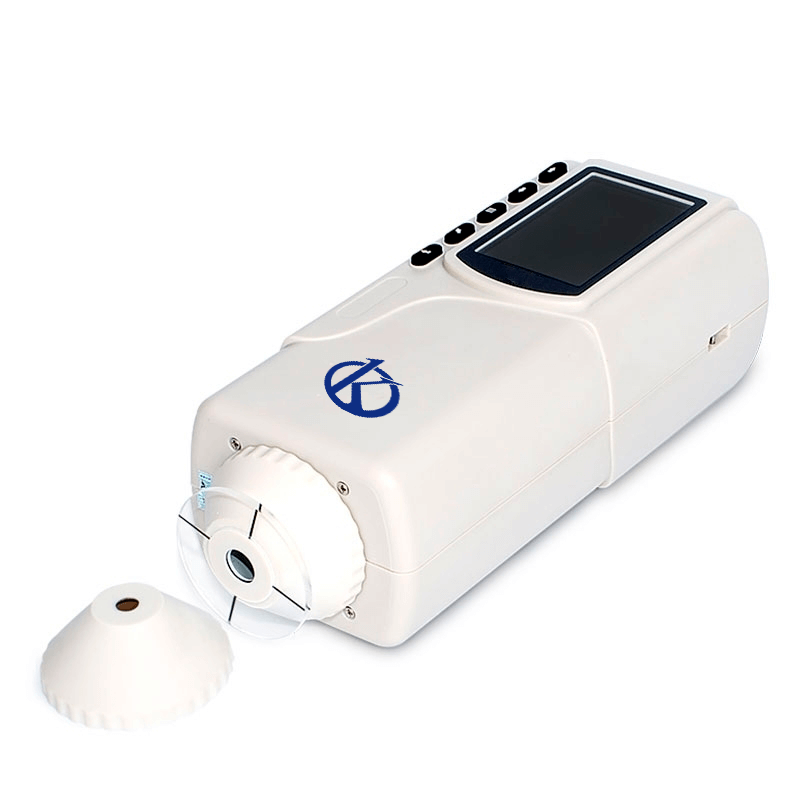

Installation and Setup Guide for the YR05513 Precision Colorimeter
The YR05513 Precision Colorimeter is a highly accurate, cost-effective tool designed for various applications, including plastic, electronics, paint, textiles, and more. This guide will provide detailed instructions for properly installing and setting up your YR05513 to ensure that you achieve the best results in your laboratory.
Unboxing and Initial Inspection
Before beginning the installation process, it is crucial to inspect the contents of the box. Ensure that you have the following items:
- YR05513 Precision Colorimeter
- Power Adapter
- User Manual
- Wrist Straps
- Φ8 mm Flat Opening
- Φ4 mm Tip Opening
Check for any visible damage during shipping. If you find any defects, contact the supplier immediately.
Site Requirements and Environmental Conditions
Before setting up the YR05513, ensure your site meets the following requirements:
| Parameter | Specifications |
|---|---|
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | -20 to 50 °C (-4 to 122 °F) |
| Humidity | Not exceeding 85% RH |
| Power Supply | 3.7 V lithium-ion rechargeable battery |
| Ventilation | Ensure sufficient airflow around the device |
| Clearances | Maintain 50 cm space from walls |
Power-Up Sequence and Initial Calibration
Once you have unboxed the YR05513 and ensured your site complies with the requirements, proceed with the following steps:
- Connect the power adapter to the YR05513 and plug it into an appropriate outlet.
- Press the power button to turn on the device.
- Allow the device to initialize, which may take a few seconds.
- Perform an initial calibration by following the steps outlined in the user manual.
Calibration is essential for ensuring accurate measurements. The YR05513 comes with built-in white plate parameters, eliminating the need for repeated calibration with every quick measurement.
Common Installation Mistakes to Avoid
While installing and setting up the YR05513, be mindful of these common mistakes:
- Incorrect power supply connection: Ensure that the power adapter matches the device specifications.
- Ignoring environmental conditions: Make sure the operating conditions meet the specified ranges.
- Skipping calibration: Proper calibration is critical for accurate results.
Technical Specifications of the YR05513
| Model | YR05513 (current) |
|---|---|
| Illumination/View Geometry | 8/d (8° illumination angle/diffuse view); Complies with CIE No.15, GB/T 3978. |
| Illumination Source | White LED |
| Detector | Silicon Photoelectric Diode |
| Measurement Aperture | Φ8 mm flat opening; Φ4 mm tip opening |
| Color Space | CIE LAB |
| Color Difference Formula | ΔE*ab |
| Observer Angle | CIE 10° |
| Light Source | D65 |
| Data Displayed | Chromaticity values, color difference values/graph, PASS/FAIL result, color compensation |
| Measuring Time | 1.0s |
| Repeatability | Standard deviation within ΔE*ab 0.03 (Average of 30 standard white plate measurements) |
| Dimension | 205×67×80 mm |
| Weight | 500g |
| Power Supply | Rechargeable lithium-ion battery 3.7 V, 3200 mAh. |
| Data Memory | 100 standard pieces, 10,000 samples |
Frequently Asked Questions
What are the primary applications of the YR05513 Precision Colorimeter?
The YR05513 is widely used in various fields including plastics, electronics, paints, textiles, food, medicine, and scientific research due to its high accuracy and versatile measurement capabilities.
How do I calibrate the YR05513?
Calibration of the YR05513 involves using the built-in white plate parameters to ensure accurate color measurements. It is recommended to follow the calibration steps outlined in the user manual provided with the device.
What kind of maintenance does the YR05513 require?
The YR05513 requires routine checks on the battery life, cleaning of the measurement apertures, and ensuring that the device is kept within specified operating conditions to maintain its accuracy and longevity.
Can the YR05513 be used for outdoor measurements?
It is advisable to use the YR05513 in controlled indoor environments. Direct sunlight and extreme temperatures can affect its performance and accuracy.
What should I do if the YR05513 gives inaccurate readings?
If you experience inaccurate readings, check for calibration, ensure that the apertures are clean, and confirm that the device is operating within the specified environmental conditions.
Is the YR05513 portable?
Yes, the YR05513 is designed to be compact and lightweight, making it a convenient tool for field use, though it is recommended for use in stable environments for best results.
Where can I find spare parts for the YR05513?
Spare parts and accessories for the YR05513 can usually be obtained from the manufacturer or authorized suppliers. It's essential to use compatible parts to ensure device performance.
