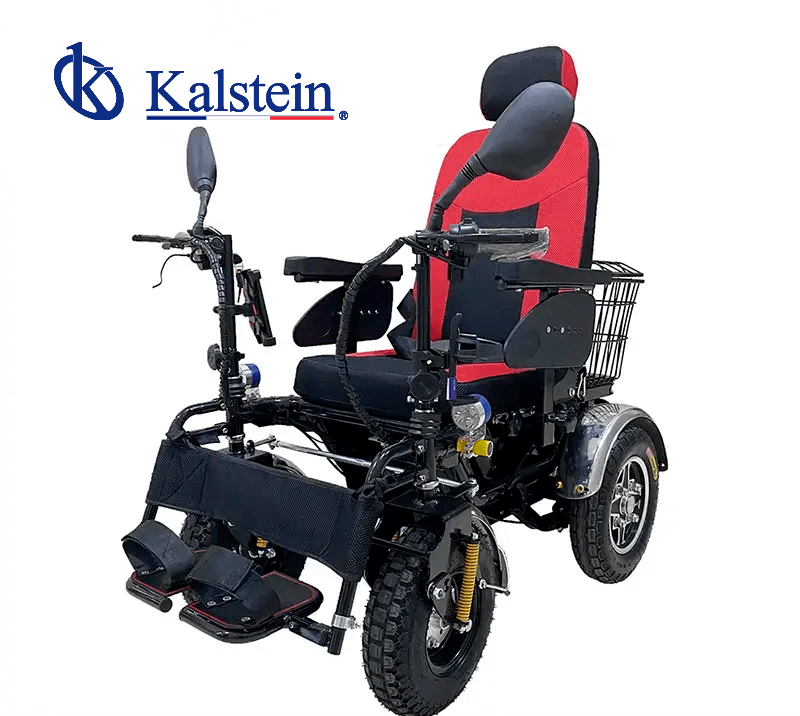

Installation and Startup Guide for the YR05442 Electric Wheelchair
The YR05442 electric wheelchair is engineered for all-terrain applications, catering specifically to the needs of disabled and elderly individuals. This guide provides a comprehensive overview of the key steps for installation and initial setup, ensuring optimal performance and safety from the very first use.
Unboxing and Initial Setup
Upon receiving your YR05442 wheelchair, it is crucial to perform a thorough unboxing to ensure that all components are present and in working condition. The following checklist outlines the necessary steps:
- Check the box for any visible damage.
- Ensure all parts are included: electric wheelchair, user manual, charger, seat belt, optional selfie stick holder, and storage basket.
- Inspect the wheels and frame for any irregularities.
Once the wheelchair is unboxed, place it on a stable surface, ideally flat and even, to begin the setup process.
Anchoring and Leveling the Wheelchair
The next step involves ensuring that the wheelchair is correctly anchored and leveled. Given that the YR05442 can traverse slopes of up to 40 degrees, proper leveling is crucial:
- Position the wheelchair on a flat surface initially.
- Adjust the seat height using the built-in mechanisms to ensure comfort and ease of use.
- Ensure that the anti-slip design is functional, preventing any backward sliding on inclines.
Power-Up Sequence
Powering up the YR05442 is a straightforward process. Follow these steps for successful initiation:
- Ensure the wheelchair is charged using the standard USB charging port, which allows for easy accessibility.
- Press the power button located on the control panel.
- Check for indicator lights; a green light typically denotes that the wheelchair is fully powered.
Initial Calibration and Testing
Before embarking on a ride, it’s essential to calibrate and test the wheelchair to ensure all systems are functioning as expected:
- Adjust the speed settings to suit personal comfort levels, as the YR05442 can reach speeds of up to 20 km/h.
- Perform a test run in a safe area, checking for responsiveness and any unusual noises.
- Verify that the safety features, such as the slow-start mechanism, are operational to avoid accidents.
Understanding the Control Panel
The control panel of the YR05442 is user-friendly. It includes buttons for speed adjustment, direction control, and emergency stops. Familiarize yourself with the layout:
- Speed Control: Adjusts the maximum speed based on user comfort.
- Directional Controls: Allows for forward and backward movement.
- Emergency Stop: Should be tested during setup to ensure functionality.
Maintenance and Troubleshooting
Regular maintenance is key to ensuring the longevity of your YR05442 wheelchair. Familiarize yourself with common issues:
- Battery checks: Ensure the battery is charged and replace it if performance declines.
- Wheel inspection: Regularly check for wear and tear on the wheels and replace as necessary.
- Connection points: Inspect and tighten any connection points to prevent loose components.
Technical Specifications of the YR05442
| Model | YR05442 |
|---|---|
| Seat Width | 45 cm |
| Seat Depth | 45 cm |
| Seat Height | 56 cm |
| Backrest Height | 78 cm |
| Total Length | 129 cm |
| Average Width | 70 cm |
| Total Height | 124 cm |
| Rear Wheel Size | 14 inches |
| Front Wheel Size | 13 inches |
| Net Weight | 104 kg |
| Material | Steel |
| Load Capacity | 200 kg |
| Operating Range | 35—75 km |
| Max Speed | 0-20 km/h |
| Motor | Central Differential Motor 48V 600W |
| Battery | 48V 20Ah/32Ah Lead Acid or Lithium 60V 30Ah |
| Braking System | Dual Rear Mechanical Drum Brake, Optional Electromagnetic and Disc Brake |
| Cushion Color | Red |
Frequently Asked Questions
How does the YR05442 electric wheelchair handle steep inclines?
The YR05442 can successfully navigate inclines of up to 40 degrees due to its powerful motor and anti-slip design, ensuring a stable ride even on challenging terrain.
What are the maintenance requirements for the YR05442?
Regular maintenance involves checking the battery, inspecting the wheels for wear, and ensuring all connections are secure. It is also advisable to keep the wheelchair clean and stored in a dry environment.
Can I customize the YR05442 wheelchair?
Yes, the YR05442 offers various customization options such as changing the seat material, adding a backrest, and upgrading brake systems to suit individual needs.
What should I do if the wheelchair does not power on?
If the wheelchair does not power on, first check the battery connection and ensure it is charged. If the issue persists, consult the user manual for troubleshooting steps or contact customer service.
What is the maximum distance the YR05442 can travel on a single charge?
The YR05442 can travel between 35 to 75 km on a single charge, depending on the terrain and overall weight being carried.
Is the YR05442 wheelchair suitable for indoor use?
Yes, the YR05442 is designed for versatility. Its dimensions and turning radius make it suitable for use in various indoor environments, like homes or care facilities.
What safety features does the YR05442 have?
The YR05442 includes several safety features such as a slow-start mechanism to prevent sudden acceleration, a seat belt for user security, and an emergency stop function to quickly halt operation.
