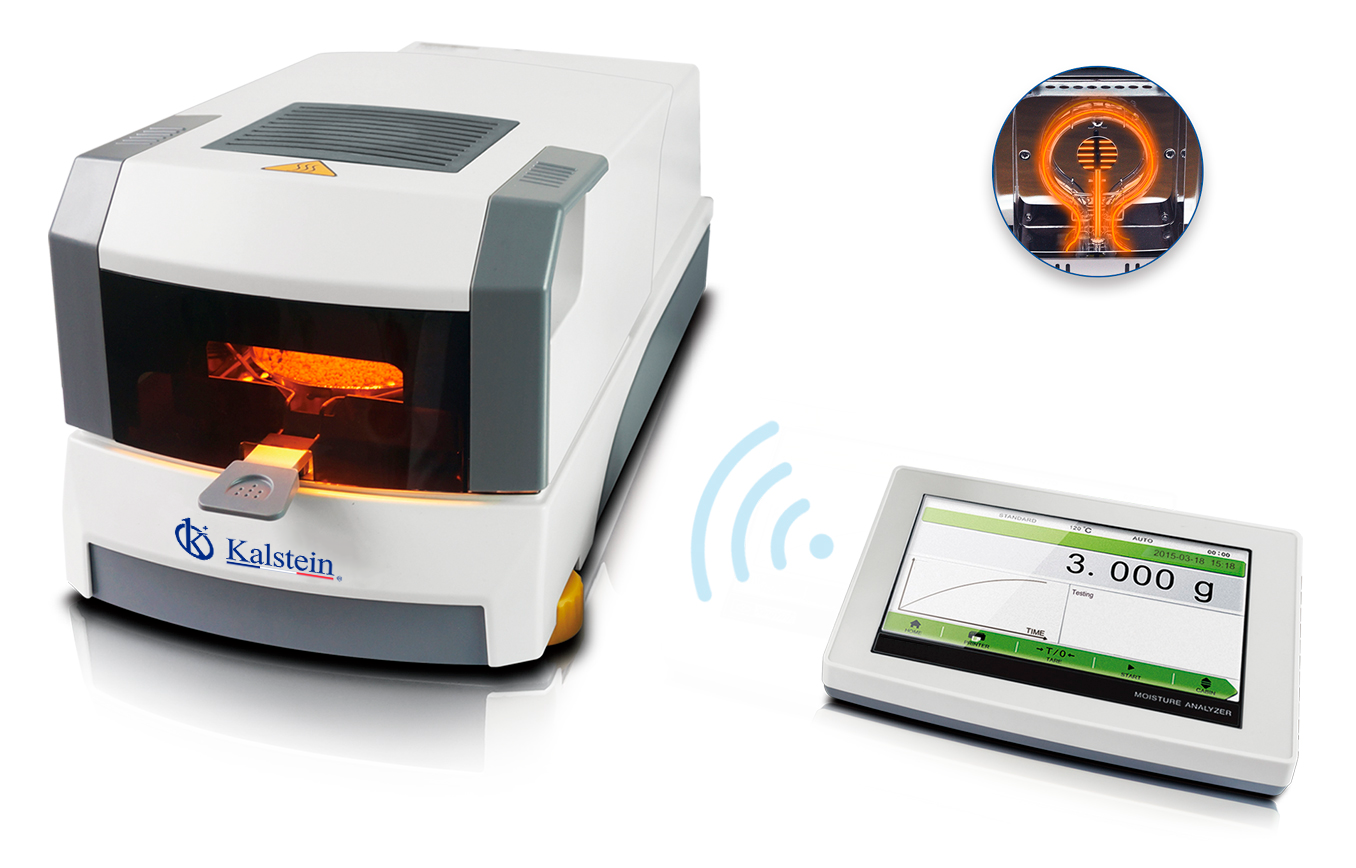

Interpreting Results and Measuring Readings with the YR05559 Halogen Moisture Analyzer
The YR05559 Halogen Moisture Analyzer is a sophisticated tool designed to provide accurate moisture content readings in various materials. Understanding how to interpret the results accurately is essential for effective application in laboratory and industrial settings. This article delves into the specifics of the YR05559, focusing on how to read and interpret the moisture measurements it provides.
Understanding the Halogen Moisture Analysis Process
The halogen moisture analysis process relies on the evaporation of moisture from a sample when subjected to heat from a halogen lamp. The YR05559 model utilizes a dual motor drive system to ensure even distribution of heat, providing consistent results. The moisture content is calculated based on the weight loss of the sample during the drying process, which is displayed on the 7-inch touchscreen for easy reading.
Technical Specifications of the YR05559
| Specification | Details |
|---|---|
| Model | YR05559 |
| Capacity | 110g |
| Readability | 0.001g |
| Operating Temperature | 5℃-35℃ |
| Heating Source | Halogen Lamp |
| Temperature Range | 40℃-230℃ |
| Humidity Range | 0.00%-100.00% |
| Weight | 10kg |
| Dimensions | 215x195x415mm |
| Display | 7-inch Touchscreen |
Reading and Interpreting Results
When using the YR05559, the results are displayed in percentage format, reflecting the moisture content of the sample. The user can set the desired temperature and time according to the material being tested. It’s crucial to familiarize oneself with the display interface:
- Measurement Units: The analyzer displays moisture content in percentages (e.g., 12.5% indicates moisture content).
- Error Bars: Understanding the acceptable error margins is vital. A reading may often fluctuate slightly due to environmental conditions.
- Dynamic Curves: The real-time dynamic curve reflects changes during the analysis and allows for better understanding of moisture loss rates.
Common Misinterpretations in Moisture Readings
Several common misinterpretations can occur while using the YR05559. For instance:
- Conflating % Moisture with Dry Weight: It's essential to differentiate between moisture content and dry weight when interpreting results.
- Ignoring Temperature Settings: Ensure the temperature settings are appropriate for the material being tested; otherwise, it could lead to inaccurate readings.
- Overlooking Sample Size: Using a sample that is too large or small can alter the accuracy of the moisture content reading.
Practical Examples of Readings
To solidify the understanding of moisture interpretation, here are practical examples:
- Example 1: A sample shows a moisture reading of 15%. This indicates a relatively high moisture content, suggesting the need for further drying or processing.
- Example 2: A reading of 3% moisture might indicate a well-dried sample, suitable for use in processes that require low moisture levels.
Frequently Asked Questions
How do I calibrate the YR05559 Halogen Moisture Analyzer?
Calibration involves ensuring the analyzer displays accurate weight readings. It is recommended to perform calibration with certified calibration weights before the first use and periodically thereafter, following the manufacturer's guidelines.
What is the maximum capacity of the YR05559?
The YR05559 has a maximum sample capacity of 110 grams, which allows for a wide range of material testing.
How does the halogen lamp affect measurement?
The halogen lamp serves as the primary heat source, efficiently evaporating moisture from samples. It's crucial to maintain the lamp for consistent heating, which directly impacts measurement accuracy.
What are the common errors encountered with the YR05559?
Common errors include incorrect temperature settings, improper sample sizes, and environmental factors such as humidity affecting results. Regular maintenance and operator training can mitigate these errors.
Can the YR05559 connect to printers for data logging?
Yes, the YR05559 can connect to both PCs and printers, allowing for data logging and documentation of moisture analysis results for further review.
What materials is the YR05559 suitable for testing?
The YR05559 is suitable for a variety of materials, including grains, powders, and other solid substances. Understanding the material properties will help in setting appropriate drying parameters.
Conclusion
Interpreting results and accurately measuring readings with the YR05559 Halogen Moisture Analyzer is crucial for effective material analysis in various applications. Familiarization with its features and functionalities enhances accuracy and reliability in moisture content determination.
