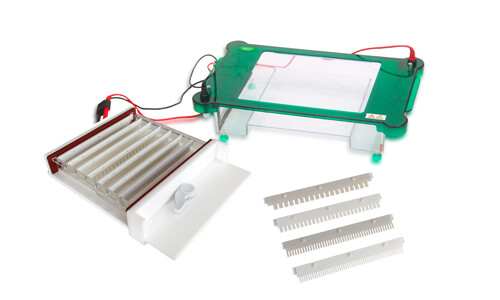

Interpreting Results and Reading Measurements with the YR03421 Horizontal Electrophoresis Unit
The YR03421 horizontal electrophoresis unit is engineered for precise and versatile applications in laboratory environments. A key aspect of successful electrophoresis is the ability to accurately interpret results and read measurements. This article delves into the methods and approaches necessary to achieve reliable results when using the YR03421.
Understanding the Principle of Operation
The YR03421 operates on the principles of gel electrophoresis, a technique that separates nucleic acids based on size and charge. The unit utilizes agarose gel, which serves as a medium for migration. When an electric field is applied, the negatively charged DNA or RNA molecules are pulled towards the positive electrode, with smaller fragments moving faster than larger ones.
To master the interpretation of results, it is essential to understand how the gel matrix influences separation. The concentration of agarose affects the resolution of the bands; a higher concentration provides better separation but limits the size of the DNA fragments that can be resolved. Thus, selecting the appropriate agarose concentration is crucial to ensure effective size estimation of nucleic acids.
Technical Data of the YR03421
| Specification | Details |
|---|---|
| Model | YR03421 |
| Gel Size (WxL) | 245x250mm |
| Sample Volume | 19~364µl |
| Buffer Volume | ~2000ml |
| Dimensions (LxWxH) | 487x300x93mm |
| Net Weight | 3.8Kg |
Reading Display and Understanding Measurements
The YR03421 features a user-friendly interface that displays measurements during the electrophoresis runs. Understanding how to read these measurements is critical. The results are usually visualized in the form of bands on the gel, which can be analyzed using a gel documentation system.
Measurements such as band intensity, size, and distance migrated should be interpreted carefully. Band intensity can correlate with the concentration of the nucleic acid present, while the distance migrated allows for size estimation when compared with a DNA ladder. It's crucial to ensure accurate calibration with known standards to interpret these results correctly.
Common Misinterpretations
Common errors in interpreting results from the YR03421 may arise from variations in loading volumes, gel concentration, or migration times. For example, overloading wells can lead to smeared bands, making it difficult to assess size and concentration accurately. Similarly, uneven gel preparation can cause differential migration, resulting in misleading conclusions.
It’s essential to maintain consistent protocols and carefully document all conditions during experiments to avoid such misinterpretations. Regularly validating results with positive controls can also help in recognizing discrepancies in reading measurements.
Best Practices for Sample Preparation
Proper sample preparation is critical for obtaining high-quality electrophoresis results with the YR03421. The DNA or RNA samples must be free from contaminants that could interfere with migration. It is advisable to quantify samples using spectrophotometry or fluorometry prior to loading them into the gel.
Additionally, including loading dye in the samples can help in monitoring the progress of the electrophoresis run. Observing the migration of the dye can signal when to stop the run, preventing the samples from being excessively run off the gel.
Interpreting Gel Images and Analyzing Results
After electrophoresis, gel images can be captured using a gel documentation system. Interpretation involves analyzing the sharpness and clarity of the bands. Clear and distinct bands indicate successful separation, while blurry bands may suggest issues during the electrophoresis process.
Quantitative analysis can be performed using software that compares the intensity of bands against a standard curve to determine the concentration of nucleic acids. By plotting band intensities against known concentrations, users can generate reliable quantitative measurements.
Frequently Asked Questions
What are the common sample errors when using the YR03421?
Common sample errors include improper loading volumes, sample contamination, and degradation due to improper storage conditions. To minimize these issues, always use high-quality reagents and follow strict protocols during preparation.
How can I ensure accurate measurement readings with the YR03421?
To ensure accurate measurement readings, calibrate the equipment regularly, use appropriate agarose concentrations, and run positive controls alongside samples. Additionally, document all experimental conditions meticulously.
What factors can affect the results obtained from the YR03421?
Factors affecting results include gel concentration, voltage applied, running time, and sample quality. Each of these factors can significantly influence the resolution and clarity of the bands obtained.
How do I interpret band sizes on the gel?
Band sizes can be interpreted by comparing them to a DNA ladder, which provides size markers. Measuring the distance migrated by the bands relative to the ladder allows for accurate size estimation.
What maintenance is required for the YR03421?
Regular cleaning of the gel tank and ensuring that the electrodes are functioning correctly is crucial. Additionally, inspect the power supply for any signs of wear to maintain optimal performance.
Can the YR03421 be used for RNA analysis?
Yes, the YR03421 can be effectively used for RNA analysis. It is important to use appropriate gel conditions and buffers suited for RNA to ensure successful separation and visualization.
