LED Surgical Light YR02105: Technical Glossary and Key Terminology
The LED Surgical Light YR02105 is a critical tool in modern surgical environments, designed to provide optimal illumination for various medical procedures. Understanding the technical terms and specifications associated with this equipment is essential for healthcare professionals. This article provides a comprehensive technical glossary and key terminology related to the YR02105 model, which aids in the effective operation and comprehension of its functionalities.
Overview of LED Surgical Light YR02105

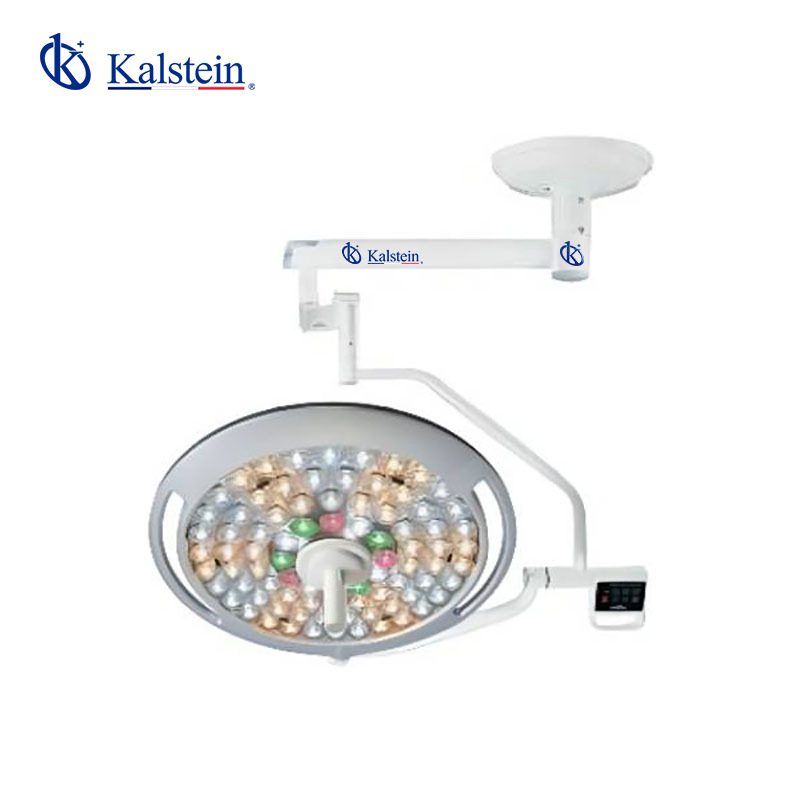

The YR02105 model boasts a sleek and lightweight aluminum alloy head, combined with a smart touch control panel that enhances usability. Its advanced features include adjustable color temperature, electric and manual focus, and multiple operational modes for various surgical applications.
Technical Specifications of YR02105
| Specification | Value |
|---|---|
| Model | YR02105 |
| Illumination at 1m (lux) | 160000/160000 |
| Illumination at 1m on Endo model (lux) | 15000 |
| Light field diameter D10 mm | 180±40/180±40 |
| D50 mm | 110±35/110±35 |
| Depth of illumination L1+L2 mm | 150 |
| Color rendering index (Ra) | 100≥Ra≥85 |
| Red color index R9 | R9≥97 |
| Optional color temperature (K) | 6700K ≥Tc≥3500k |
| Average bulb life (hours) | 50000h |
| Heat-to-light ratio (mW/m²lx) | <6 |
| Power supply | 110-240V |
| Input power (VA) | 150W/150W |
| Ceiling height for installation (cm) | 270-320 |
Technical Glossary of Key Terms for YR02105
| Term | Definition |
|---|---|
| Color Temperature | The measure of the light's color appearance, expressed in Kelvin (K), affecting the ambiance and clarity of the surgical field. |
| Illumination | The amount of light provided by the surgical light, measured in lux, ensuring adequate visibility during procedures. |
| Color Rendering Index (CRI) | A metric indicating the light source's ability to reproduce colors accurately in comparison to natural light. |
| Red Color Index (R9) | A specific measure of the light's ability to render red colors, critical in surgical settings. |
| Depth of Illumination | The vertical distance over which the light effectively illuminates, affecting procedural precision. |
| Light Field Diameter | The size of the illuminated area at a specified distance from the light source, impacting the surgical field coverage. |
| Heat-to-Light Ratio | The ratio of heat emitted to the light produced, important for maintaining a comfortable environment during surgery. |
| Operational Mode | Different settings available on the YR02105 for various surgical needs, such as Endo mode for endoscopic procedures. |
| Smart Touch Control | A user-friendly interface for adjusting the light's settings, enhancing operational efficiency. |
| LED Technology | A form of lighting that provides energy efficiency, longevity, and superior light quality. |
Frequently Asked Questions
What is the average lifespan of the LED bulbs in the YR02105?
The average bulb life of the LED lights in the YR02105 is approximately 50,000 hours, ensuring long-term usability in surgical applications.
How does the color rendering index affect surgical procedures?
The color rendering index (CRI) determines how accurately colors are represented under the surgical light. A CRI of 100≥Ra≥85 is ideal, allowing for precise color differentiation during surgeries.
What are the operational modes available in the YR02105?
The YR02105 features various operational modes including standard mode, R11 (green mode), R9 (red mode), and Endo mode, each tailored for different surgical environments.
How can the color temperature be adjusted on the YR02105?
The color temperature on the YR02105 can be adjusted using the smart touch control panel, allowing for a range of settings from 3500K to 6700K to suit different surgical needs.
What are the installation requirements for the YR02105?
The installation height for the YR02105 should be between 270 cm to 320 cm from the ceiling to ensure optimal light coverage during procedures.
What maintenance is required for the YR02105?
Regular cleaning of the light and its components is essential, alongside routine checks on the electrical connections to ensure optimal performance.
In which surgical environments is the YR02105 most commonly used?
The YR02105 is predominantly utilized in a variety of surgical environments, including general surgery, endoscopic procedures, and specialized surgeries that require high-fidelity lighting.
