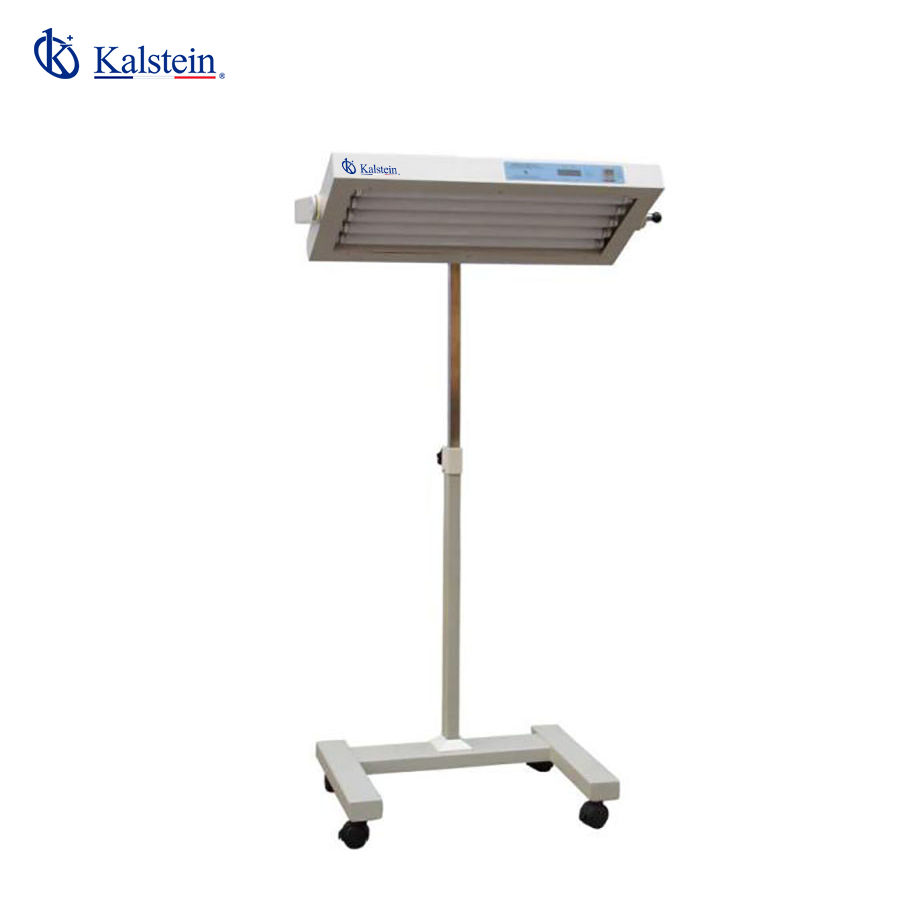

Technical Comparison and Overview of the Neonatal LED Phototherapy Unit YR06217
Product Description
The Neonatal LED Phototherapy Unit YR06217 is designed specifically for the treatment of neonatal jaundice, using advanced LED technology for efficient and effective therapy. The unit is equipped with a blue tube or LED as its light source, which has a long effective life providing consistent performance.
It features a digital LED timer that allows for the visualization of both therapy time and total time, ensuring that healthcare professionals can monitor treatment durations accurately. The unit also includes a lift ramp, a mobile support system, and a radiant head that can be rotated at angles of 30°, 60°, and 90° for optimal positioning.
| Specification | Details |
|---|---|
| Model | YR06217 |
| Input Power | <150VA |
| Light Source | Blue tube/ LED tube |
| Light Source Effective Life | 2,000 / 50,000 hours |
| Wavelength | 400-550 nm |
| Irradiance Treatment Distance | 10~500px |
| Effective Area | 1125px×600px |
| Bilirubin Total Irradiance Maximum (Ebi max) | ≥2000μW/cm2 |
| In Effective Area Surface | ≥500μW/cm2 |
| Average In Effective Area Surface | ≥400μW/cm2 |
| Uniformity of Ebi | 0.4 |
| Infrared Radiation In Effective Area | ≤10mW/cm2 (760nm<λ≤1400nm) |
| Ultraviolet Radiation In Effective Area | ≤1.0×10-5mW/cm2 (180nm<λ≤400nm) |
| Time Display Accuracy | 2h±1min |
| Operating Noise | ≤55dB(A) |
| Basic Performance | The equipment total irradiance (Ebi) ≥500μW/cm2 |
| Time Display Range | 9999h 59min |
| Adjust Angle | 30°,60°,90° |
| Adjust Height | 1100mm~1500mm |
Market Price
The Neonatal LED Phototherapy Unit YR06217 is competitively priced at approximately $345.00. This price point offers significant value in relation to the advanced technology and features integrated into the unit, making it an attractive option for medical facilities focused on providing high-quality neonatal care.
Frequently Asked Questions
What are the main features of the YR06217?
The YR06217 features a blue tube or LED light source, a digital LED timer, adjustable height, and angles for optimal positioning, all designed for effective neonatal phototherapy.
How does the light source of the YR06217 compare to traditional phototherapy lights?
The LED technology used in the YR06217 provides a more efficient and longer-lasting light source compared to traditional phototherapy lights, ensuring consistent treatment effectiveness.
What is the expected lifespan of the light source?
The light source in the YR06217 has an effective lifespan of up to 50,000 hours, offering long-term reliability for medical facilities.
Is the YR06217 easy to operate and maintain?
Yes, the YR06217 is designed for ease of use with simple controls and minimal maintenance requirements, making it suitable for use in busy healthcare environments.
What safety features does the YR06217 include?
The YR06217 includes safety features like a digital timer for monitoring treatment periods and a low noise operation to maintain a calm environment for infants.
Can the YR06217 be adjusted for different height requirements?
Yes, the unit allows height adjustments ranging from 1100mm to 1500mm to accommodate various treatment settings and ensure accessibility.
Where can I request a quote for the YR06217?
You can request a quote for the YR06217 through our online channels, which are designed for your convenience.
Pros and Cons
Pros
- Efficient LED technology with long lifespan.
- Adjustable height and angles for optimal treatment positioning.
- Digital timer for accurate monitoring.
- Low noise operation enhances comfort for infants.
- Cost-effective price point for advanced technology.
Cons
- Initial investment may be higher compared to basic models.
- May require specific training for optimal use in clinical settings.
Field Usage
The Neonatal LED Phototherapy Unit YR06217 is primarily used in hospitals and healthcare facilities specializing in neonatal care. It is specifically designed to treat jaundice in infants effectively and is often used in both intensive care units and general pediatric wards. The mobility and adjustability of the unit allow healthcare providers to position it easily for various treatment scenarios, enhancing overall patient care.
Recommendations
For optimal results, it is recommended that healthcare professionals familiarize themselves with the operation and maintenance of the Neonatal LED Phototherapy Unit YR06217. Regular training and adherence to safety protocols will ensure that the device operates effectively and safely. Additionally, considering the specific needs of the healthcare environment, investing in accessories or additional units may enhance treatment capabilities for larger patient populations.
