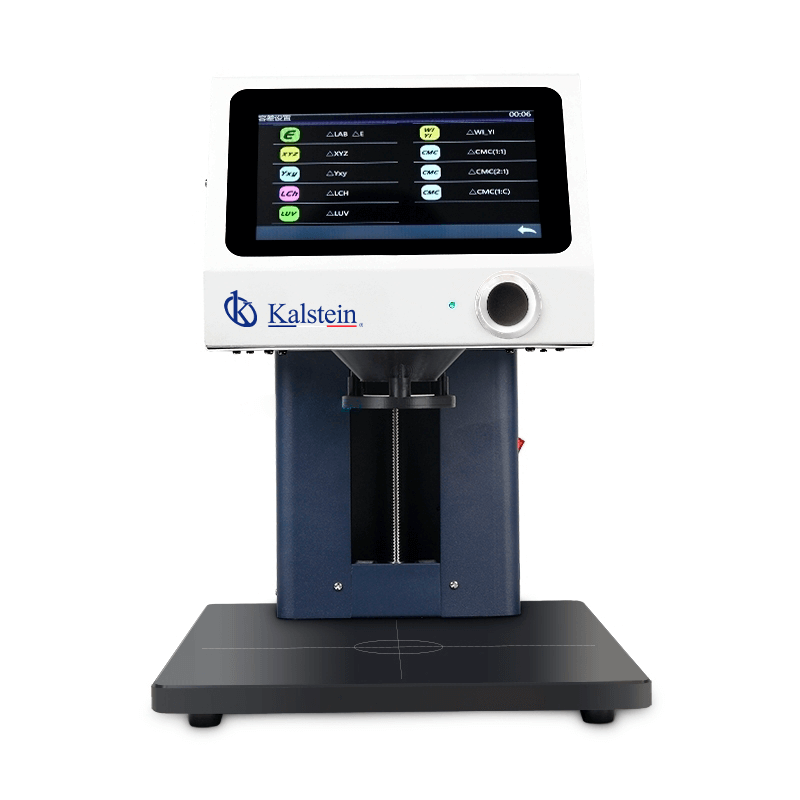

Understanding the Operating Principle and Scientific Basis of the YR05483 Non-Contact Table Spectrophotometer
The YR05483 Non-Contact Table Spectrophotometer represents a significant advancement in color measurement technology. Employing a unique optical geometry of 45/0, this device allows for precise measurements of color attributes while ensuring no contact with the sample. In this article, we will delve into the scientific principles that underpin its operation, detailing how these principles translate into practical applications across various industries.
Technical Overview: The 45/0 Optical Geometry
The YR05483 utilizes a 45/0 optical geometry, which is characterized by a 45-degree angle of illumination and a perpendicular observation angle. This configuration minimizes the impact of surface texture on color measurement, allowing for more accurate readings. The light source, a full-spectrum LED, illuminates the sample and reflects back to the sensor, which captures the chromaticity.
This non-contact method is particularly beneficial for sensitive samples, preventing contamination and damage. The device measures reflectance and colorimetric values across a wavelength range of 400 to 700 nm, which is essential for industries like food, cosmetics, and materials science.
Scientific Principles Behind Color Measurement
Color measurement is fundamentally based on the interaction of light with matter. When light strikes an object, a portion of it is reflected, absorbed, or transmitted. The YR05483 quantifies these interactions by calculating the reflectance of the sample.
The reflectivity can be described using the formula:
Reflectance (R) = Ireflected / Iincident
Where Ireflected is the intensity of reflected light and Iincident is the intensity of incoming light. The resulting values can be transformed into various color spaces such as CIE XYZ or L*a*b*, which are important for standardized color communication.
Applications in Industry: Versatile Uses of the YR05483
The versatility of the YR05483 makes it suitable for a wide range of applications. It excels in:
- Food and Beverage: Ensuring consistent color quality in products such as sauces, beverages, and packaged foods.
- Cosmetics: Measuring color consistency in makeup formulations to maintain brand standards.
- Textiles: Verifying dye consistency and quality control in fabric production.
- Plastics and Coatings: Assessing color uniformity in production lines to enhance product quality.
- Quality Control: Implementing automated measurement protocols in production lines.
Technical Specifications of the YR05483
| Specification | Details |
|---|---|
| Model | YR05483 |
| Illumination System | 45/0 Method (ring illumination, vertical viewing) |
| Light Source | Full spectrum LED |
| Measuring Range | 400~700 nm |
| Measurement Aperture | Φ20 mm |
| Distance Measurement | Non-contact at 7.5 mm |
| Data Storage | 30,000 samples (QC mode), 10,000 (Continuous Statistics) |
| Display | 7-inch Capacitive TFT Touchscreen |
| Power Supply | 24V DC Adapter, 3A |
Frequently Asked Questions
What is the primary advantage of using the YR05483 over traditional spectrophotometers?
The primary advantage of the YR05483 is its non-contact measurement capability, which prevents sample contamination and damage, leading to more accurate and reliable results.
How does the 45/0 optical geometry affect measurement accuracy?
The 45/0 optical geometry minimizes the impact of surface texture on color readings, providing more consistent and accurate measurements across various sample types.
Can the YR05483 be used for measuring liquids?
Yes, the YR05483 is designed to measure a variety of sample forms including liquids, powders, and pastes without the need for direct contact.
What industries benefit most from the YR05483 spectrophotometer?
Industries such as food, cosmetics, textiles, and plastics utilize the YR05483 for ensuring color consistency and quality control in their products.
How do I maintain the YR05483 for optimal performance?
Regular calibration, cleaning of the optical surfaces, and ensuring the device is stored in appropriate environmental conditions will maintain the performance of the YR05483.
What are common troubleshooting methods for the YR05483?
If the device displays error codes or inconsistent readings, check for proper calibration, ensure no obstructions are affecting the light path, and verify that the sample surface is clean.
How can I request a quote for the YR05483?
Please contact us for a detailed quote, and we will assist you with your inquiry regarding the YR05483 Non-Contact Table Spectrophotometer.
