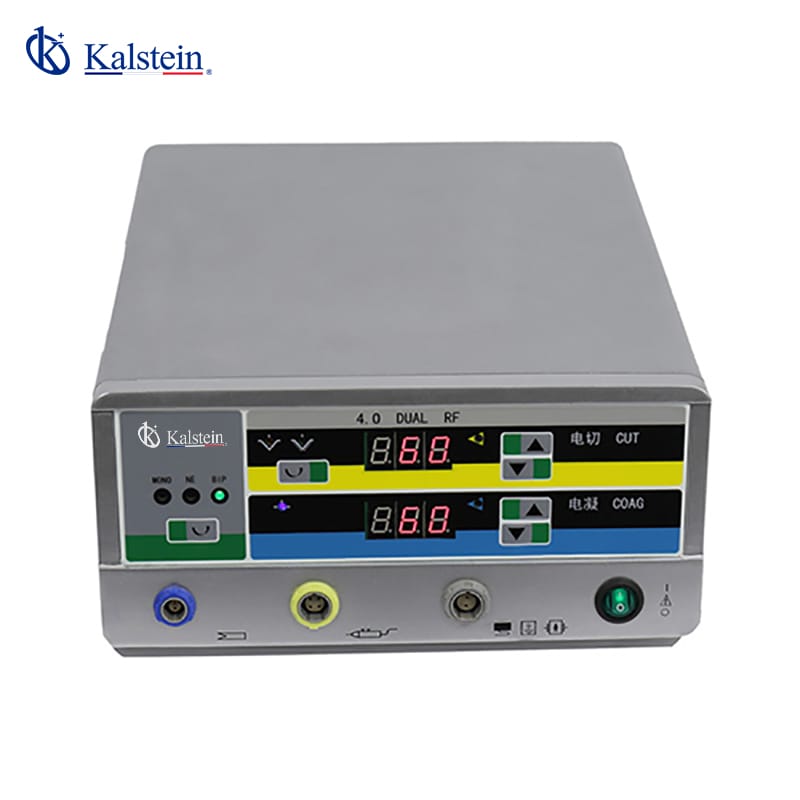

Understanding the Operating Principle and Scientific Foundation of the YR02147 Electrosurgical Generator
The YR02147 Electrosurgical Generator is an advanced unit designed for precise electro-surgical procedures such as Loop Electrosurgical Excision Procedure (LEEP) in gynecology. This article delves into the principles of operation, the scientific foundation supporting the technology, and the practical implications for users in clinical settings.
Principles of Operation of the YR02147
The YR02147 functions primarily through the application of high-frequency electrical currents to tissue. The generator produces a continuous sinusoidal waveform at a base frequency of 512 KHz, which is crucial for effective cutting and coagulation of tissues during surgical procedures. The waveform characteristics, including voltage levels and cycle duty, play a significant role in the precision of the surgical outcomes.
The generator's maximum isolated output can reach up to 150 watts, allowing for controlled incisions with minimal thermal damage to surrounding tissues. This ability to manipulate the power output and waveform directly correlates with improved patient outcomes and reduced recovery times.
Scientific Foundation of Electrosurgery
Electrosurgery relies on the principle of thermal effects of electricity when applied to biological tissues. As current flows through the tissue, it generates heat, leading to vaporization, cutting, or coagulation, depending on the parameters set on the generator. The choice of waveform, in particular, is critical; continuous sine waves provide smooth cutting, while mixed waveforms can enhance coagulation.
Key scientific principles such as Ohm's Law and thermal conductivity are integral to understanding the efficacy of the YR02147. The relationship between voltage, current, and resistance in tissue is fundamental to tailoring surgical procedures effectively.
Technical Specifications of YR02147
| Model | YR02147 |
|---|---|
| Main Unit | |
| Base Output Frequency | 512 KHz |
| Pure/Mixed Cutting Power | 0 ~ 150 W |
| Pure Waveform | Continuous sine wave, max open voltage at 1700 V |
| Cutting Waveform Mix 1 | 68% duty cycle, max open voltage at 1700 V |
| Cutting Waveform Mix 2 | 56% duty cycle, max open voltage at 1600 V |
| Cutting Waveform Mix 3 | 32% duty cycle, max open voltage at 2000 V |
| Coagulation Power | 0 ~ 100 W |
| Soft Coagulation Power | 16% duty cycle, max open voltage at 3300 V |
| Point Coagulation Waveform | 16% duty cycle, max voltage at 4600 V |
| Power Supply | 220 V / 50 Hz, nominal current at 3.15 A |
| Leakage Current | <150 mA |
| Safety Standard | EN 60601-1 and 60601-2-2 |
Applications of YR02147 in Clinical Fields
The versatility of the YR02147 makes it suitable for various surgical applications. In gynecology, it is predominantly used for cervical surgeries where precision is paramount. The generator’s automatic return electrode recognition function ensures safety during procedures, reducing the risk of complications.
In addition to gynecology, the YR02147 is also utilized in plastic surgery and ENT (Ear, Nose, and Throat) surgeries. Each surgical discipline can leverage the cutting and coagulation capabilities of the generator to enhance surgical effectiveness while minimizing patient trauma.
Comparison with Alternative Electrosurgical Generators
When comparing the YR02147 with other electrosurgical generators, several key features stand out. The generator not only offers a higher isolated output but also integrates advanced error diagnostic codes, which can assist in troubleshooting. Furthermore, while many generators provide basic cutting and coagulation options, the YR02147 features a unique floating output, adding an extra layer of safety and efficiency to surgical procedures.
Another advantage is the optional smoke evacuation system that pairs with the generator, which is essential in modern surgery for maintaining a clear field of view and ensuring a sterile environment.
Frequently Asked Questions
What are the main features of the YR02147 Electrosurgical Generator?
The YR02147 is equipped with four cutting outputs and two coagulation outputs, automatic return electrode recognition, and digital diagnostic error codes. It has a maximum isolated output of 150 watts and operates at a frequency of 512 KHz, making it highly effective for a variety of surgical procedures.
How does the YR02147 ensure patient safety during procedures?
The YR02147 employs several safety features, including an automatic return electrode recognition system, which prevents burns and improves patient safety. The generator's isolated output design also reduces the risk of electrical hazards during surgical procedures.
What types of surgeries is the YR02147 best suited for?
The YR02147 is particularly well-suited for gynecological surgeries, including cervical procedures, as well as plastic and ENT surgeries, where precise cutting and coagulation are crucial.
Can the YR02147 be used for outpatient procedures?
Yes, the efficiency and precision of the YR02147 make it ideal for outpatient surgeries where reduced recovery times are essential. Surgeons can perform procedures with confidence in the generator's capabilities.
What maintenance is required for the YR02147?
Regular maintenance includes checking and replacing consumables, ensuring the device is clean and calibrated, and conducting periodic functional tests. Following the manufacturer's guidelines will extend the device's lifespan and maintain optimal performance.
Where can I find replacement parts for the YR02147?
Replacement parts and consumables for the YR02147 are typically available through authorized distributors and medical equipment suppliers. It is important to use genuine parts to ensure compatibility and performance.
Conclusion
As demonstrated, the YR02147 Electrosurgical Generator is a sophisticated tool that combines advanced technology with practical applications in various surgical fields. Understanding its operating principles and specifications is critical for maximizing its effectiveness in clinical settings.
