Understanding the Operating Principle and Scientific Foundation of the YR01800-1 Pocket pH Meter

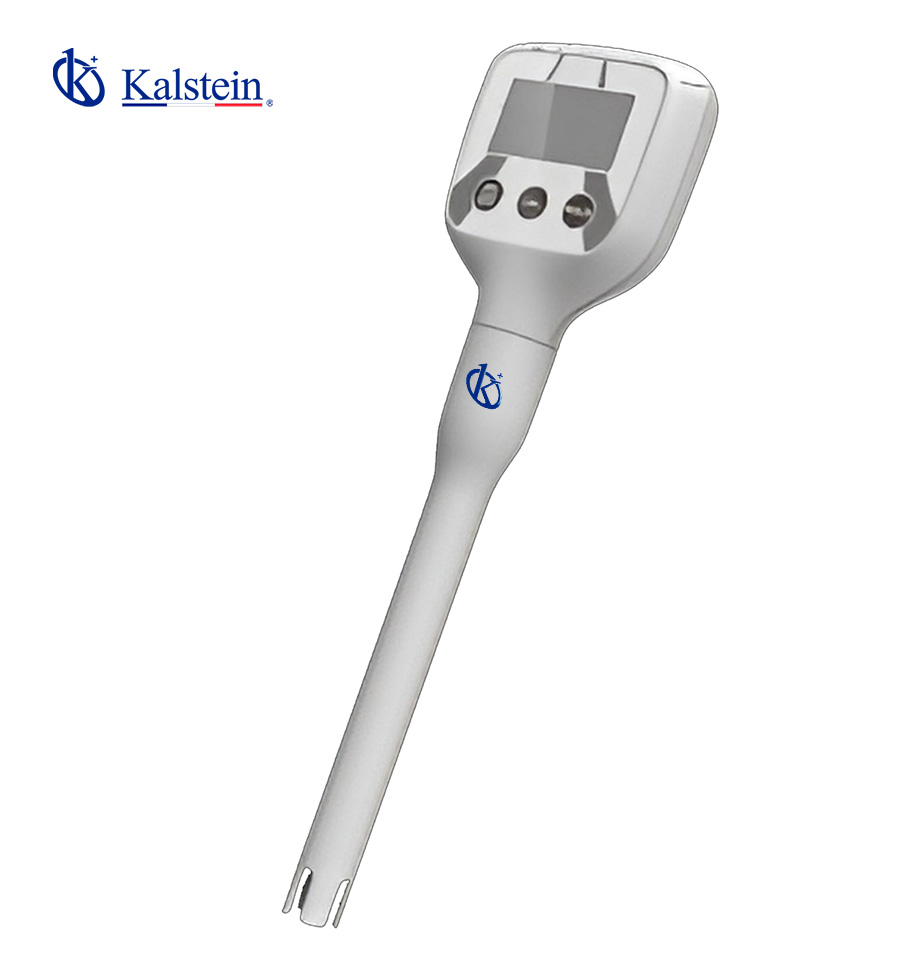

The YR01800-1 Pocket pH Meter is a compact and portable instrument designed for accurate pH measurements in various settings. It incorporates advanced technology and scientific principles to ensure reliable results. This article delves deep into the operating principles of the YR01800-1, offering insights into its functionality and scientific foundation.
Operating Principle of the YR01800-1 Pocket pH Meter
The YR01800-1 operates on the principle of measuring the electrical potential difference between two electrodes immersed in a solution. When the glass electrode of the meter is placed in a solution, it develops a potential that varies with the concentration of hydrogen ions (H+) in that solution.
According to the Nernst equation, the voltage output from the electrode is directly related to the pH level of the solution. The meter translates this voltage into a pH value through calibration and compensation processes. This method ensures high accuracy and reliability in pH readings.
Key Features of the YR01800-1
The design of the YR01800-1 is tailored to enhance usability and portability. Here are its notable features:
- Automatic Calibration: The meter supports 1 to 3 point calibration, using standard buffers at pH values of 4.00, 7.00, and 9.18 for increased accuracy.
- Robust Design: With an IP57 rating, the YR01800-1 is water and dust resistant, making it suitable for challenging environments.
- Intelligent Functions: Features such as automatic shut-off and low battery alarm ensure ease of use and reliability during operation.
Technical Specifications of YR01800-1
| Specification | Details |
|---|---|
| Model | YR01800-1 |
| Measuring Range | -1.00 to 15.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ±0.2 pH / ±0.05 pH |
| Temperature Compensation | 0 to 60°C |
| Calibration | 1-3 Points (pH 4.00/7.00/9.18) |
| Power Source | 2 x Lithium batteries (CR2032) |
| Humidity | 85% |
| IP Grade | IP57 |
| Dimensions | 148×29×14mm |
| Included Items | 1) pH Meter, 2) Standard Buffer Solution, 3) Replaceable Batteries |
Calibration Process for YR01800-1
Calibration is crucial for maintaining the accuracy of the YR01800-1. Here’s how to perform it:
- Start by turning on the meter and ensuring it is clean.
- Immerse the pH electrode in the first calibration buffer (usually pH 7.00).
- Allow the reading to stabilize, then press the calibrate button.
- Rinse the electrode with distilled water before moving to the next buffer solution.
- Repeat the process with pH 4.00 and/or 9.18 as necessary, depending on your calibration choice.
Ensure to perform calibration at the temperature of the solution being measured for optimal results.
Common Troubleshooting Techniques
Like any electronic device, the YR01800-1 may encounter issues. Here are common symptoms and their solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Device does not power on | Dead batteries | Replace with new CR2032 batteries |
| Inconsistent readings | Electrode needs calibration | Re-calibrate using standard buffers |
| Error code E-03 | Possible electrode malfunction | Check electrode connection or replace electrode |
Understanding pH Measurements
Interpreting the pH readings on the YR01800-1 is essential for accurate data analysis. pH is a scale used to specify the acidity or basicity of an aqueous solution. Here’s how to interpret the readings:
- Acidic Solutions: pH < 7 indicates acidity, common in many biological and chemical processes.
- Neutral Solutions: pH = 7 is neutral, e.g., pure water.
- Basic Solutions: pH > 7 indicates alkalinity, important in industrial applications and environmental monitoring.
Frequently Asked Questions
What are the main applications of the YR01800-1 Pocket pH Meter?
The YR01800-1 is widely used in various fields such as laboratories, educational settings, agriculture, and water quality testing, providing precise pH measurements that are essential for various analyses.
How often should I calibrate the YR01800-1?
Calibration frequency depends on the usage frequency and the precision required, but it is recommended to calibrate the YR01800-1 before each use or at least once daily if used frequently.
What is the ideal temperature range for using the YR01800-1?
The ideal operating temperature range for the YR01800-1 is between 0°C and 60°C. Measurements outside this range can lead to inaccuracies.
Can I replace the electrode of the YR01800-1?
Yes, the electrode of the YR01800-1 is replaceable, which enhances the longevity and usability of the meter.
What maintenance is required for the YR01800-1?
Regular maintenance includes cleaning the electrode with distilled water after use, proper calibration, and ensuring that the batteries are replaced when low to maintain accuracy.
Is the YR01800-1 waterproof?
Yes, the YR01800-1 has an IP57 rating, making it resistant to water and dust, allowing it to be used in various environments without concern for damage.
How can I request a quote for the YR01800-1?
To request a quote for the YR01800-1, simply visit our online platform, where you can find detailed information and submit your request for pricing.
