What is surgical light?
Surgical lights are lighting devices used primarily in surgery. These lamps provide a homogeneous light, without shadows, on the area to be operated on..
Operation Lamp
The illumination of an operating room is essential for doctors to develop their interventions correctly, allowing to guarantee the health of patients. All lighting depends on the environment and maintains a correct clarity without generating any glare, in addition to avoiding eye fatigue for optimal medical performance.
In general terms, lighting should provide luminosity levels that allow for visual adaptation, so it is recommended that in the area of the operating table, average illumination of 2000 lux while in the room, average illumination of 1000 lux should be ensured.
Types of Operating Lamp that an Operating Room may need

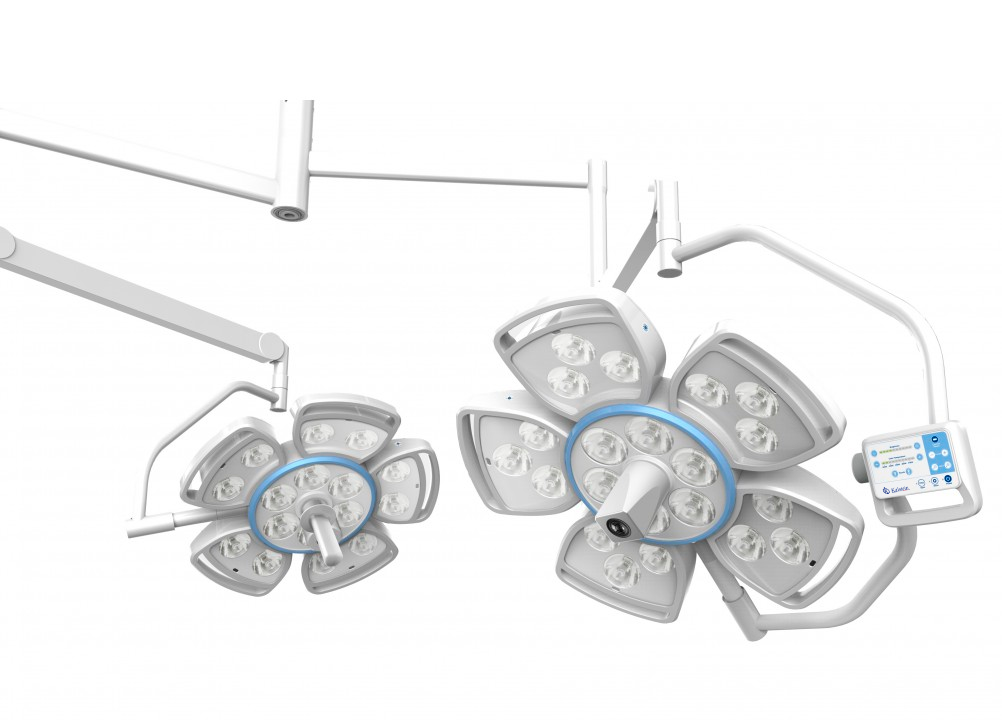

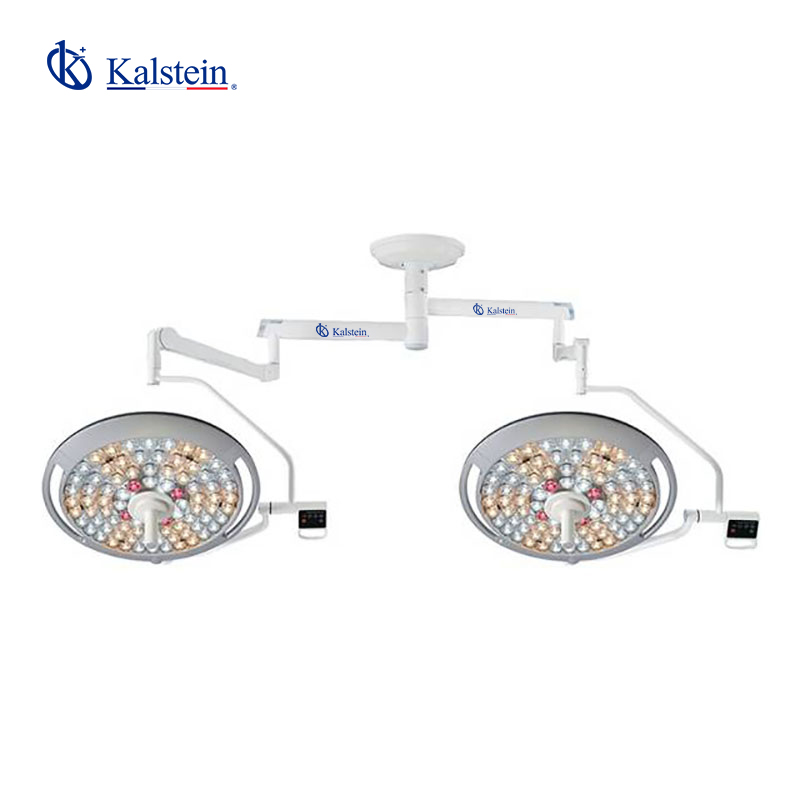

Operation Lamp YR02106
Light sources with four colors( Green, Amber, Red and Warm/Cold White) are mixed excatly where it is created (in the...

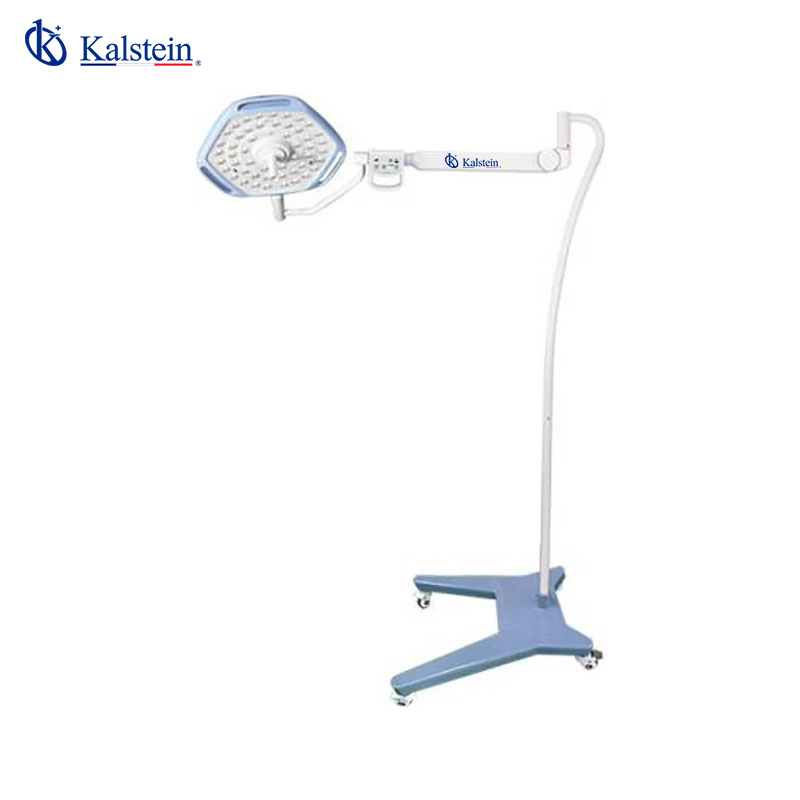

Operation Lamp YR02115
As an innovator and a pioneer in modern shadowless operation light industry, al Kalastein incorporates...

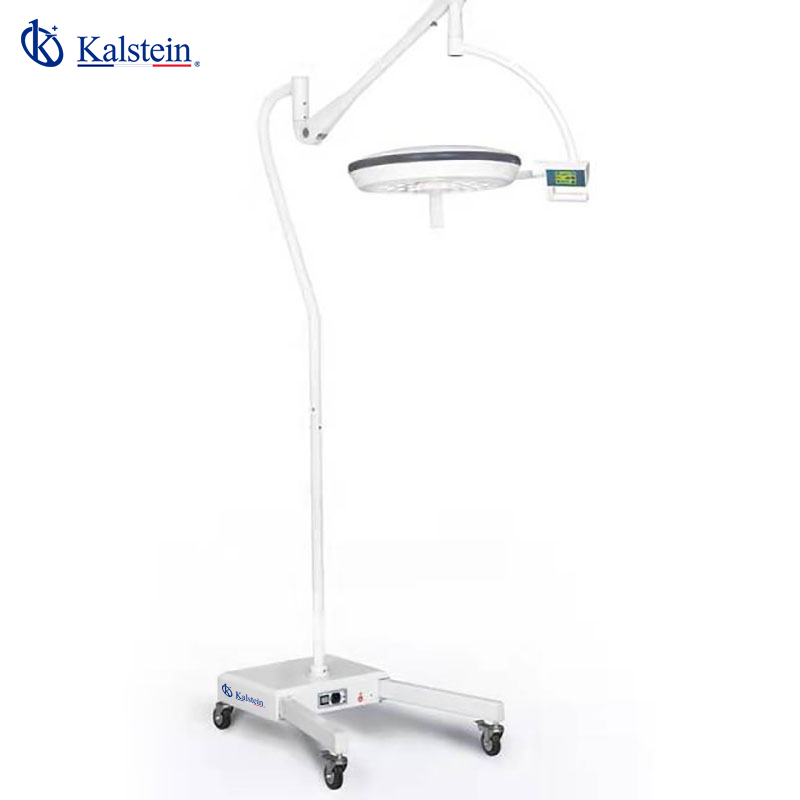

Operation Lamp YR02125
The quantum leap becomes especially apparent in modern operating room, with criteria for safety, efficiency...
Operation Lamp YR05996 // YR06004
The quantum leap becomes particularly evident in the modern operating room...
Our Top Selling Operating Lamp
- As an innovator and a pioneer in modern shadowless operation light industry, al Kalastein incorporates LED (Light Emitting Diode) and Beam Sharper technologies into product development of YR series. Complementing its excellent YR surgical lights, Kalstein now has the most extensive selection of products for illuminating the surgical field that can serve the most diverse surgical situations.
| Model | YR02115 | YR02116 | YR02117 | YR02118 | YR02119 |
| Light head diameter (cm) | 80 | ||||
| LED quantity | 150 | ||||
| Central // luminance (Klux) | 140-160 | ||||
| Color temperature (K) | 4300 (5100 Optional) | ||||
| Point field (d10) (mm) | 160-320 | ||||
| d10 / d50 | > = 50% | ||||
| CRl (Ra) | 95 | ||||
| Shadow dilution with tube | 0.95 | ||||
| Shadow dilution with 1 mask | 0.75 | ||||
| Shadow dilution with 2 masks | 0.6 | ||||
| Shadow dilution with tube and 1 mask | 0.7 | ||||
| Shadow dilution with tube and 2 masks | 0.55 | ||||
| Illumination depth (L1 + L2) (mm) | ≥800 | ||||
| Radiant energy (Wlm’xLux) | 4 | ||||
| Bulb Life (hours) | fifty | ||||
| Additional characteristics | LED, ceiling mount, Φ80cm and Φ80cm | LED, ceiling mount, Φ80cm and Φ80cm, imported suspension arm | LED, ceiling mount, Φ80cm | LED, ceiling mount, Φ80cm, imported suspension arm | LED, ceiling mount, Φ80cm and Φ60cm |
| Model | YR02120 | YR02121 | YR0222 | YR02123 | |
| Light head diameter (cm) | 80 | 60 | |||
| LED quantity | 150 | 90 | |||
| Central // luminance (Klux) | 140-160 | 120-140 | |||
| Color temperature (K) | 4300 (5100 Optional) | ||||
| Point field (d10) (mm) | 160-320 | ||||
| d10 / d50 | > = 50% | ||||
| CRl (Ra) | 95 | ||||
| Shadow dilution with tube | 0.95 | ||||
| Shadow dilution with 1 mask | 0.75 | 0.73 | |||
| Shadow dilution with 2 masks | 0.6 | ||||
| Shadow dilution with tube and 1 mask | 0.7 | 0.68 | |||
| Shadow dilution with tube and 2 masks | 0.55 | ||||
| Illumination depth (L1 + L2) (mm) | 4 | ||||
| Radiant energy (Wlm’xLux) | 4 | ||||
| Bulb Life (hours) | fifty | ||||
| Additional characteristics | LED, ceiling mount, Φ80cm and Φ60cm, imported suspension arm | LED, ceiling mount, Φ60cm | LED, ceiling mount, Φ60cm and Φ60cm | LED, mobile, Φ60cm, without batt | |
Analysis of the best Operating Lamp for an Operating Room
How are operating lamps used?
Operating room lamps are used to optimize and obtain a maximum clear display within the operating field, with the...
What are the parts of a cialitic lamp?
The cialitic lamp is an ideal equipment to project bright light in the operating room area, and with a whole...

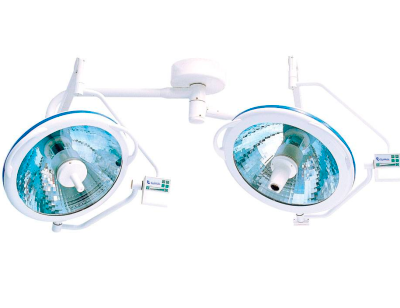

Operation lamps: types and models
The lighting of an operating room is one of the essential aspects to consider to achieve success in any...
Surgical gas discharge lamps?
First of all, gas discharge lamps, made of halogen gas and quartz glass, are resplendent and provide a very intense and bright white light. For years, they were..
UPDATED KALSTEIN
Guides to become an expert in Operating Lamp
Operating Lamp equipment are essential products in an Operating Room we provide guides and recommendations for better use, so you can work as an expert.
.What type of lighting should an Operating Room have?
Firstly, the importance of lighting in operating rooms is a fundamental element for a correct surgical intervention...
What are the standars for lighting an Operating room?
The illumination of an operating room is essential for doctors to develop their interventions correctly, allowing to guarantee .
What are the types of lights for an Operating Room?
The use of lights within the surgical space should be designed primarily, within the operating rooms that exist.
Frequently Asked Questions about Operating Lamps from our customers
How do you know the prices of the Operating Lamp?
To know the price of the Lamp of Operation we invite you to send us an email with your request through the contact form.
What are the delivery times of the Operating Lamp?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
Equipment in stock:
- Delivery Time (Air): 15-30 days.
- Delivery Time (Maritime): 45-60 days.
Equipment not in stock:
- Delivery Time (Air): 30-60 days.
- Delivery Time (Maritime): 60-90 days.
How to make a purchase of the Operating Lamp ?
You can make your purchase through:
- By email: sales@kalstein.eu
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
All Kalstein equipment has a 1-year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or by uses other than those specified by the manufacturer. Warranty excludes electrical or consumable parts. For more information visit our “terms and conditions” by clicking HERE
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
