Patient and Fetal Monitor
An infant monitor is responsible for collecting, displaying and storing all the patient's vital signs, and each of these parameters are displayed separately on the monitor. When one is below or above normal for the patient's age, or any other adverse activity is generated, an alarm is activated to notify health personnel. These alarms are visual and audible, although they can be easily silenced if you are trying to solve the problem that caused them.
They are especially useful devices when the infant patient is subjected to anesthesia, medication or any other treatment that determines the need for blood, medication variation or volume substitute, such as a plasma expander.
![YR02177-2-1.jpg](https://kalstein.co.nz/wp-content/uploads/2023/06/YR02177-2-1-350x350.jpg)
Types of Patient and Fetal Monitor tha the Medical Sector May Need
![YR02176-1-2.jpg](https://kalstein.co.nz/wp-content/uploads/2023/06/YR02176-1-2-250x250.jpg)
Patient Monitors YR02176
8.4 inch touchscreen; Embedded handle; Able to use module; 1.6kg of weight; 5 hours of battery life; No-fan...
![YR02170-2.jpg](https://kalstein.co.nz/wp-content/uploads/2023/06/YR02170-2-250x250.jpg)

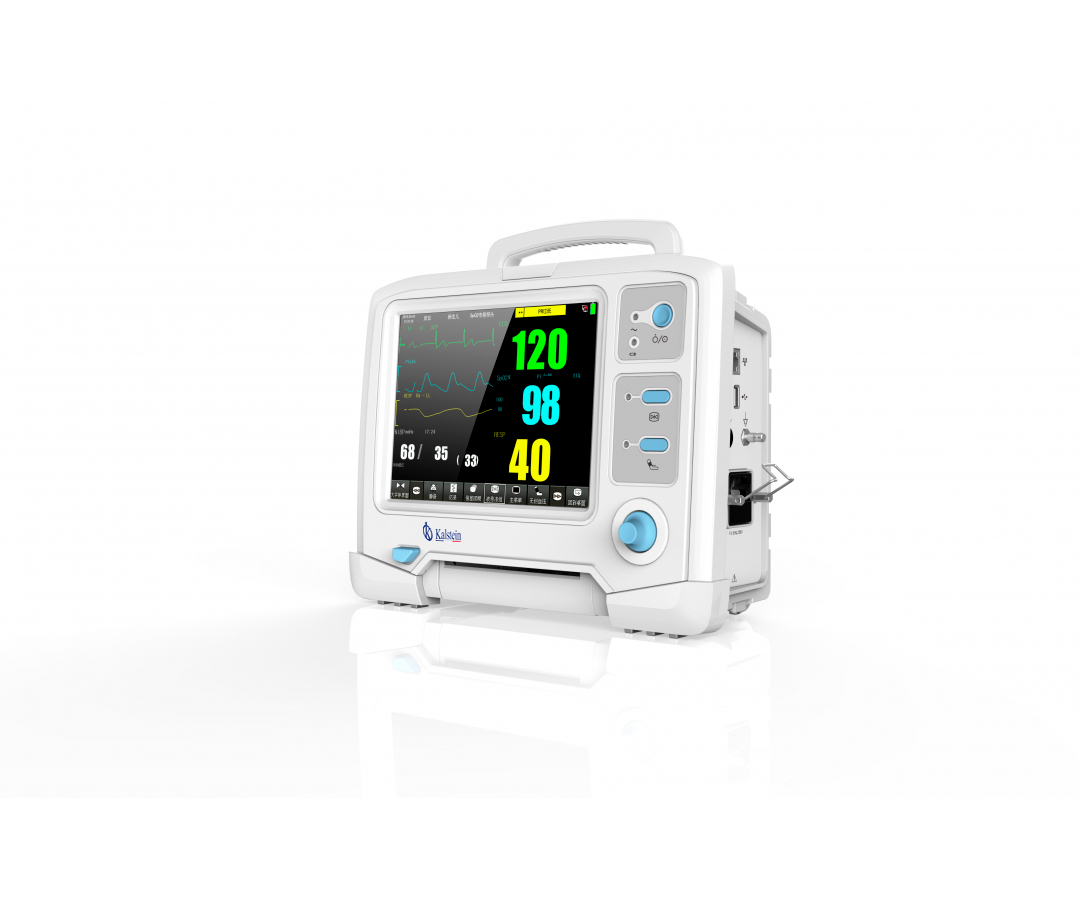

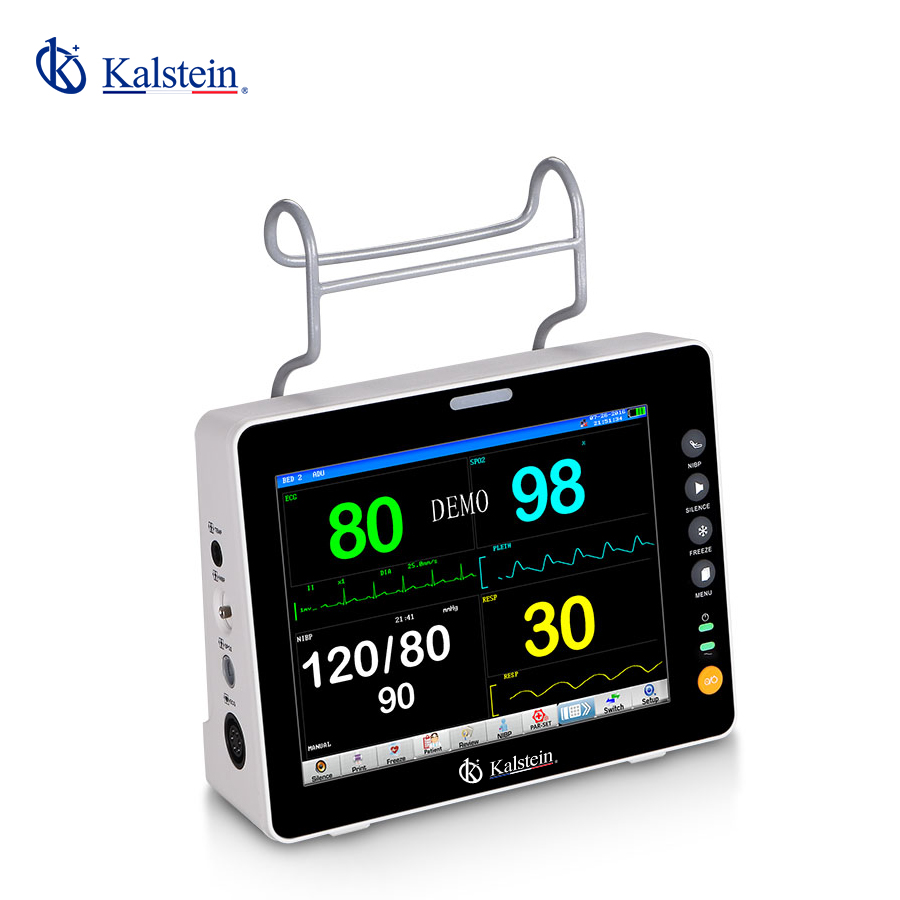

Patient Monitors YR02170
NICU Monitor. Devised specillay for neonatal. 8.4 inch touch screen,ECG (3 lead), Suntech NIBP, Masimo SpO2 ...
![YR02178-YR02179.jpg](https://kalstein.co.nz/wp-content/uploads/2023/06/YR02178-YR02179-250x250.jpg)

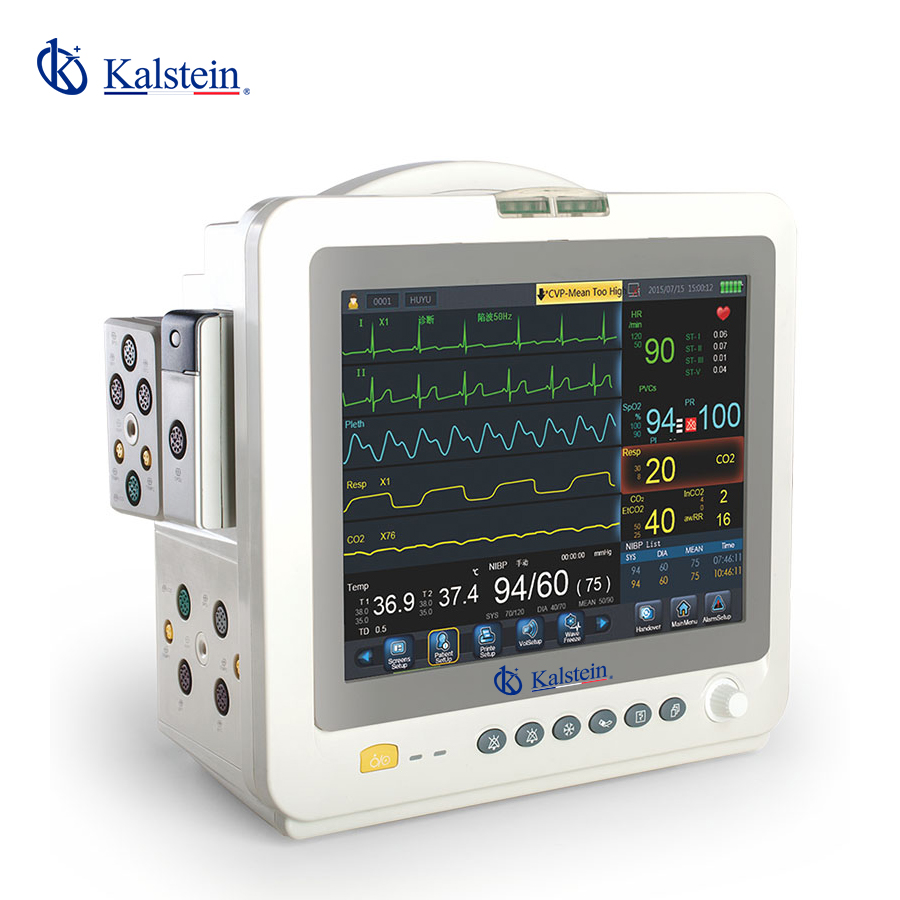

Multi-parameter YR02178
Monitoring of adults, children and newborns is supported;Slim body with hidden handle, easy to move;Visual and...
![YR02177-2-1.jpg](https://kalstein.co.nz/wp-content/uploads/2023/06/YR02177-2-1-250x250.jpg)

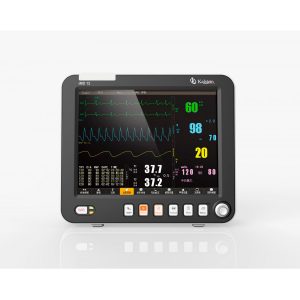

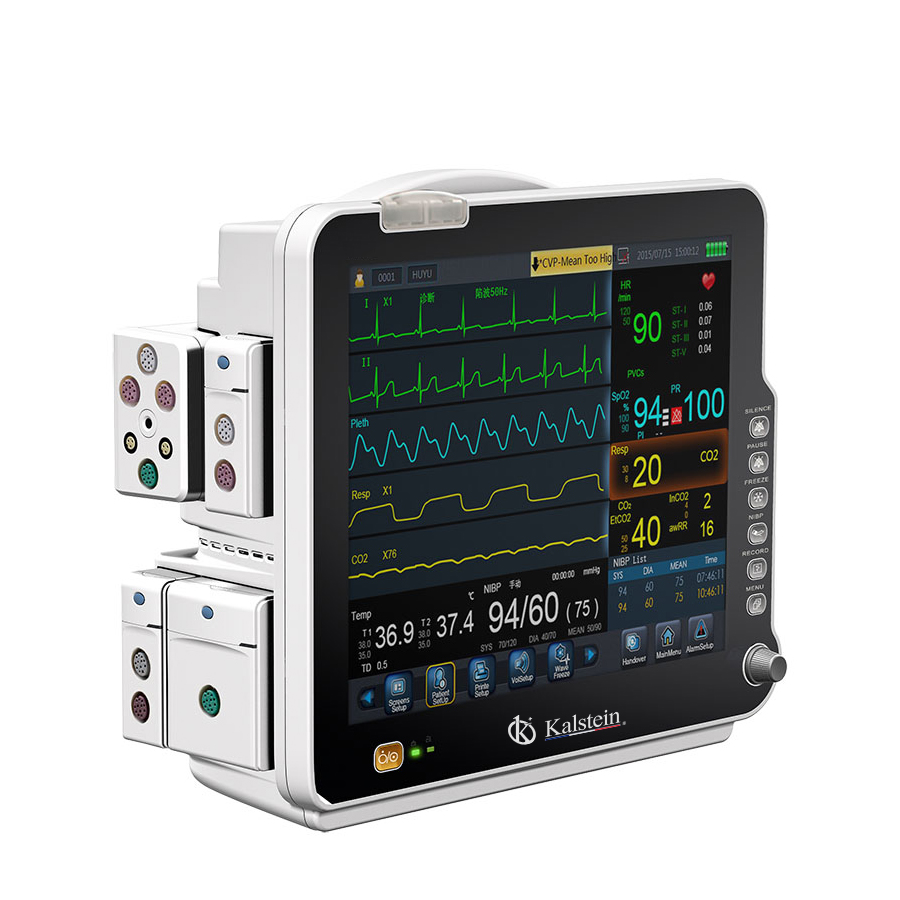

Multi-parameter YR02177
Lithium battery inside;No-fan design, match the requirements of multi-patient ward;Able to save data when power ...
Our Best Selling Patient and Fetal Monitor
12.1 inch high resolution LCD display; 35 million clicking times long life touch screen with Accutouch technology; Maximum 168 hours graphic and tabular trends of all parameters; Adjustable respiration lead helps to get accurate RESP reading for different patients; 120mm slim design which is modern and saving place; 112mm removable wide range printer can output 7 waveforms simultaneously.
- 12.1 inch high resolution LCD display;
- 35 million clicking times long life touch screen with Accutouch technology;
- Maximum 168 hours graphic and tabular trends of all parameters;
- Adjustable respiration lead helps to get accurate RESP reading for different patients;
- 120mm slim design which is modern and saving place;
- l112mm removable wide range printer can output 7 waveforms simultaneously.

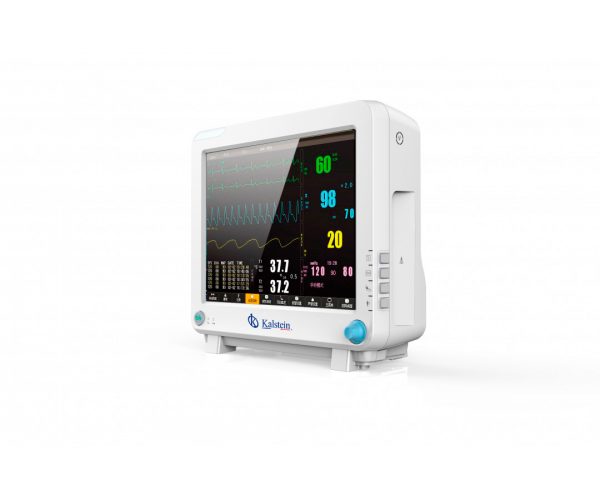

Model | YR02173 |
ECG | |
Lead type | 3 leads or 5 leads selectable |
Input | 3-conductor cable: RA; THE; LL or R; L; F |
Lead selection
|
3 leads: I, II, III |
Slead: I, Il, Ill, V, AVR, AVL, AVF | |
ECG waveform | 2 channels |
To win | x0.25, x0.5, x 1, x2, x4, Automatic |
Sweep speed | 12.Smm / s, 25mm / s, 50mmls |
Broadband
|
Diagnostic mode: 0.05-100Hz |
Monitor mode: 0.5-40Hz | |
Surgical mode: 1.0-25Hz | |
Defib. Protection
|
Supports voltage of 5000VAC / 50Hz in isolation |
Against electrosurgical interference and defibrillation | |
ST segment detection
|
Measurement range: -2.0 mv to 2.0 mv |
Alarm range: -2.0 mv to 2.0 mv | |
Arrhythmia analysis | Yes |
Rhythm detection | Yes |
Calculation of drug dose | Yes |
Standby mode | Yes |
Heart rate | |
Distance
|
Newborn: 15-350 rpm |
Adult / pediatric: 15-300 rpm | |
Precision | 1 bpm or 1%, whichever is greater |
Resolution | 1 bpm |
Alarm range
|
Newborn: 15 ~ 350 rpm |
Adult / pediatric: 15-300 rpm | |
Breathing | |
Method | Thoracic impedance |
Measuring range
|
Newborn / Pediatric: 0-150 rpm |
Adult: 0-150 rpm | |
Apnea alarm | Yes, no alarm, 1 Os, 15 s, 20 s, 25 s, 30 s, 35 s, 40 s selectable |
Resolution | 1 rpm |
Sweep speed | 6.25mm / s, 12.5mm / s, 25mm / s |
NIBP | |
Method | Oscillometric |
Modes of operation | Manual.Auto.STAT |
Parameters | Systolic, Middle Diastolic |
Systolic pressure range
|
Adult: 40-270 mmHg |
Pediatric: 40-200 mmHg | |
Newborn: 40-135 mmHg | |
Diastolic pressure range
|
Adult: 10-210 mmHg |
Pediatric: 10-150 mmHg | |
Newborn: 10-100 mmHg | |
Medium pressure range
|
Adult: 20-230 mmHg |
Pediatric: 20-165 mmHg | |
Newborn: 20-110 mmHg | |
Precision | ± 6 mmHg (± 0.80 kpa) |
Resolution | 1 mmHg |
Overpressure protection | Double safety protection |
![YR02173-1.jpg](https://kalstein.co.nz/wp-content/uploads/2023/06/YR02173-1-350x350.jpg)
Analysis the best Patient and Fetal Monitor for the Medical Sector
![medical-hospital-ekg-monitor-2022-11-02-17-20-13-utc](https://kalstein.co.nz/wp-content/uploads/2022/12/medical-hospital-ekg-monitor-2022-11-02-17-20-13-utc-300x300.jpg)
Ways to use a patient monitor
A patient monitor is an electronic device used in hospitals and clinics to monitor vital signs of patients who are in critical condition or who must ...
![Vital signs monitor with senior patient relaxing in the background](https://kalstein.co.nz/wp-content/uploads/2022/12/vital-signs-monitor-with-senior-patient-relaxing-i-2021-08-28-16-44-27-utc-300x300.jpg)
Monitoring protocol for patients in critical condition
Lorem Ipsum es simplemente el texto de relleno de las imprentas y archivos de texto. Lorem Ipsum ha sido el texto...
![Geriatrician performing routine check of patient vital signs](https://kalstein.co.nz/wp-content/uploads/2022/12/geriatrician-performing-routine-check-of-patient-v-2022-11-17-08-19-42-utc-300x300.jpg)
Patient monitor: rules for use
A patient monitor is a medical device that collects and stores the patient’s vital signs, which together with alarm systems process and...
![Medical team monitoring patient vital checking heart rate helping with fluids](https://kalstein.co.nz/wp-content/uploads/2022/12/medical-team-monitoring-patient-vital-checking-hea-2021-09-02-10-55-23-utc-300x300.jpg)
Parameters Measured by a Patient Monitor
A patient monitor is medical equipment designed to monitor the vital physiological signs of adult patients and...
Patient and fetal Monitor models catalog
-
Doppler Ultrasound Fetal Monitor YR02181
-
Bedside Monitor YR02174
-
Doppler Fetal Monitor YR02180
-
Patient Monitor YR02175
-

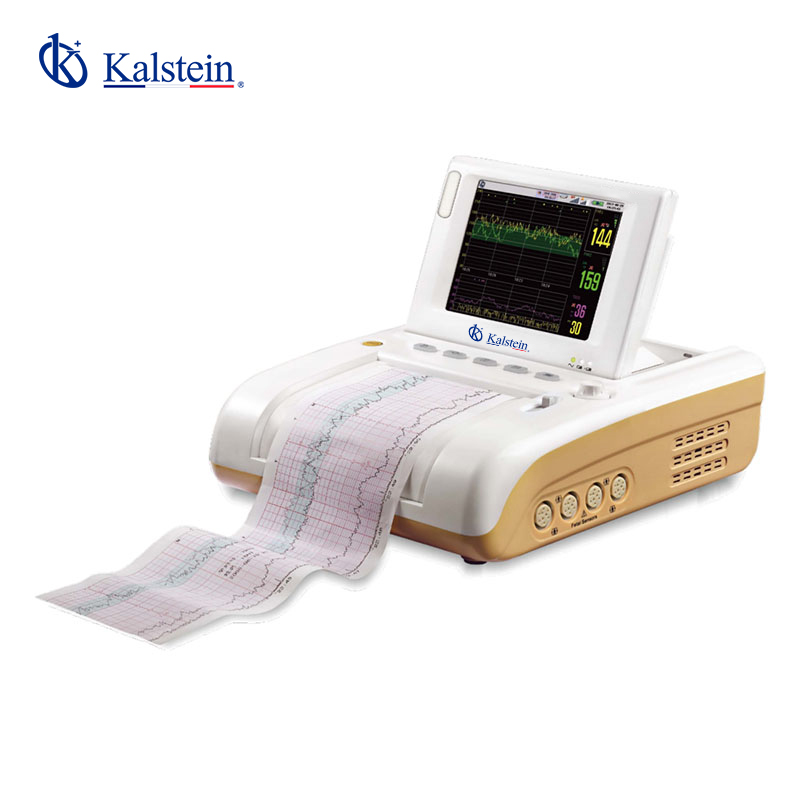

Fetal Monitor YR02190B
-
Patient Monitors YR02170 // YR02171 // YR02172
Select options This product has multiple variants. The options may be chosen on the product page -
Patient Monitors YR02176
-

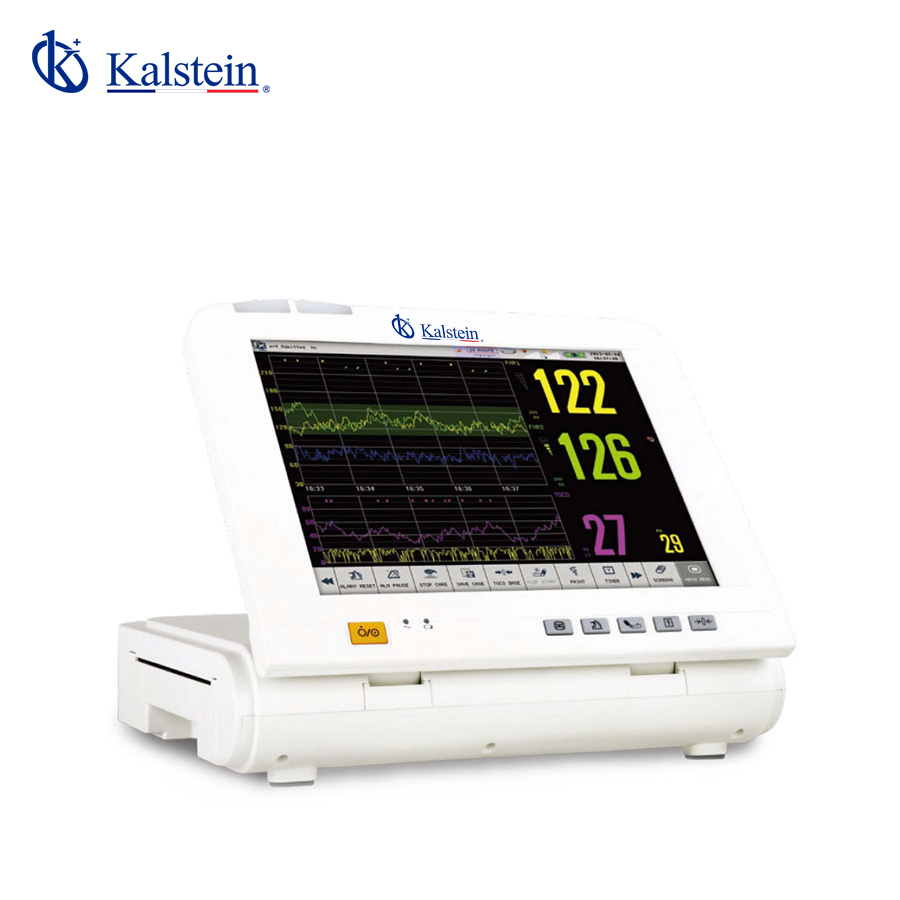

Fetal Monitor YR02190C
Guides to becoming an expert in Patient and Fetal Monitor
Patient Monitor and child Monitors: different applications
A patient monitor is medical equipment that continuously detects, processes and displays the patient’s physiological .
Patient Monitor, How To Read On A Vital Signs Monitor?
This medical equipment, needed in clinics and hospitals, is used to monitor and control the vital signs of the patient...
How are vital signs controlled through a Patient Monitor?
Through the control and management of vital signs, it is necessary to obtain information about the physiological state...
Methods of Nutritional Assessment of Children with the use of Multiparameter Monitors
The use of multiparameter monitors has been standardized in the industry and in clinical practice in recent years. These devices are expected to become increasingly popular in the coming years, as they offer a cost-effective and convenient way to monitor people’s health and well-being...
![15x16,03 cm (1)](https://kalstein.co.nz/wp-content/uploads/2023/06/15x1603-cm-1-80x91.png)
Frequently Asked Questions about Patient and fetal Monitor
How to know the prices of Patient and Fetal Monitor?
To know the price of Patient and fetal Monitor we invite you to send us an email with your request through the contact form.
What are the delivery times of Patient and Fetal Monitor?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Patient and Fetal Monitor?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
