Automatic Lifting Door Pulsating Vacuum Autoclave YR05688 // YR05691

ManufacturerKalstein

Description

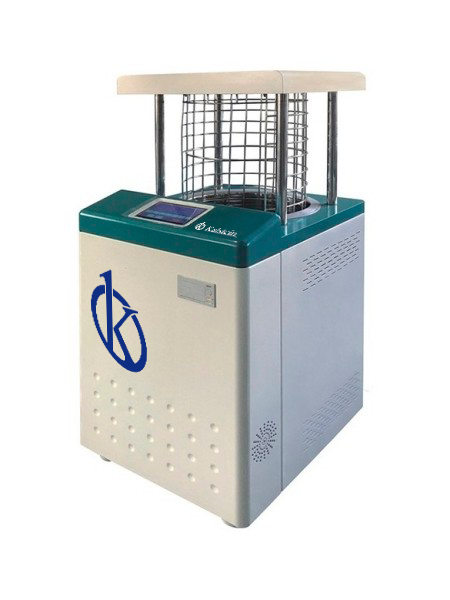

The Pulsating Vacuum Autoclave with Automatic Lifting Door YR05688 // YR05691 is an advanced and efficient solution for sterilization in various environments. Equipped with a 7-inch capacitive color LCD touchscreen, this autoclave offers fully automatic control and is easy to operate. Its lift-type door facilitates the loading and unloading of objects, enhancing user convenience and safety. The system dynamically displays temperature, pressure, time, vacuum rate, drying, alarms, water level, and the complete cycle. From water intake to vacuum drying, the entire procedure is performed automatically with a single button, ensuring residual moisture below 0.2%. Additionally, it features seven sterilization cycles, including specialized tests like BOWIE & DICK and vacuum leak testing, adapting to various instruments and materials.

Market Price

The Pulsating Vacuum Autoclave YR05688 // YR05691 is priced between $9,000 and $15,000 USD, depending on the model and specific features. This range reflects the equipment’s high quality and advanced technology, making it a valuable investment for medical and research institutions. The more advanced models offer additional features that make them ideal for environments with higher sterilization demands. To obtain a personalized quote tailored to your needs, we recommend using the Kalstein Plus platform, which facilitates the request and automatic quotation generation process.

Frequently Asked Questions

  • What is the capacity of the autoclave?
    The autoclave is available in sizes of 60L, 80L, 100L, and 120L, adapting to different sterilization volume needs.
  • What safety measures does the autoclave include?
    The equipment features a safety interlock door, protection against overheating and overpressure, and an automatic release safety valve, among other safety features.
  • How long does the sterilization cycle take?
    The sterilization time is adjustable between 0 and 99 minutes, allowing flexibility according to specific requirements.

Advantages and Disadvantages

The Pulsating Vacuum Autoclave YR05688 // YR05691 offers numerous advantages. Its fully automatic operation and touchscreen make daily use easy. The automatic lifting door enhances accessibility and safety. Its 304 stainless steel construction ensures durability and corrosion resistance. However, its weight can be a disadvantage, as the larger models can weigh up to 325 kg, which might hinder mobility.

Product Use in the Field

In practice, this autoclave is ideal for clinics, laboratories, and hospitals that require efficient and safe sterilization. It is used to sterilize medical and laboratory instruments, textiles, rubber, liquids, and more. Its ability to perform specialized tests and its robust design ensure that sterilization procedures meet the highest standards of hygiene and safety. Additionally, its internal steam and water circulation system keeps the environment clean and dry, with no steam discharge.

Recommendations

To maximize the performance of the Pulsating Vacuum Autoclave YR05688 // YR05691, it is essential to follow the manufacturer’s maintenance recommendations. This includes regular cleaning of the sterilization chamber, checking the safety systems, and performing functionality tests before each cycle. Additionally, be sure to use the included accessories, such as drainage hoses and stainless steel baskets, to maintain the equipment’s efficiency.

If you are interested in purchasing the Pulsating Vacuum Autoclave YR05688 // YR05691 and would like more details about its price and specifications, we invite you to request a quote or generate an automatic quote through the Kalstein Plus platform. This tool will provide you with the necessary information quickly and efficiently, ensuring that you receive the ideal equipment to meet your specific sterilization needs. Do not miss the opportunity to enhance your process efficiency with superior quality equipment and advanced technology.

Safety Protection Device

  • Heater protection
  • Anti-dry heating
  • Safety interlock door: The program can’t start up when the door is unlocked under normal condition. Door is locked and the door can’t open when pressure in chamber.
  • Over-temperature protection: Adapt PT100 with accuracy class A for temperature control in chamber, collect temperature data in real-time, protect and alarm when temperature higher than default value.
  • Over-pressure protection: The relief valve starts to release pressure automatically when the pressure in chamber and steam generator exceed the default value.
  • Automatic release safety valve.
  • Over current protect.
  • Electric safety protective device: Fuse protects control units when short circuit or overload occurs.
  • Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.
  • Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.

Technical Specifications

Model YR05688 YR05689 YR05690 YR05691
Max. Working pressure 0.23Mpa
Working pressure 0.22Mpa
Working temperature range 105 – 134℃
Vacuum rate -0.081Mpa
Accuracy of temperature display 0.1℃
Sterilization time 0 – 99 min
Drying time 0 – 99 min
Heat average ≤±1℃
Type  Vertical Pulsating Vacuum Autoclave
Class Class B
Control Microprocessor
Door  Automatic lifting door
Display LCD color touch screen display
Drying system Vacuum drying
Steam generator Separate steam generator
Vacuum pump Yes
Sterilization program Liquid, Instrument, Textile, Rubber, User-defined, Vacuum leakage test, B & D test
Water tank Yes
Printer Yes
Sterilization box 2 PCS
Language  English
Voltage 220V, 50Hz, single-phase
Chamber Size(mm) 60L / Ø396×490 80L / Ø396×650 100L / Ø480×560 120L / Ø480×660
Outer Size(mm) 686×556×913 686×556×1035 840×600×970 840×600×1060
Packing Size(mm) 786×656×1013 786×656×1135 940×610×1000 940×610×1075
G.W. / N.W. 210/180 kg 230/200 kg 300/270 kg 325/ 295 kg
Power 5.4 KW 5.4 KW 6.0 KW 6.0 KW

Additional information

Weight N/A
Dimensions N/A
Model

YR05688, YR05689, YR05690, YR05691
