Description

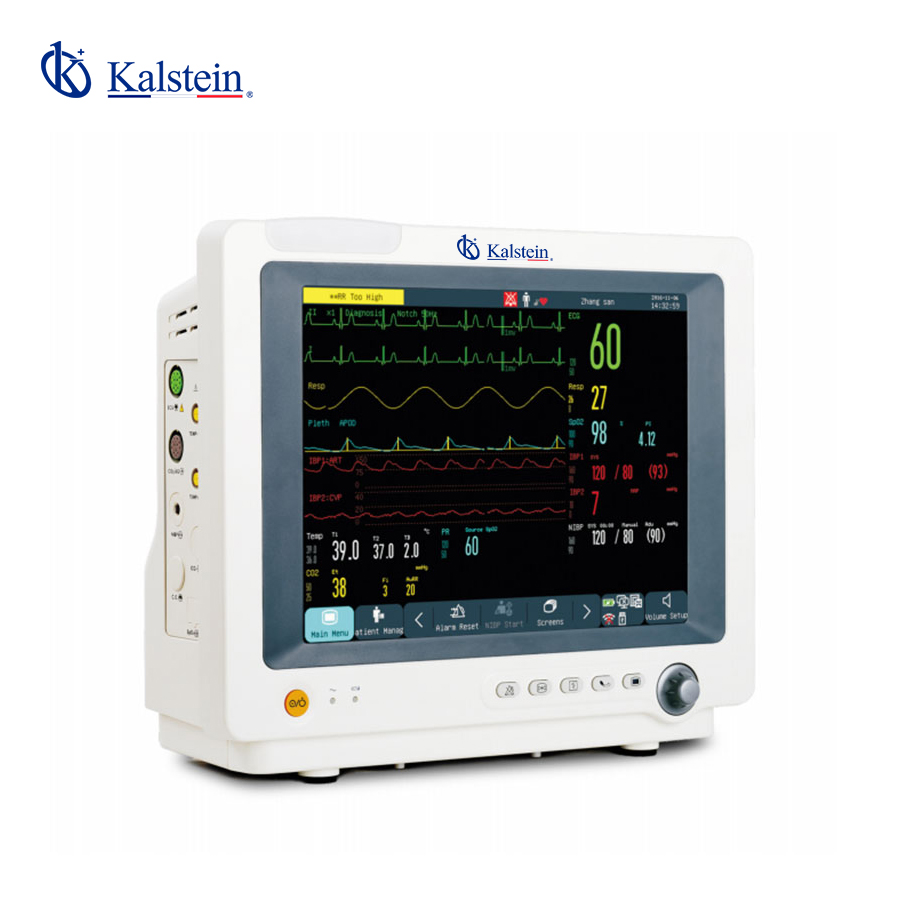

The Bedside Monitor YR02173 is a state-of-the-art patient monitoring device with a 12.1-inch touch screen, designed to deliver accurate and reliable data for effective patient care. Featuring a comprehensive parameter set including 5-lead ECG, temperature monitoring, and COMEN SpO2 among others, this device ensures that medical professionals have access to critical patient information at their fingertips. The dual monitoring capabilities, such as EtCO2 and IBP, combined with advanced analysis options including C.O. and BIS, make this monitor a versatile tool in any medical environment.
Market Price
The market price for this type of bedside monitor typically ranges between $2000 and $2800. This range reflects the advanced technology and comprehensive functionalities that the YR02173 offers, providing excellent value for its capabilities.
Frequently Asked Questions
- What type of screen does the Bedside Monitor YR02173 have? The device features a 12.1-inch touch screen, making navigation intuitive.
- Can this monitor measure SpO2 using a specific brand technology? Yes, it supports both Nellcor and Masimo technologies for SpO2 measurement, ensuring flexibility and precision.
- Is the bedside monitor portable? Yes, it can be mounted on a trolley or a wall, providing versatile options for different medical settings.
Advantages and Disadvantages
The YR02173 stands out for its multi-parameter capabilities and ease of use with a touch screen. The inclusion of advanced features such as dual IBP measurement and BIS analysis provides a comprehensive monitoring solution. However, the extensive feature set may require a learning curve for new users unfamiliar with high-end monitoring systems.
Product Use in the Field
In practical settings, the Bedside Monitor YR02173 is invaluable for continuous patient monitoring in hospitals, clinics, and intensive care units. It provides real-time data that is essential for timely medical intervention and decision-making. The portable design with trolley and wall mounting options ensures adaptability across various healthcare environments.
Recommendations
To maximize the usability of the Bedside Monitor YR02173, regular calibration and maintenance checks are recommended. Familiarization with the interface and parameter settings can enhance efficiency and data interpretation accuracy during patient assessments. Accessing and understanding software updates can also optimize performance and introduce new features.
Features
- 12.1-inch touch screen
- 5-lead ECG, RESP, Temp (Single Channel), COMEN SpO2, NIBP, HR
- Dual-IBP, EtCO2, AG, ICG, C.O., BIS, Nellcor/Masimo SpO2
- 3/12-lead ECG, Thermal Recorder, Dual-Temp, Suntech NIBP
- Trolley and wall mount options
Technical Specifications
| Model | YR02173 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 15~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | About 1 Second. | |
| Average Time Constant | <10 Second. | |
