Description

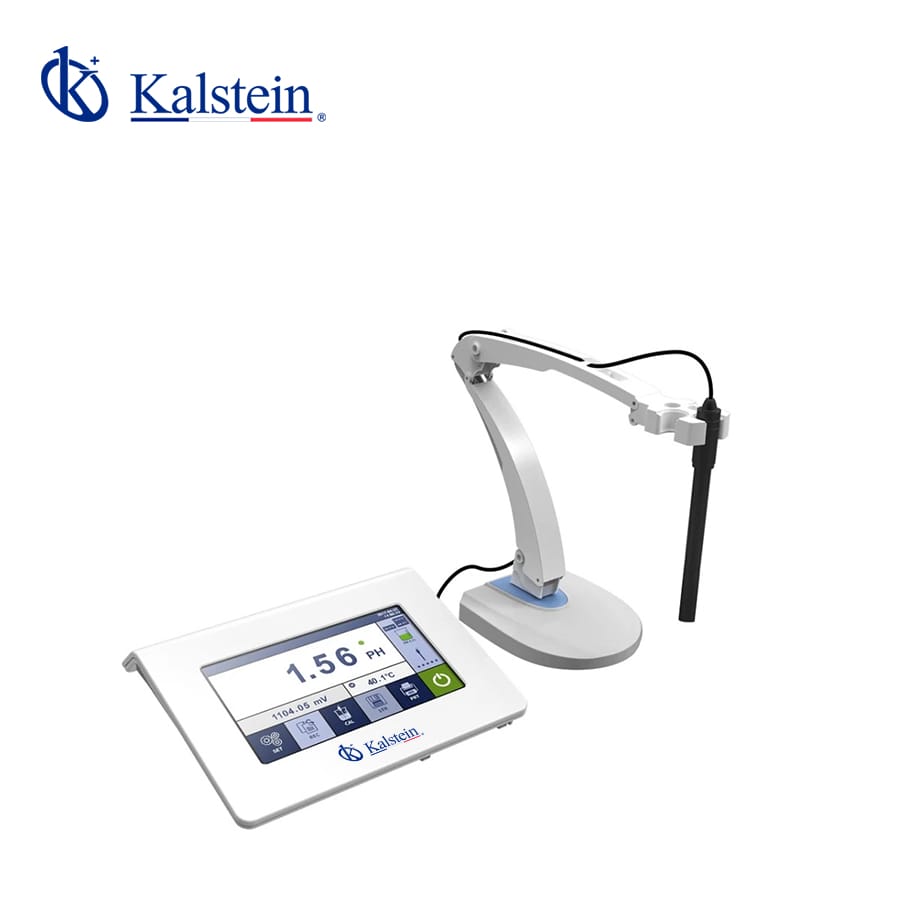

The Benchtop pH/Conductivity/DO Meter YR06385 is an advanced laboratory instrument designed for precise measurement of pH, conductivity, and dissolved oxygen in various samples. Featuring a 7-inch colored capacitive touch screen, it offers high-resolution display and intuitive operation. The built-in microprocessor chip provides intelligent functions, including automatic calibration, auto temperature compensation, and real-time data transfer capabilities. With a storage capacity for 1000 sets of test data, this meter supports both wired and wireless data transfer via USB, RS232, and Bluetooth interfaces, ensuring seamless integration with your laboratory’s data management systems.
Market Price
The Benchtop pH/Conductivity/DO Meter YR06385 falls within a competitive price range for multi-parameter meters in the market, typically priced between $1500 and $2100. Offering high accuracy and reliability, this device is an excellent investment for laboratories seeking to enhance their analytical capabilities while maintaining budgetary constraints.
Frequently Asked Questions
What is the data storage capacity of the YR06385? The meter can store up to 1000 sets of test data that can be exported via USB.
Does it support automatic calibration? Yes, it features automatic calibration for precise measurements.
Can it connect to a PC? Yes, the meter supports PC connection via USB or Bluetooth for real-time data transfer.
Advantages and Disadvantages
Advantages: High accuracy, automatic calibration, user-friendly interface, extensive data storage, multiple data transfer options.
Disadvantages: As a high-precision instrument, it may require regular maintenance and calibration to ensure optimal performance.
Product Use in the Field
This benchtop meter is ideal for laboratory environments where precise and accurate measurements of pH, conductivity, and dissolved oxygen are crucial. It can be used in a wide range of applications, including environmental monitoring, chemical analysis, and water quality testing. The versatile functionality and adaptability make it a suitable tool for both research and quality control purposes.
Recommendations
To maximize the lifespan and performance of the YR06385, regular maintenance and calibration are recommended. Ensure the electrodes are cleaned and calibrated as per the manufacturer’s guidelines, and always store the device in a dry, dust-free environment. For a personalized quote and to explore the full potential of this benchtop meter, you can request an automatic quote directly via the Kalstein Plus platform. Experience the precision and efficiency this advanced meter has to offer.
Features
- 7-inch colored capacitive touch screen with high resolution (1024*600)
- Built-in microprocessor with intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing
- Storage capacity for 1000 sets of test data, compatible with USB memory stick and Excel
- Auto recognition and calibration in pH, conductivity, and DO modes with multiple buffer options
- Bluetooth real-time data transfer option
- Ability to switch among conductivity, TDS, salinity, and resistivity measurements
Technical Specifications
| Model | YR06385 | |
|
pH
|
Measurement range | (-1.999 ~ 19.999)pH |
| Resolution | 0.1/0.01/0.001 pH | |
| Accuracy | Electrode: ±0.002 pH, Meter: ±0.01 pH | |
| Input current | ≤1×10-12 A | |
| Input impedance | ≥3×1012 Ω | |
| Stability | ±0.002 pH/3h | |
| Temperature compensation | (0 ~ 100)ºC, auto or manual | |
|
mV
|
Measurement range | -1999.9mV ~ 0 ~ 1999.9mV |
| Resolution | 0.1 mV | |
| Accuracy | ±0.03% FS | |
|
Conductivity
|
Measuring range
|
Conductivity: |
| (0.00~20.00)μS/cm | ||
| (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm | ||
| (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm | ||
| (200~2000)mS/cm(K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation range | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1/0.5/1/5/10/50/100 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
|
DO
|
Measuring range | (0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm) 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp compensation | (0 ~ 45)ºC (automatic) | |
| Salinity compensation | (0 ~ 45) ppt (automatic) | |
| Pressure compensation | (80 ~ 105) kPa (automatic) | |
| Automatic calibration | Air saturated by water; water saturated by air | |
| Electrode type | Polarographic | |
|
Temperature
|
Range | (-10 ~ 110)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other Parameters
|
Display | 7-inch colored capacitive touch screen |
| Data storage | 2000 sets | |
| Power | 12V (110-220, 50-60Hz adapter) | |
| Communication interface | USB, RS232, Bluetooth | |
| Dimensions&Weight | 240×170×70mm/600g | |
|
Working Conditions
|
Temperature | 15 ~ 30 ºC |
| Humidity | ≤85% | |
| IP grade | IP54 | |
