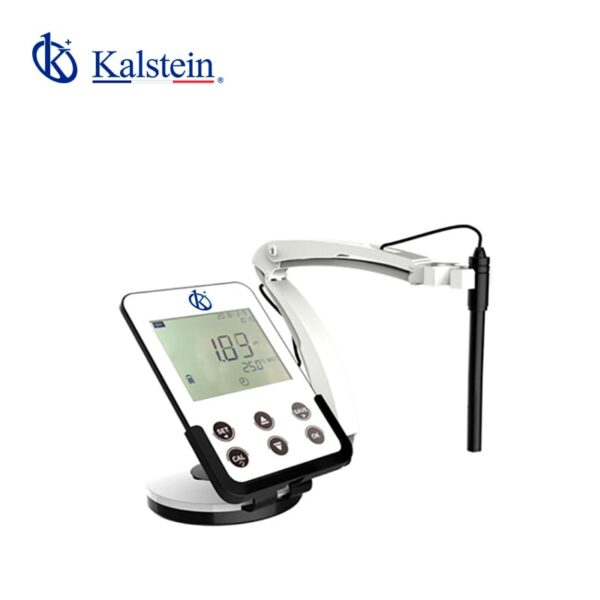

Benchtop pH / Ion Meter YR01826

Description

This sophisticated measurement device boasts a 5-inch LCD screen with a 150° viewing angle, ensuring clear readability from up to 5 meters away. It features a built-in microprocessor chip that provides intelligent functions such as automatic calibration, Automatic Temperature Compensation (ATC), data storage, clock display, USB output, function settings, automatic power-off, and a low voltage alarm.
Equipped with two USB interfaces, the device supports PC connections, battery charging, and data transfer. The 3.5mm electrode interface simplifies electrode connection. The device can automatically recognize different electrodes, and those with built-in chips can store and retrieve calibration data upon connection.
It supports the automatic recognition of 15 buffers with options for Europe & USA, NIST, and China, and allows for 1, 2, or 3-point calibration. The device can store up to 200 sets of data, including readings, GLP data, date, and time. Its rechargeable battery provides up to 30 hours of use, and the device will automatically power off after 10 minutes of inactivity.

Model	YR01826
ph	Measuring range	(-2~19.999)pH
	Resolution	0.1/0.01pH
	Accuracy	±0.02 pH
	Input current	≤2×10^-12 A
	Input impendance	21×10^-12 Ω
	Stability	±0.002 pH/3h
	Temp. compensation range	(0~100) °C, auto/manual
mV	Measuring range	-1999.9mV~0~1999.9mV
	Resolution	0.1mV
	Accuracy	±0.03% FS
Temperature	Measuring range	(-10~110) C
	Resolution	0.1°C
	Accuracy	5~ 60°C: range: ±0.4°C; other range: ±0.8℃
Calibration		1, 2, 3 point
Other Technical Parameters	Display	5-Inch white backlit LCD screen
	Data storage	200 sets
	Power	DC 5V/1A
	Communication connector	Micro USB & Standard USB
	Dimension/N.W.	180 x 130 x 14mm/280g
Working Condition	Environment Temp.	535 °C
	Environmental	≤85%
	IP Grade	IP54
Meter Kits	1) pH meter
	2) Electrode holder
	3) Two-in-one electrode that consists of pH combination electrode and temperature probe.
	4) pH buffer solution
	5) Power adapter
