Description

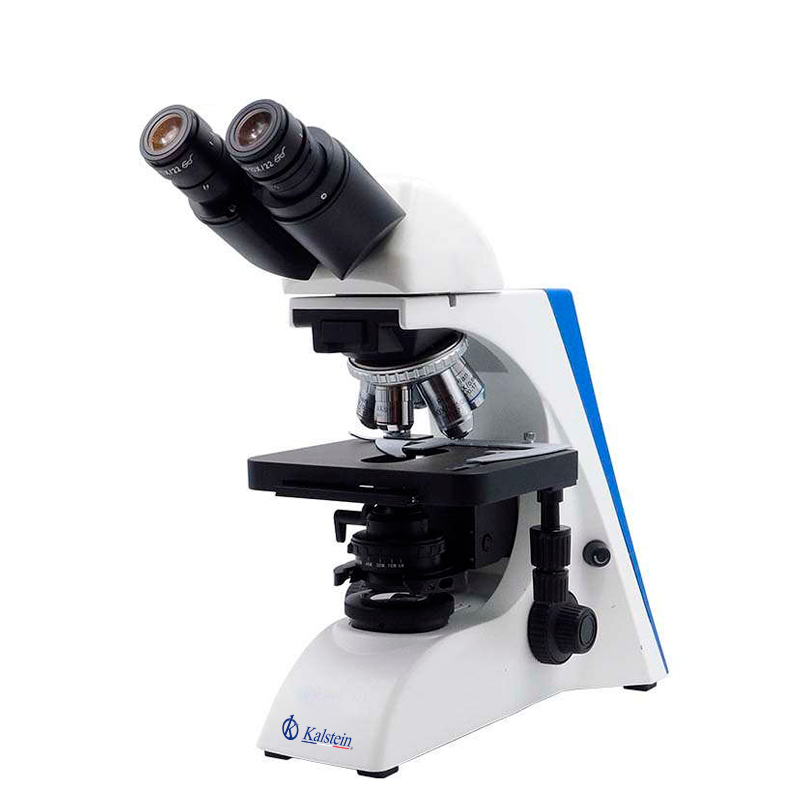

The Binocular Biological Laboratory Microscope YR05789 – YR05790 sets the standard for precision and versatility in any laboratory setting. Boasting an upgraded large Seidentopf binocular head with an eyepiece tube diameter of 30mm, this microscope offers clarity and comfort during extended use. Its wide field eyepiece, SWF10x/22mm, combined with a high-precision quintuple nosepiece, enhances magnification capabilities across a range of objectives, from 4x to the innovative 100x water objective. Illuminated by a 6V30W halogen Koehler system with a blue filter, this microscope ensures optimal brightness and color fidelity for detailed observations. Additionally, a rackless mechanical stage and an adjustable swing-out condenser provide seamless sample manipulation and light control.

Market Price

Microscopes of this caliber typically range between $1500 and $2000 USD in the market, reflecting the advanced features and precision engineering they offer. The Binocular Biological Laboratory Microscope YR05789 – YR05790 falls comfortably within this range, making it a cost-effective choice for professionals in both educational and research settings.

Frequently Asked Questions

What makes the YR05789 – YR05790 microscope stand out? This model is distinguished by its large eyepiece diameter, high precision quintuple nosepiece, and versatility with both oil and water objectives.

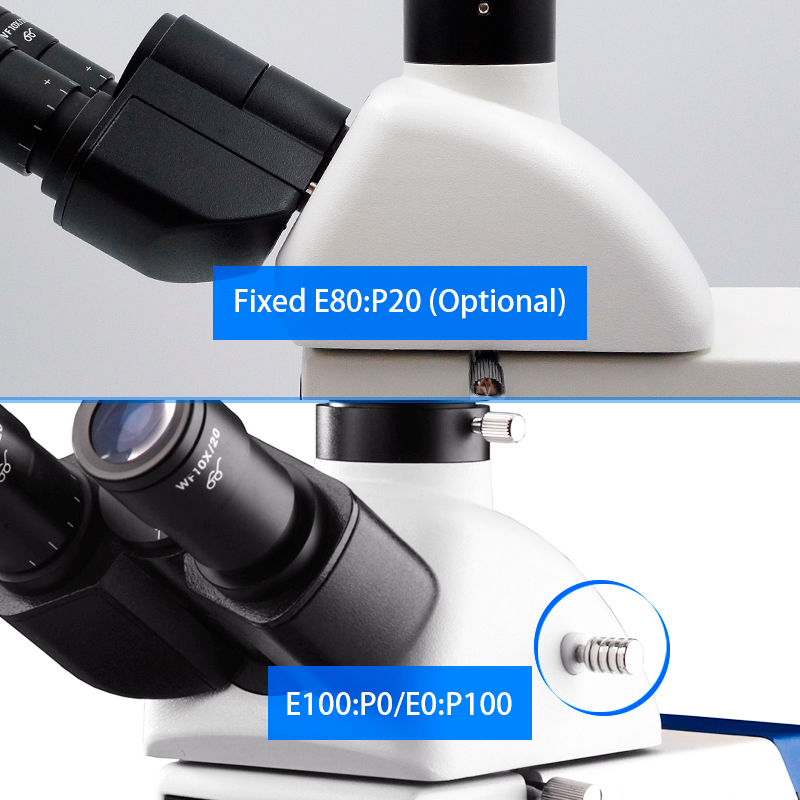

Can this microscope be used for photography? Yes, it features light split options for enhanced photo capture capabilities, allowing simultaneous viewing and photographing.

What types of objectives are available with this microscope? It includes infinity plan objectives ranging from 4x to the unique 100x water objective, which offers ease of use and cleaning.

Advantages and Disadvantages

Advantages: The microscope provides superior image clarity, a wide range of magnification options, and a durable, user-friendly design. It is equipped with both water and oil objectives and offers advanced lighting options.

Disadvantages: Depending on laboratory requirements, its price point can be considered high, and there may be a learning curve when transitioning from less advanced models to operate its features optimally.

Product Use in Field

This microscope is ideal in academic settings for biology and medical students to study cellular structures and microorganisms. It is equally valuable in research laboratories focusing on microbiology, histology, and clinical applications, thanks to its adaptable lighting and objective options that support various sample types and research needs.

Recommendations

To extend the life and performance of your microscope, regular maintenance such as cleaning lenses with appropriate solutions and checking mechanical parts for wear is recommended. Calibrate the light settings according to the specific sample requirements for optimal results. When not in use, covering the microscope will protect it from dust and contaminants. For convenience and efficiency, consider our Kalstein Plus platform to request a quote or generate one automatically, streamlining your purchasing process.

Features

• Seidentopf binocular head, inclined 30°, rotatable 360°.

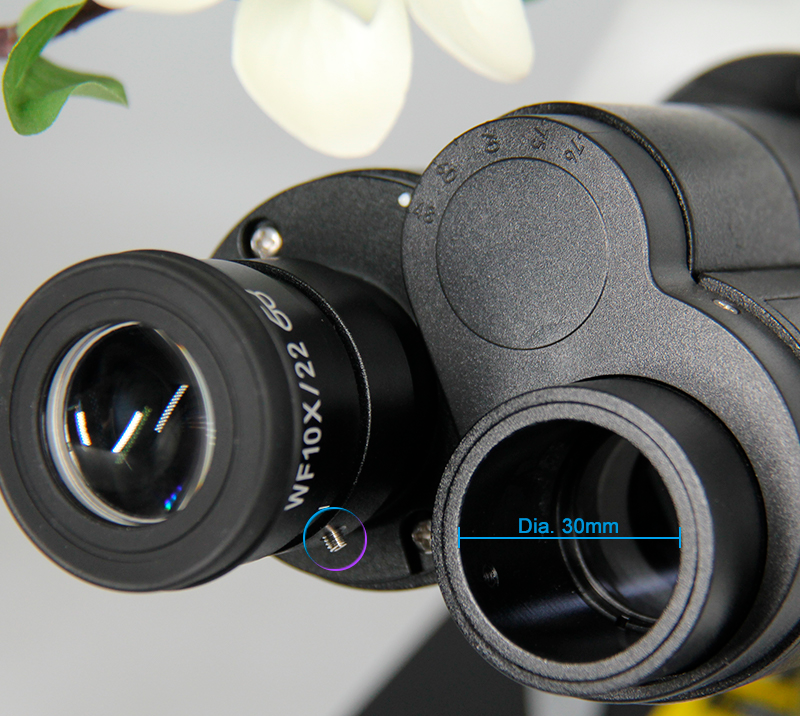

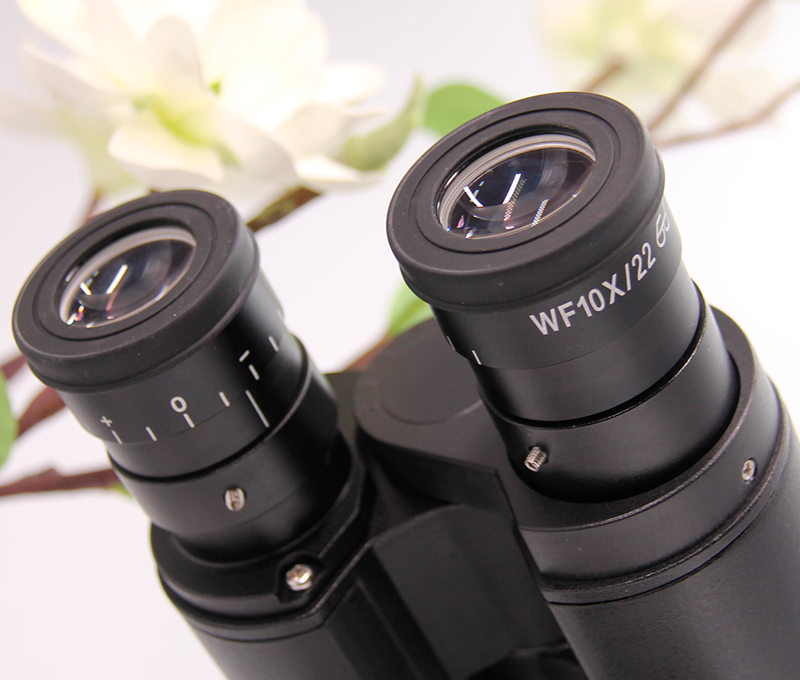

• Eyepiece SWF10x/22mm, high eyepoint, diopter adjustable.
• High-precision quintuple nosepiece with polarizing analyzer slot.

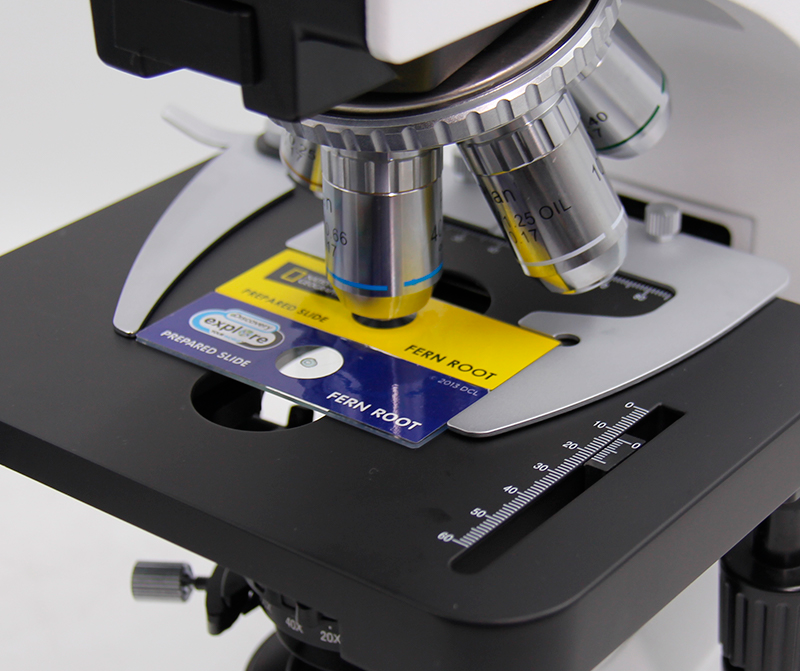

• Rackless mechanical stage 182×140mm with double slide holder.

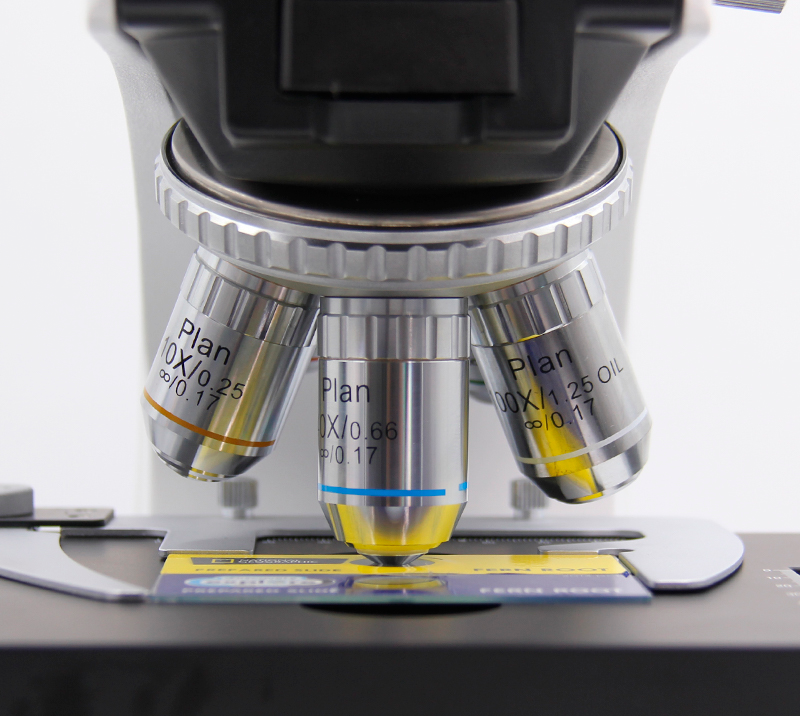

• Infinity plan objectives: 4x, 10x, 20x, 40x, 100x (water option).

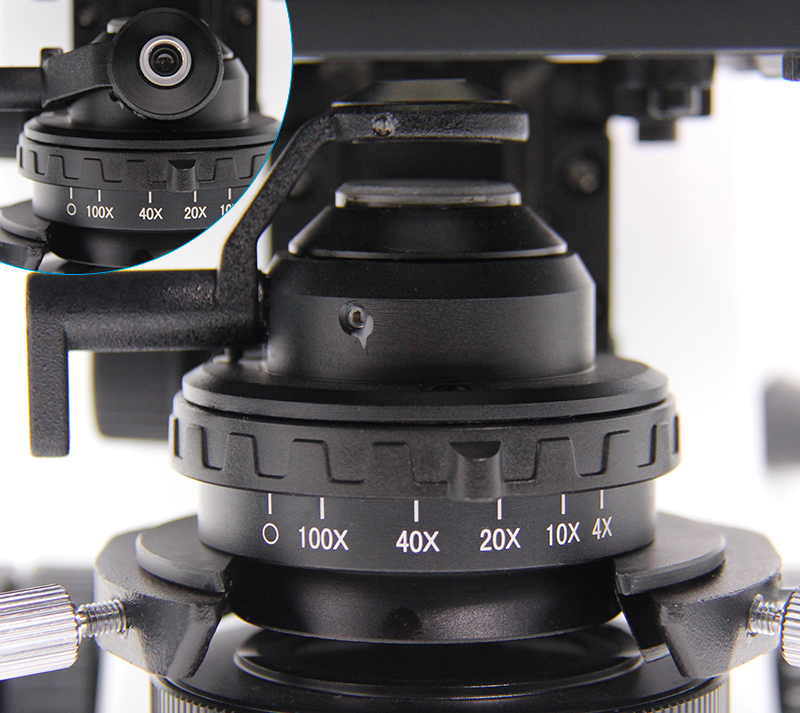

• Swing-out condenser with NA 0.9/0.13 and iris diaphragm.
• 6V30W halogen Koehler illumination with blue filter.
• Wide voltage power supply (100V~240V).
• ECO auto power-off system.

Technical Specifications
