Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

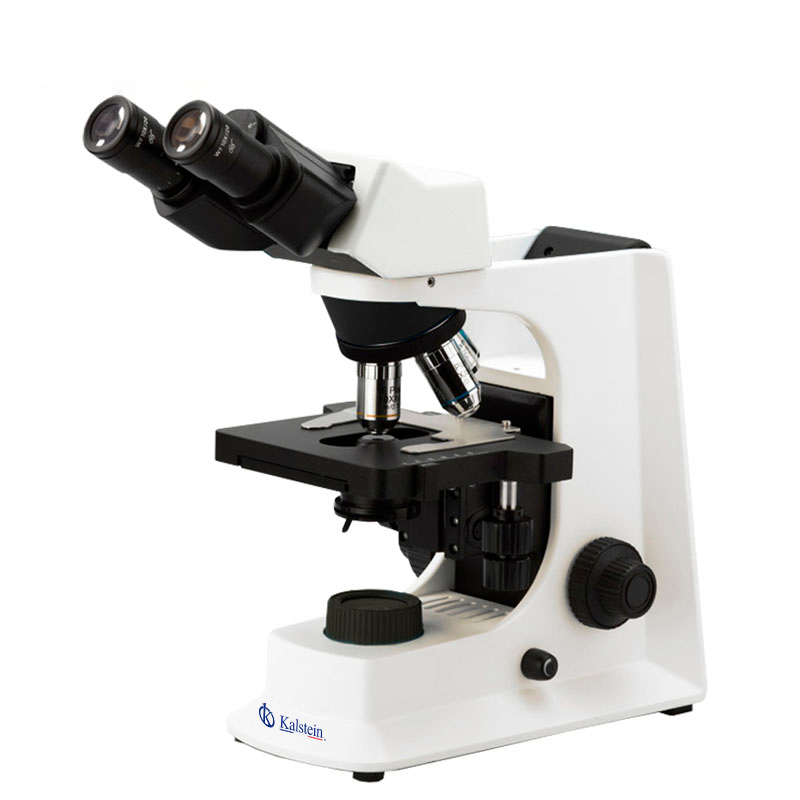

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 is designed for precision and comfort during laboratory work. This model features a binocular head inclined at 30° and can rotate 360°, accommodating individuals of varying heights. Its advanced eyepiece design ensures a clear view while reducing contamination. The microscope comes with a selection of four objective lenses, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan, offering flexibility in observations. The mechanical stage has a comfortable size and travel range, while the 3W-LED illumination system ensures bright and clear images. This instrument is perfect for both educational and professional laboratory settings.
Market Price
In the market, high-quality biological microscopes generally range from 900 USD to 1700 USD. While prices may vary based on specific configurations and retailer options, this range offers a general idea of what you can expect to invest for a reliable product in this category. It is crucial to consider the features and brand reputation when making a purchase.
Frequently Asked Questions
- What is the interpupillary distance of the microscope? The interpupillary distance range is 48-75mm, which can be adjusted to suit different users.
- Does the microscope have a trinocular head option? Yes, the YR05788 model has a trinocular head option, offering the capability for both binocular and photographic work.
- What kind of illumination does it use? It features a 3W-LED illumination system with an option for halogen lamps.
Advantages and Disadvantages
Advantages: High customization through various objectives and head types; excellent image clarity with anti-contamination design; robust mechanical construction for precise adjustments.
Disadvantages: May require additional accessories purchased separately to fully utilize all features; users with limited experience may find initial setup complex.
Product Use in the Field
The Binocular Infinity Plan Laboratory Biological Microscope is ideal for biological and medical research, educational environments, and clinical labs. Its design facilitates easy observation and complex specimen analysis, particularly useful in research and educational demonstrations requiring detailed visual presentations.
Recommendations
To optimize performance, regularly clean the optical components and mechanical parts. Use only recommended cleaning materials to avoid damage. For optimal illumination, ensure that LED or halogen bulbs are correctly installed and functioning.
Features
- Seidentopf Binocular Head inclined 30°, rotatable 360°
- High eyepoint eyepiece for a comfortable view
- Quadruple and quintuple backward nosepiece options
- Led and halogen illumination options for diverse environments
- Reflecting mirror and various condenser features
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |

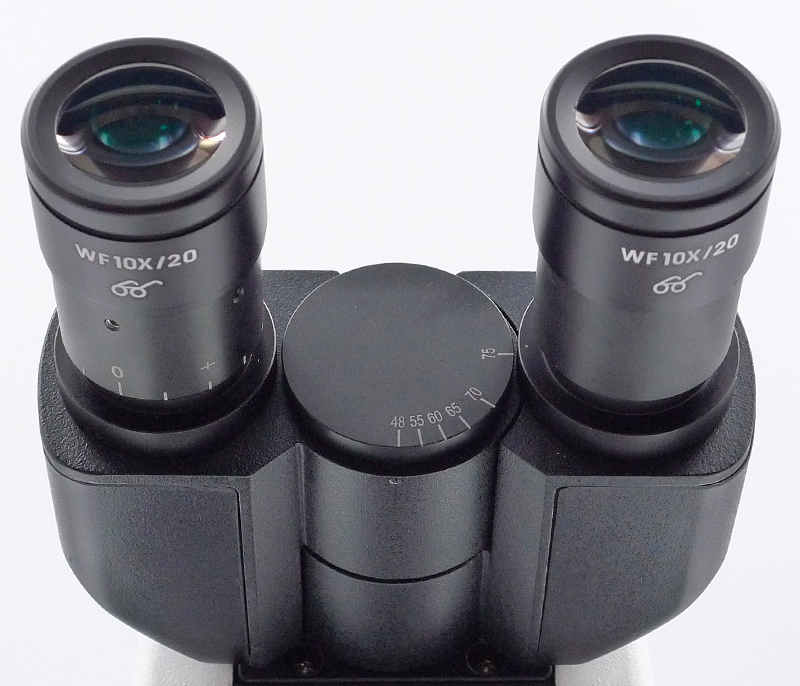

| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

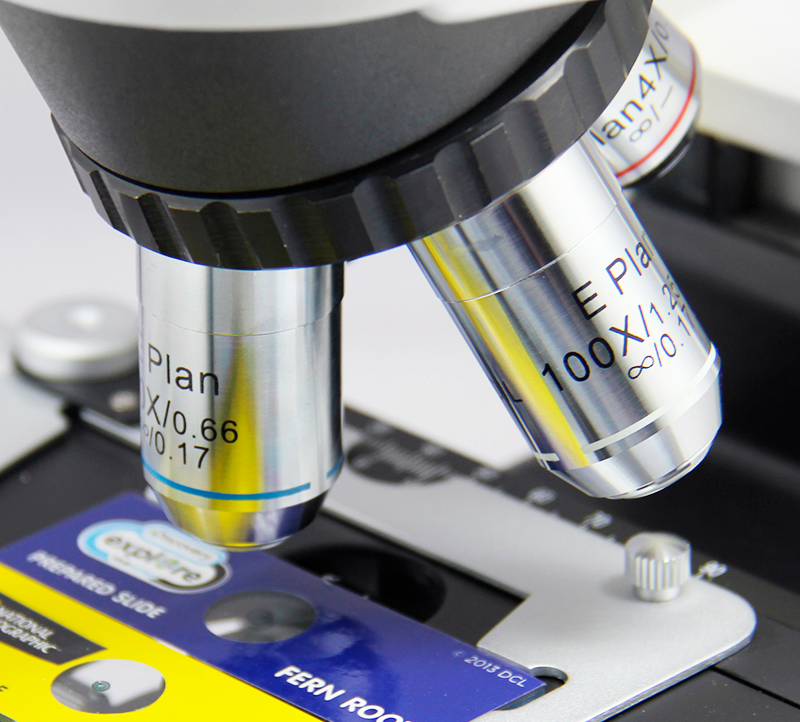

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

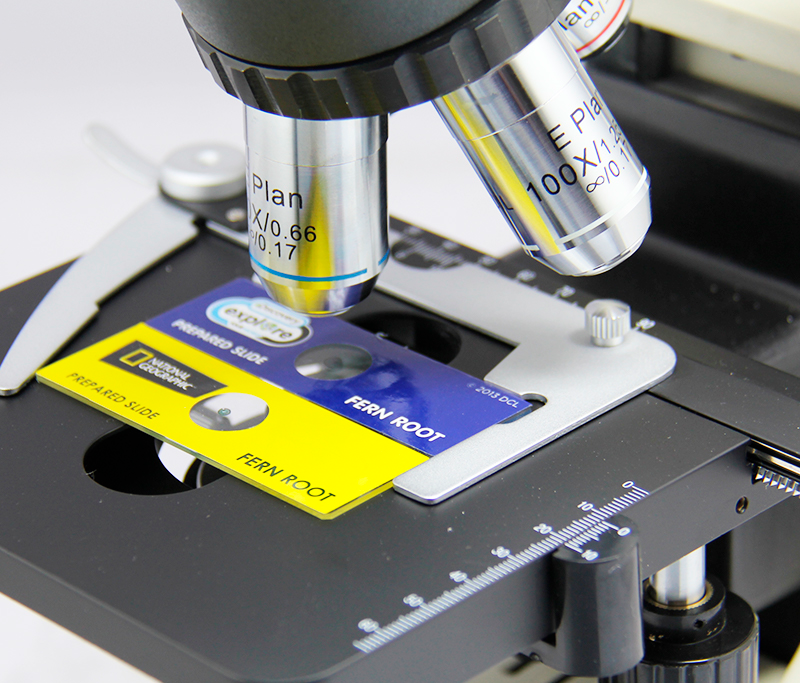

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | - | |||

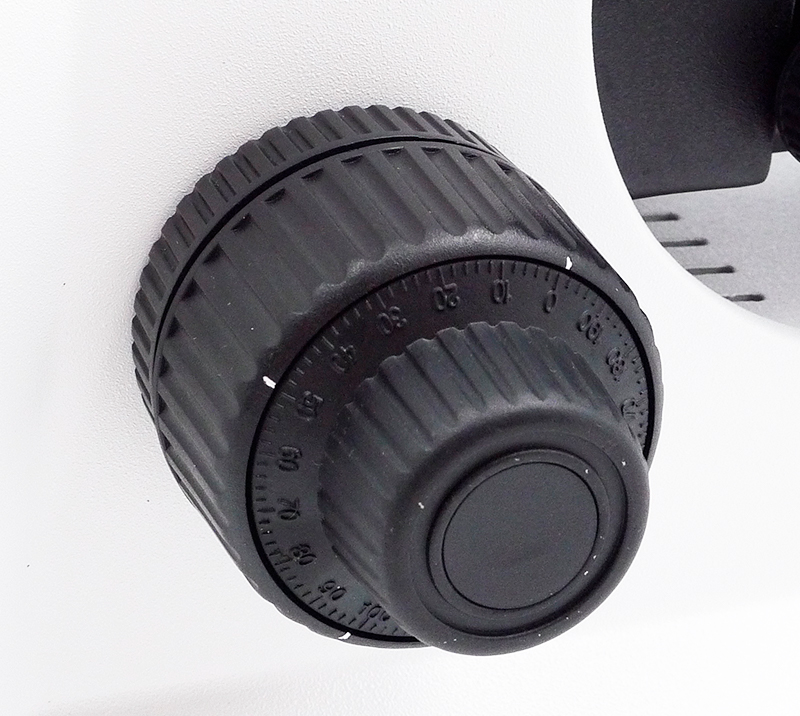

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

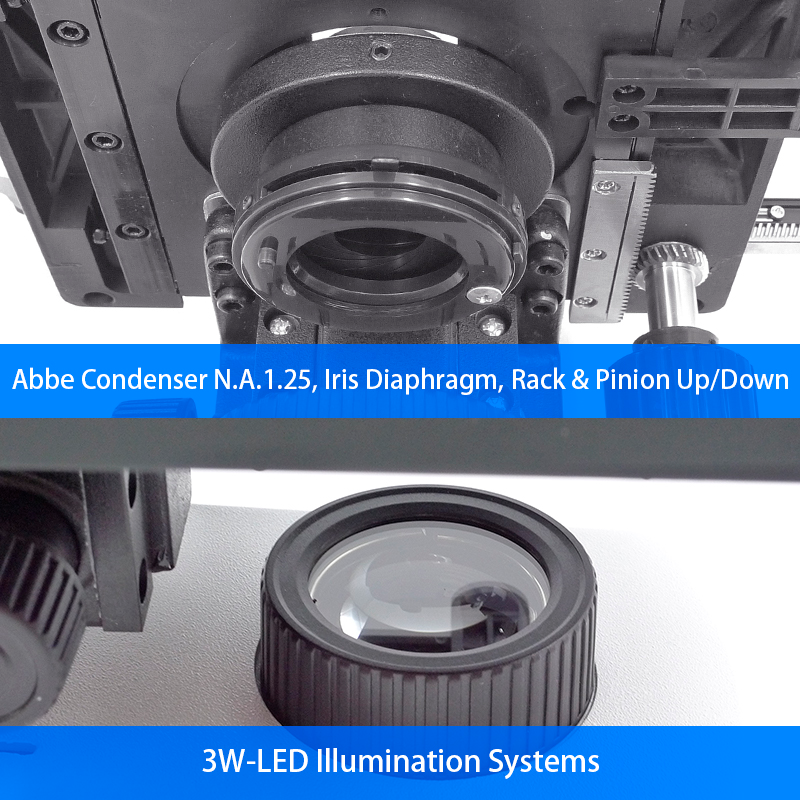

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

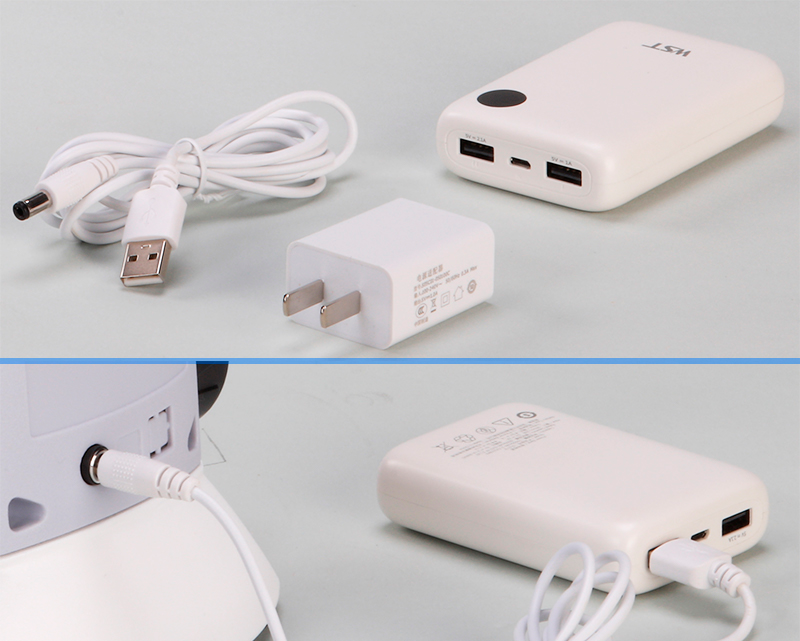

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | - | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |

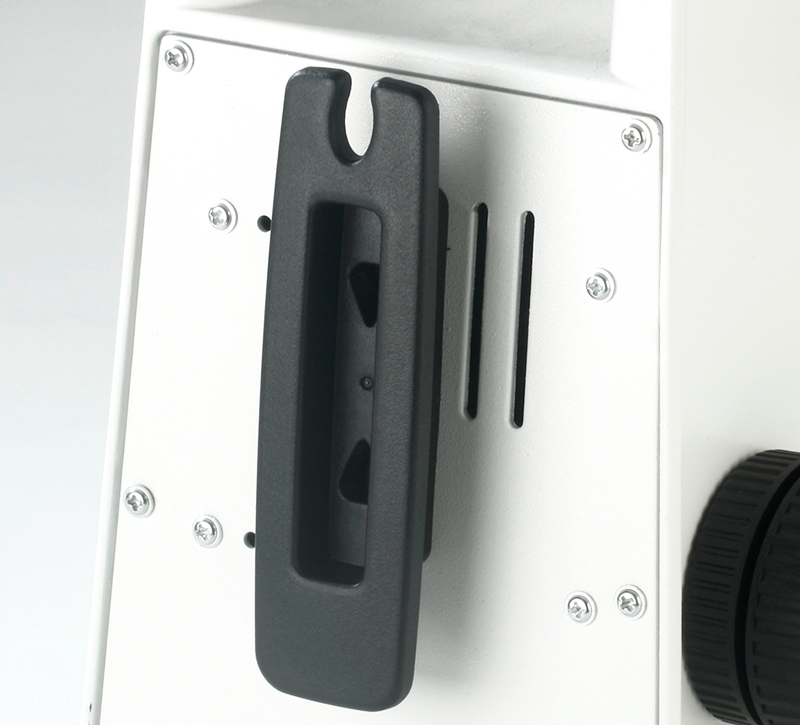

| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||
Technical specifications
| Dimensions | L 39 × W 28 × H 45 cm |
|---|---|
| Weight | 8.5 kg |
| Manufacturer | Kalstein |
