Description

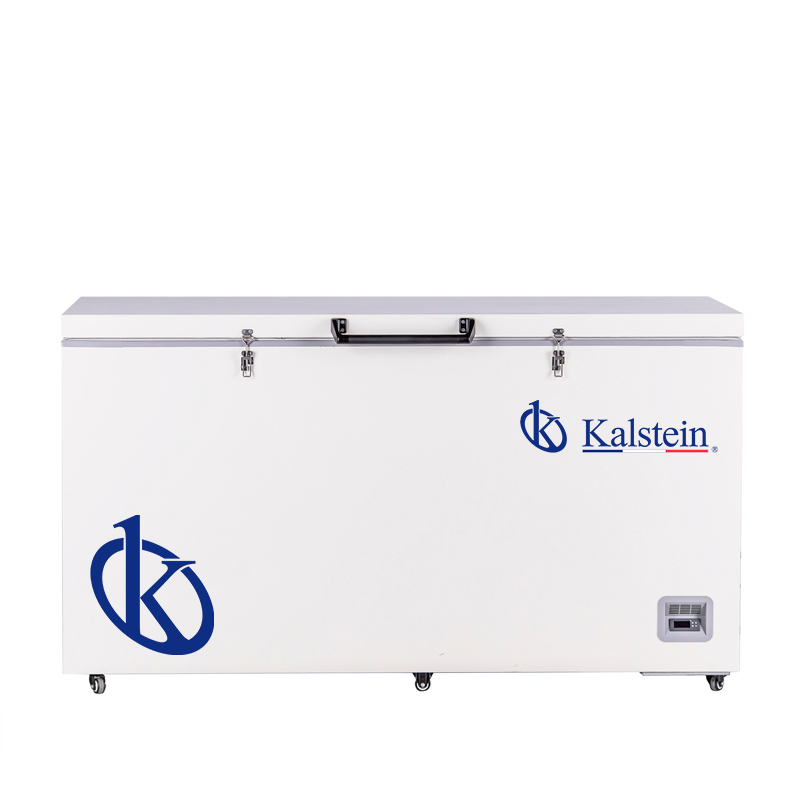

The YR05104 Horizontal Freezer is designed to provide safe and efficient storage for biological products that require extremely low temperatures. This model stands out with its 485-liter capacity and an adjustable temperature range from -20°C to -40°C, making it ideal for blood banks, hospitals, research centers, and laboratories in chemical and electronic plants. Thanks to its direct cooling technology, the YR05104 uses R290 refrigerant, free of CFCs, making it an environmentally friendly and energy-efficient option. In addition, the microprocessor-controlled temperature system, along with the LED digital display, allows for precise adjustment and easy observation of storage conditions.
Details | Model Number | YR05104 |
Specificaitons
|
Cooling method | Direct cooling |
Defrost | Manual | |
Refrigerant | R290 | |
Power consumption(kWh/24h) | 3.45 | |
Noise(db) | 55 | |
Ambient temperature(℃) | 10~32℃ | |
Temperature range(℃) | ·-20~40℃ | |
Cooling system
|
Compressor brand/QTY | CUBIGEL/1 |
Condenser | Wire tube | |
Sensor | NTC | |
Temperature controller | Microprocessor | |
Display | Digital display | |
Power
|
Voltage/frequency(V/Hz) | 220/50Hz |
Power(W) | 295W | |
Current(A) | 2.45A | |
Details | Model Number | YR05104 |
Material
|
Inside material | Stainless steel |
Outside material | Color sprayed steel | |
Insulation | PURF | |
Size
|
Capacity(L/cu.ft) | 485/17.12 |
NT./GT.(kg) | 108/135 | |
Exterior size(W*D*H)(mm) | 1670*810*930 | |
Interior size(W*D*H)(mm) | 1455*525*665 | |
Package size(W*D*H)(mm) | 1775*880*1060 | |
CBM | 1.66 | |
20GP/40GP/40HQ | 12/26/26 | |
Alarm
|
High/low temperature | Y |
Power failure | Y | |
Sensor error | Y | |
Temperature controller failure | Y | |
Power failure backup system(alarm) | 12h | |
Accessories
|
Castor | Y |
Test hole QTY/diameter | 1 | |
Other | Certification | ISO9001,13485, 14001,CE |
