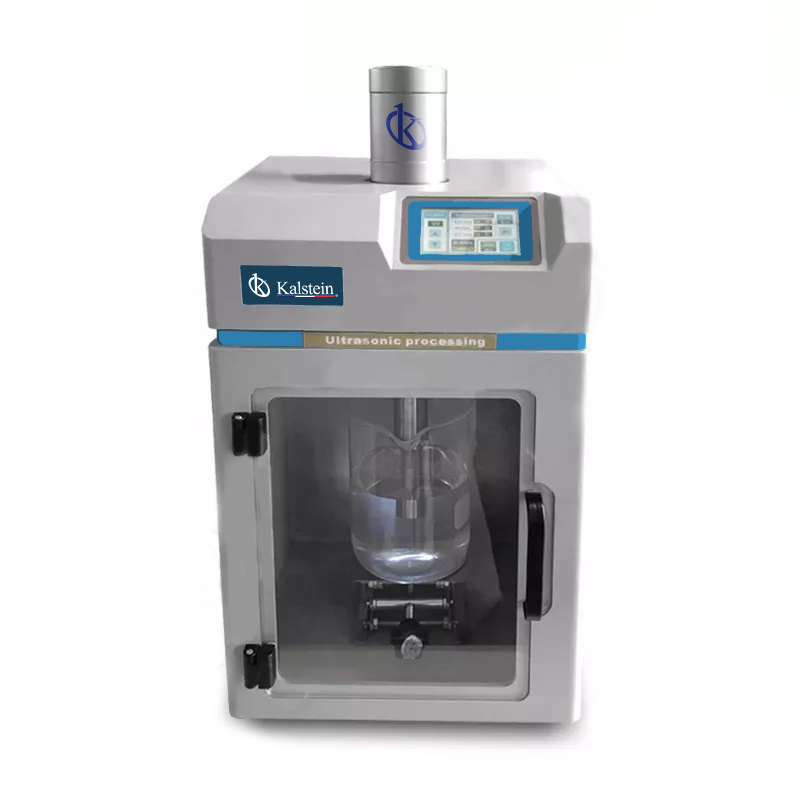

Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839

Manufacturer: Kalstein

Description

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 is an indispensable tool for laboratories focused on precision and efficiency when dealing with solid-liquid samples. This state-of-the-art ultrasonic processor excels in performing cell lysis, emulsification, nanoparticle dispersion, and speeding up chemical reactions. With a sophisticated digital interface and fully automated control settings, users can tailor the ultrasonic power from 0 to 100% to suit the specific requirements of their samples. The device is equipped with a 3.2-inch LCD touch screen and can store up to 8 data sets, ensuring user-friendly operation and comprehensive process monitoring.

Market Price

The market for ultrasonic homogenizers like the YR05837 // YR05839 typically sees a price range from around $3,900 to $4,700 USD. This pricing reflects the machine’s advanced technology, ensuring superior performance compared to other models in the market. Its sophisticated features and high efficiency give excellent value for laboratories seeking reliable and cutting-edge solutions.

Frequently Asked Questions

  • What types of samples can this device process?

The YR05837 // YR05839 is perfect for a variety of samples, including animal cells, plant cells, nanoparticles, emulsions, and soil samples.

  • Is it safe for sensitive samples?

Yes, its precise control over power and temperature minimizes any risk of thermal or mechanical damage to delicate samples.

Advantages and Disadvantages

The YR05837 // YR05839 offers versatility, high precision, and features automated safety functions, enhancing its operational efficiency. It supports continuous or pulse mode operations, and its frequency compensation feature guarantees consistent performance. However, the size of the unit might pose a challenge for labs with limited space, though its soundproof casing significantly reduces operational noise disturbance.

Field Use

This versatile device finds applications across numerous fields, including biotechnology, materials chemistry, and medicine. For instance, in molecular biology, it facilitates DNA and protein extraction, while in chemistry, it aids in dispersing carbon nanotubes and other advanced materials. Its processing capacity ranging from 50 ml to 3000 ml makes it an invaluable tool for research and industrial laboratories.

Recommendations

To maintain optimal performance and extend the device’s lifespan, regular maintenance is advised, such as cleaning the probes and checking the cooling system. For more information or if you wish to purchase, you’re encouraged to request a quote or generate one automatically via our Kalstein Plus platform. Enhance your experimental processes with this cutting-edge ultrasonic technology today.

Features

  • Digital interface with adjustable ultrasonic power
  • 3.2-inch LCD touch screen with 8 data set storage capacity
  • Automatic frequency compensation
  • Multiple operational modes: continuous and pulse
  • Soundproof box to minimize noise

Technical Specifications

Model No. YR05837 YR05837-1
Working Frequency 19~25KHz Automatic compensation
Ultrasonic Power 950W 650W
Processing Capacity 100~1200ml 50~800ml
Power adjustable 0~100%
Timer LCD Touch screen, adjustable from 1s to 99h
Pulser Digital, closed loop, open loop, 1s to 99min to choose and set
Ultrasonic mode Pulse mode / Continuous mode
Standard Probe Φ13mm Φ6mm
Optional Probe Φ3/6/8/10/16/18mm
Φ3/6/8/13/16mm
Energy Converter CV33, PZT lead zirconate titanate piezoelectric ceramics
Probe Material Titanium Alloy TI-6AL-4V
Cabinet lighting yes
Lifting table yes
Machine size 245*365*245mm
Sound Proof box size 240*250*390mm
Power Supply AC220/50Hz,110V/60Hz
Optional Configuration Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack

Additional information

Weight 9,9 kg
Dimensions 48 × 33 × 53 cm
Modelo

YR05837, YR05837-1, YR05838, YR05839
