Description

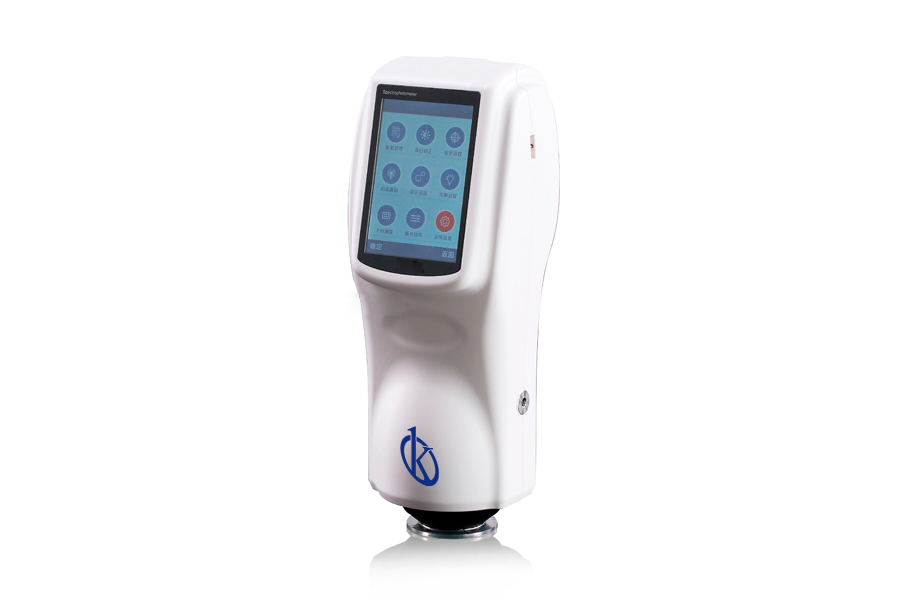

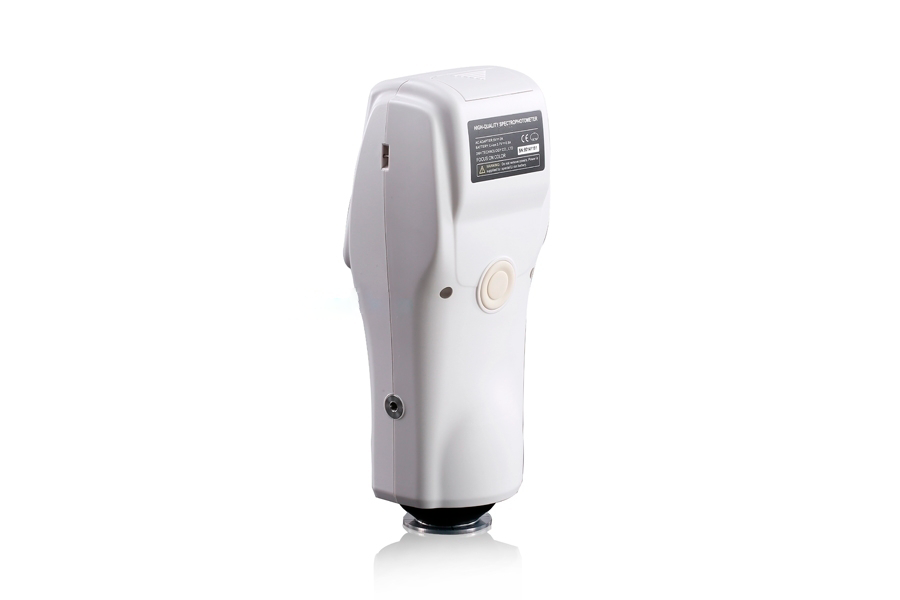

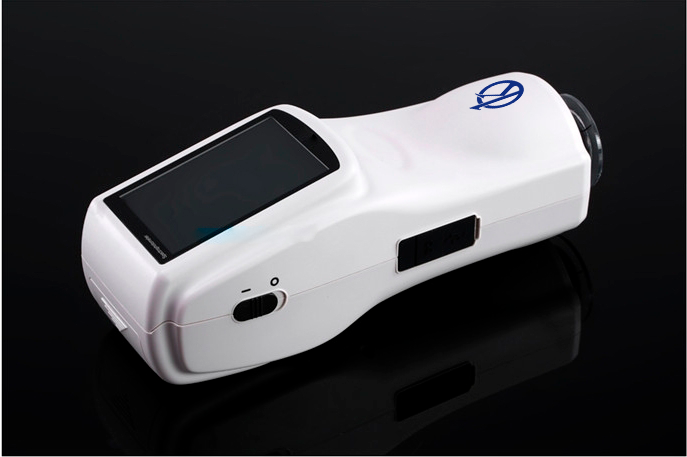

The Handheld Color Spectrophotometer YR05496 is a state-of-the-art portable device engineered for precise color management, catering to various industries like plastics, textiles, paints, and food. Weighing just 600 grams, this spectrophotometer utilizes a 45/0 geometric optical structure, compliant with international standards such as CIE No.15 and GB/T 3978, ensuring unmatched accuracy with a DeltaE*ab index of 0.04. Its ergonomic design paired with a 3.5-inch touchscreen enhances user-friendliness, while the SQC8 software facilitates extended functionalities when connected to a PC. Ideal for quality control, this device is indispensable for maintaining color consistency effortlessly.
Market Price
The average market price for spectrophotometers akin to the YR05496 ranges between $3,500 and $4,300 USD. This investment provides significant value, granting businesses a competitive edge in precision color control. By integrating a storage capacity of up to 10,000 samples, this model offers vast data management capabilities. For those interested in enhancing their industrial processes, a personalized quote can be easily generated via the Kalstein Plus platform, ensuring a hassle-free purchasing experience.
Frequently Asked Questions
- What industries can benefit from the YR05496?
This spectrophotometer is ideal for sectors like plastics, textiles, paints, and food, where precise color control is crucial. - Can the YR05496 connect to a PC?
Yes, it includes advanced software for seamless PC connectivity, optimizing data management and analysis. - How much data can it store?
The device can store up to 1,000 standards and 10,000 samples, offering an organized data recording solution.
Advantages and Disadvantages
The YR05496 boasts several advantages, including exceptional accuracy (ΔE*ab of 0.04), a user-friendly portable design, and compliance with international colorimetry standards. Connectivity through USB and RS232 ensures effortless data transfer. However, a limitation is its wavelength range (400-700 nm), which may not suit needs requiring broader spectrum coverage.
Field Applications
This spectrophotometer is highly valued in scenarios requiring rigorous color accuracy, such as production lines and laboratories. Its portability and precision ensure consistent outcomes swiftly, while its color simulation capabilities enable real-time evaluation, assuring top-tier product quality.
Recommendations
To maintain the YR05496’s peak performance, regular calibration and dust-free storage are recommended. Its lithium-ion battery powers up to 5,000 measurements within 8 hours, necessitating regular charging. Explore how the Handheld Color Spectrophotometer YR05496 can elevate your industry’s color precision by requesting a tailored quote or generating one instantly on the Kalstein Plus platform.
Features
- Compact and portable design with a 3.5-inch touchscreen
- Compliance with CIE and GB/T standards
- PC connectivity and data management software
- High storage capacity for numerous samples
- Advanced optical structure for superior accuracy
Technical Specifications
|
Model |
YR05496 |
|
Illumination/observation system |
45/0 method (45 ring-shaped illumination, vertical viewing) |
|
Integrating sphere Size |
Φ58mm |
|
Light Source |
combined LED sources |
|
Sensor |
Silicon photodiode array |
|
Wavelength range |
400~700nm |
|
Wavelength pitch |
10nm |
|
Reflectance range |
0~100% |
|
Measuring Aperture |

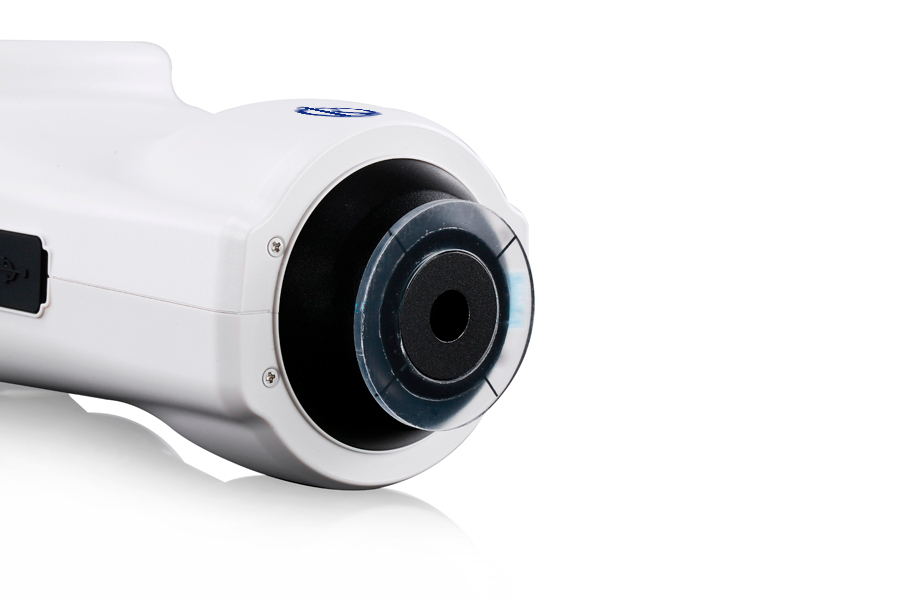

Φ8mm |
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV |
|
Color difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
|
Other Chromaticity Data |
Whiteness – WI(ASTM E313，CIE/ISO,AATCC,Hunter), Yellowness-YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO), Metamerism Index (Mt), Colour Stain, Color Fastness, Color Strength, Opacity |
|
Observer |
2°/10° |
|
Illuminant |
D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12 |
|
Display Data |
Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
|
Measurement Time |
1.5s |
|
Repeatability |
Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) |
|
Inter Instrument Agreement |
Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
|
Dimension |
L*W*H=90*77*230mm |
|
Weight |
600g |
|
Battery |
Li-ion battery. 5000 times within 8 hours. |
|
Lamp Life |
5 years, more than 1.6 million measurements |
|
Display Screen |
TFT 3.5inch, Capacitive Touch Screen |
|
Interface |
USB/RS-232 |
|
Data Memory |
1000 Standards, 10000 Samples |
|
Operating Temperature |
0~40℃(32~104°F) |
|
Storage temperature |
-20~50℃(-4~122°F) |
|
Standard Accessory |

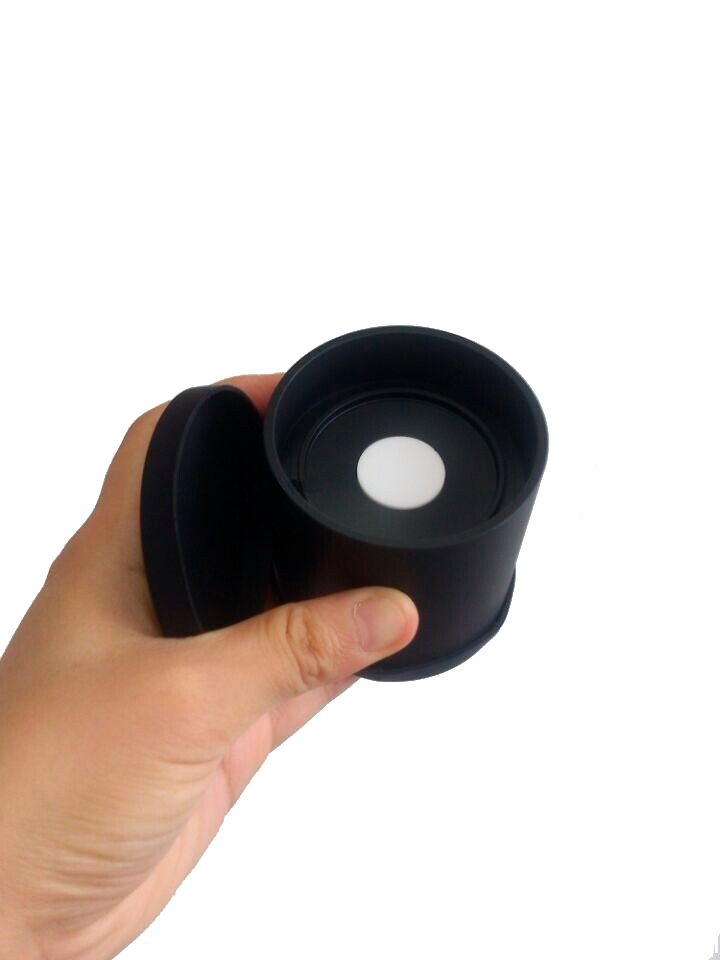

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
|
Optional Accessory |
Micro Printer, Powder Test Box |
|
Notes |
The specifications are subject to change without notice. |
