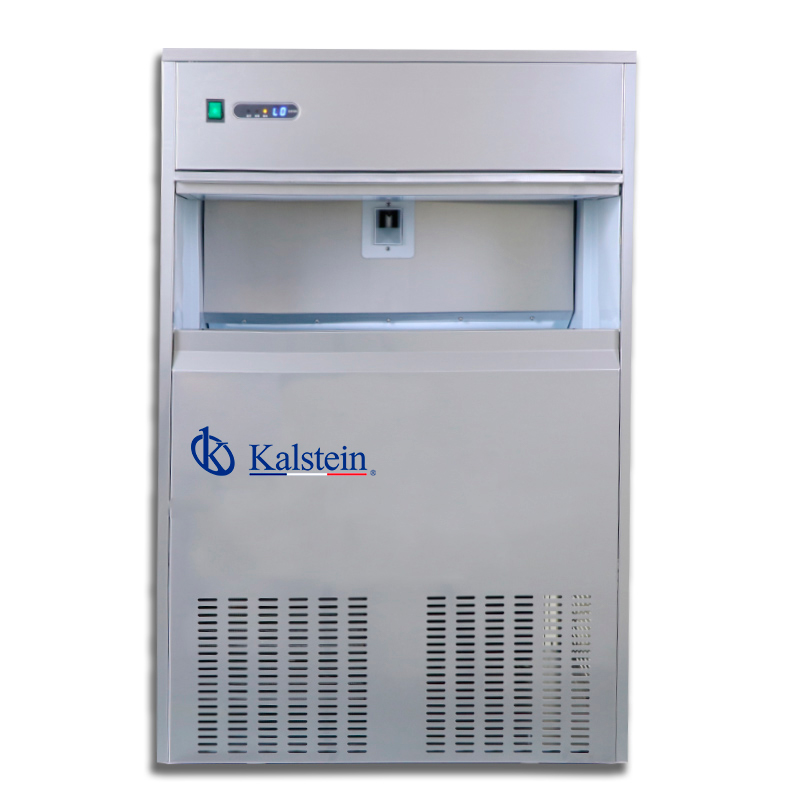

High Quality Shaved Ice Machine For Laboratory YR05140 // YR05141

Manufacturer: Kalstein

Description

  • High-quality stainless steel is used anti-corrosion and durable. The compact structure is simple and saves space.
  • The cabinet is filled with fluorine-free thermal foam with good insulation effect. The inner lining is food grade plastic. They save energy and are respectful with the environment.
  • World famous brand CFC-free R134a compressors are used. The main parts and components have passed the relevant safety certifications. The product has stable quality and long service life.
  • The ice making process is fully computer controlled, using imported computer chips to make the control reliable and easy to operate.
  • Advanced technologies and imported accessories make low noise, smooth and reliable operation. The vents and fans are deployed to ensure that the geared motor operates reliably.
  • The patented technology of the Chip Ice Chamber line separated from the evaporator that provides high cooling efficiency and large ice making capacity.
  • Screw extrusion ice making type makes compact structure and automatic separation of ice from water. The optimal design of the skate blade makes the ice shape small and practical.
  • Unique float type water inlet system ensures no residual water. no need for an ice cleaning process or wasted water, saving water and energy.
  • Fully automatic operation with full ice screen, water shortage screen, operation screen and malfunction warning screen, etc. For power-off protection. They will stop automatically in case of ice or water shortage and start automatically when the ice is not full or the water supply is restored.
  • Flake ice cools faster than other forms of ice, which can infiltrate a narrow space, with fast cooling speed, good ice bath effect.
  • Long-term performance testing and electrical safety testing will be conducted before shipment, ensuring excellent product performance
Technical Characteristics
Model YR05140 YR05141
Ice Making Capacity 200 Kg / 24 h 250 Kg / 24 h
Ice Storage 60 Kg
Voltage 220V / 50Hz or 110V / 60HZ (you need to pay extra)
Power 1040 W 1100 W
Cooling Type Air cooling
Refrigerant R134a
Water Supply Tap water
Net Weight (Kg) 80
Gross Weight (Kg) 85
Product Dimension 680 x 611 x 1 100 mm
Packaging Dimension 880 x 750 x 1 250 mm
Filling quantity
20’GP 48
40’GP 102
40’HQ 102

Additional information

Weight 105 kg
Dimensions 74 × 80 × 127 cm
Model

YR05140, YR05141
