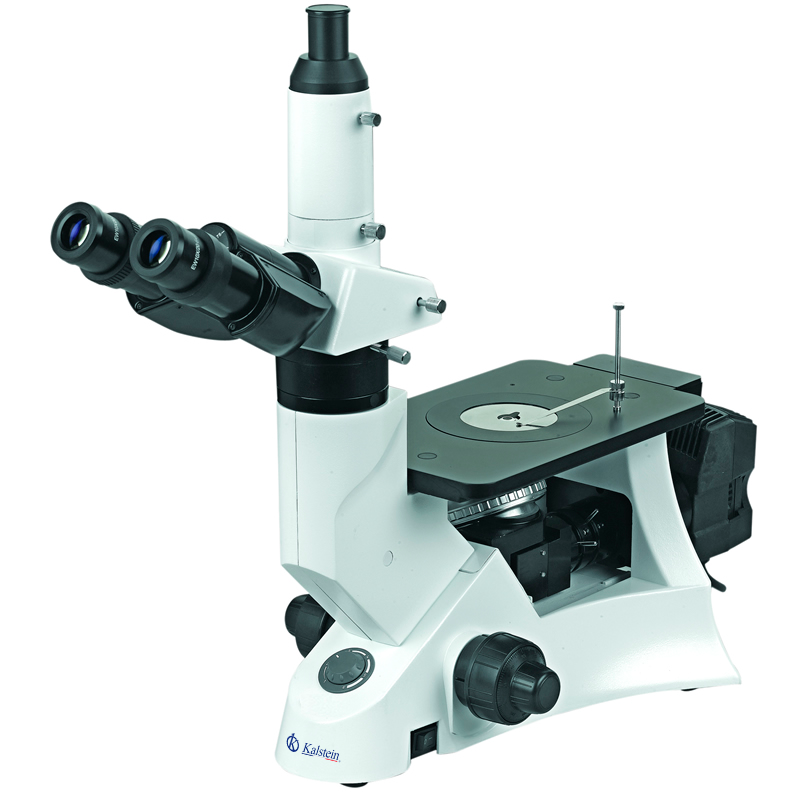

Inverted Metallurgical Microscope YR0258
Inverted Metallurgical Microscope YR0258 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Inverted Metallurgical Microscope YR0258 offers outstanding precision with its stable support structure and advanced stage design, making it an invaluable tool in both institutes and laboratories for analyzing the microstructure of metals and various materials. Equipped with an infinite optical system, this high-quality microscope ensures impeccable image clarity. Its Seidentopf trinocular head, inclined at 30 degrees, along with a wide field eyepiece and high eyepoint, enhances user comfort and viewing efficiency. The sophisticated Kohler illumination system, featuring an external halogen lamp with adjustable brightness, provides exceptional lighting conditions for detailed examinations.
Market Price
When looking at the market for high-performance metallurgical microscopes, the price usually ranges between $2500 and $3300. This range reflects the robust capabilities and advanced features these instruments offer, such as high-quality optics and durable build, essential for professional-grade analysis.
Frequently Asked Questions
- What is the main use of the YR0258 microscope? – It is primarily used for identifying the microstructures of metals and other materials in laboratories and research institutes.
- Does it support camera integration for imaging? – Yes, it comes with a photo adapter option for camera integration.
- How does the lighting system enhance visibility? – The microscope utilizes a Kohler halogen lamp, providing adjustable brightness for optimal visibility during examinations.
Advantages and Disadvantages
Among the key advantages of the YR0258 are its superior optical quality, ergonomic design, and reliable illumination system. However, users should consider the higher investment cost compared to basic models and ensure they are equipped to handle its technical demands.
Field Use
In practical scenarios, the YR0258 is employed for examining the microstructures of metals, aiding in quality control processes and research developments. Its precise focusing system ensures accurate analysis, while optional accessories can further enhance its functionality for specific applications.
Recommendations
To maximize the lifespan and efficiency of the YR0258, regular maintenance and careful calibration are recommended. Using compatible accessories and handling the microscope with care during adjustments will prevent damage to the optical components.
Features
- Infinite optical system for high-quality imaging
- Seidentopf trinocular head with ergonomic design
- Advanced stage design with optional mechanical stage
- Reliable Kohler external illumination
- Wide range of optional lenses and attachments
Technical Specifications
| Model | YR0258 | ||
| Optical System | Infinity Optical System | ||

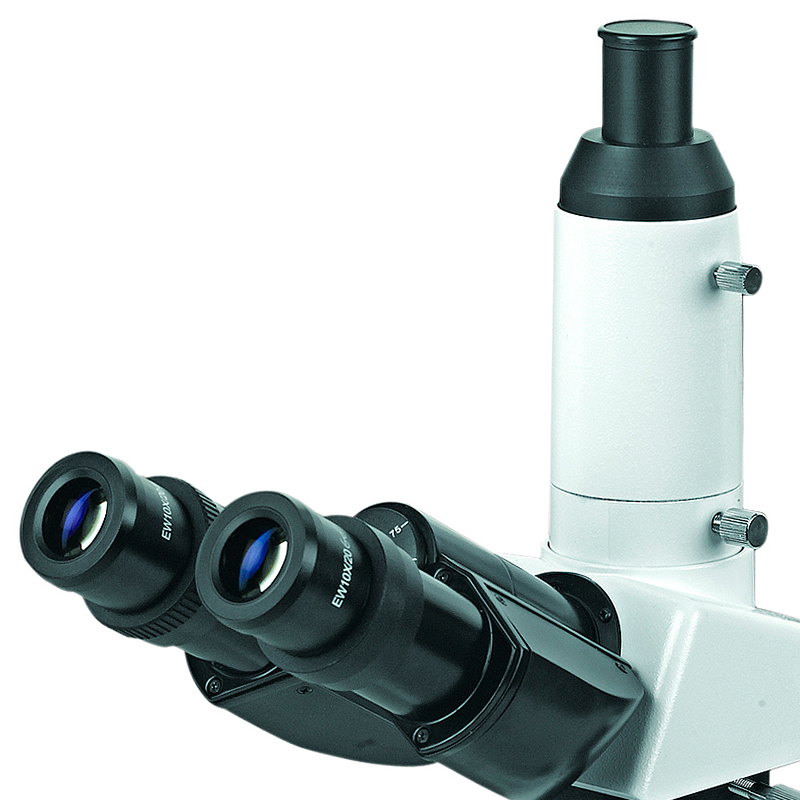

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan Metallurgical Coverless Achromatic Objective | 4x/0.1/∞/-, W.D.17.3mm | |
| 10x/0.25/∞/-,W.D.10.2mm | |||
| 20x/0.4/∞/-,W.D.5.1mm | |||
| 40x/0.65/∞/-, W.D.0.52mm | |||

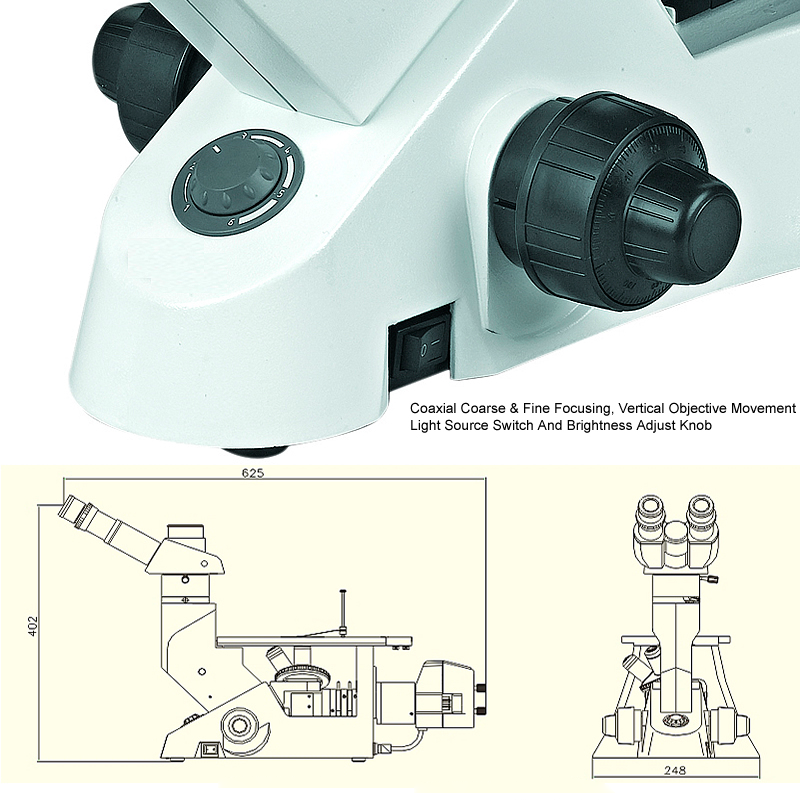

| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation | ||

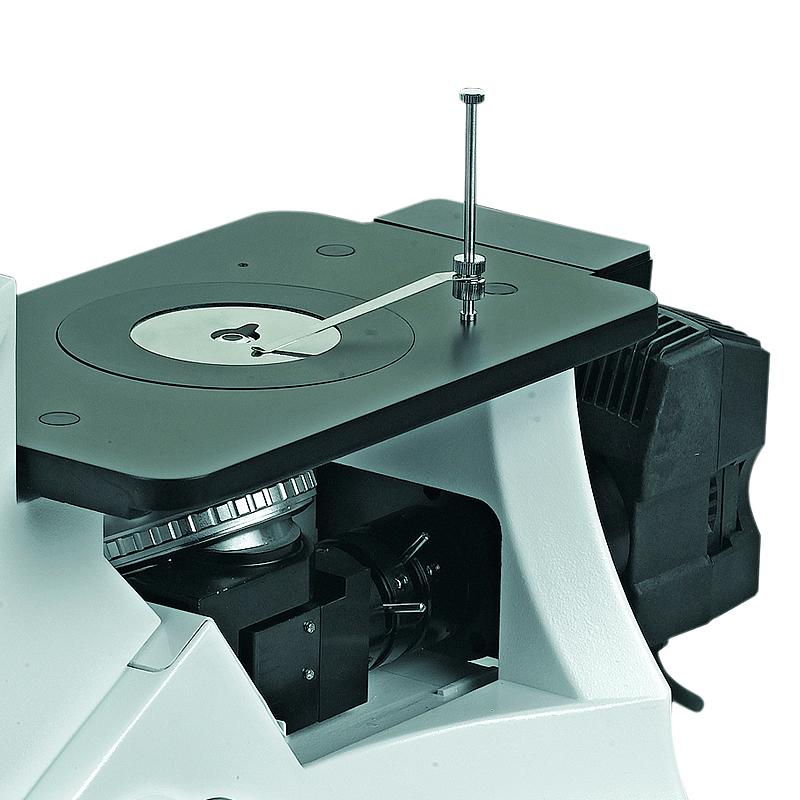

| Working Stage | Plain Stage 160*250mm With Slide Clips | ||
| Polarizing | Polarizing Attachment | ||
| Filter | Green, Blue, Yellow, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Optional Accessories | |||
| Objective | Infinity Plan Metallurgical Coverless Achromatic Objective | 5x/0.12/∞/-, W.D.15.4mm | YR0258-op1 |
| 50x/0.75/∞/-, W.D.0.32mm | YR0258-op2 | ||
| 80x/0.9/∞/-, W.D.0.20mm | YR0258-op3 | ||
| 100x/0.9/∞/0, W.D.0.7mm | YR0258-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0258-op5 | |
| Auxiliary Stage 70*180mm | YR0258-op6 | ||
| Adapter | Photo Adapter | YR0258-op7 | |
| C-Mount 1.0x | YR0258-op8 | ||
| C-Mount 0.5x | YR0258-op9 | ||
Technical specifications
| Dimensions | L 46.8 × W 39.7 × H 66.5 cm |
|---|---|
| Weight | 15 kg |
| Manufacturer | Kalstein |
