Description

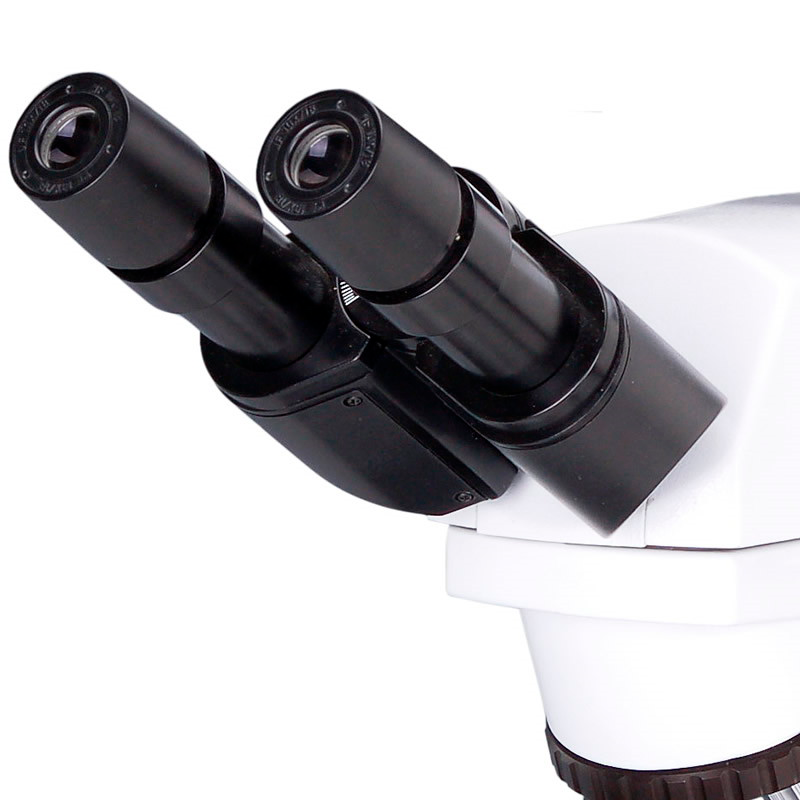

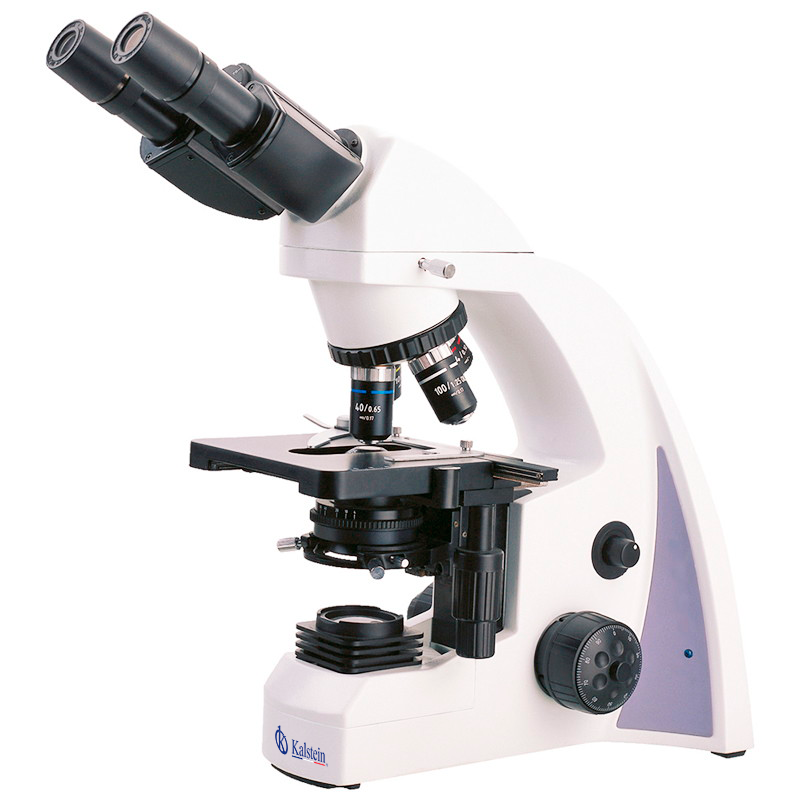

The Laboratory Microscope YR0237 is a precision instrument designed for rigorous research and educational environments. With a Seidentopf binocular head inclined at 30°, and an interpupillary distance adjustable between 52-75mm, it promises comfort and versatility during prolonged use. This microscope comes equipped with wide field eyepieces (WF10x/18mm) and infinity semi-plan achromatic objectives ranging from 4x to 100x, allowing a comprehensive observation of slide specimens with incredible clarity. The mechanical double-layer stage ensures precise sample manipulation, and the S-LED illumination with adjustable brightness provides optimum lighting conditions for any analysis.
Price in the Market
In the competitive landscape of laboratory microscopes, the Laboratory Microscope YR0237 finds itself within a reasonable price range. Typically, these high-performance microscopes are priced between 1100 USD and 1900 USD, reflecting their advanced features and reliable construction.
Frequently Asked Questions
Q: Is the YR0237 suitable for both educational and professional laboratory settings?
A: Absolutely, the YR0237 offers advanced features that make it ideal for both educational purposes and professional laboratory research.
Q: Can the microscope’s illumination be adjusted?
A: Yes, the S-LED illumination can be adjusted for brightness ensuring clear visibility under varying conditions.
Advantages and Disadvantages
Advantages:
The YR0237 offers excellent optical quality and ergonomic design, enhancing user experience during long hours of work. Its reliable mechanical stage and adjustable lighting system are tailored for sophisticated laboratory work.
Disadvantages:
Despite its robust features, the microscope may be considered expensive for smaller educational institutions or budding home laboratories.
Product Use in the Field
The Laboratory Microscope YR0237 is a staple in research laboratories and academic institutions. Whether exploring cell structures or identifying microorganisms, its precision and clarity make it indispensable for accurate scientific analysis.
Recommendations
To maximize the performance of your YR0237 microscope, it’s advisable to routinely clean its lenses with optical tissue and ensure that the movable stage is free from dust and debris. Utilizing a dust cover when the microscope is not in use can significantly extend its lifespan.
Features
- Seidentopf Binocular Head, inclined at 30°
- WF10x/18mm Wide Field Eyepieces
- Infinity Semi-Plan Achromatic Objectives (4x, 10x, 40x, 100x)

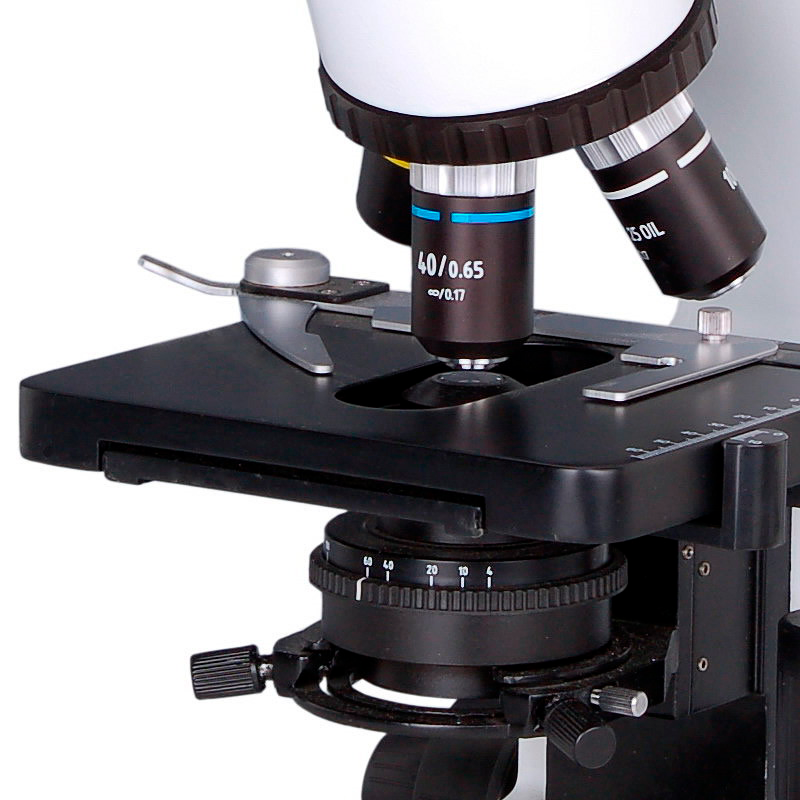

- Double Layer Mechanical Stage, 140×140mm
- S-LED Illumination with adjustable brightness
Technical Specifications
| Model | YR0237 | YR0237-1 | |
| Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | |
| Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | ||
| Eyepiece | Wide Field Eyepiece WF10x/18mm | ||
| Objective | Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x | ||
| Nosepiece | Backward Quadruple Nosepiece | ||
| Stage | Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm | ||
| Condenser | Sliding-in Center Adjustable Condenser N.A.1.25 | ||

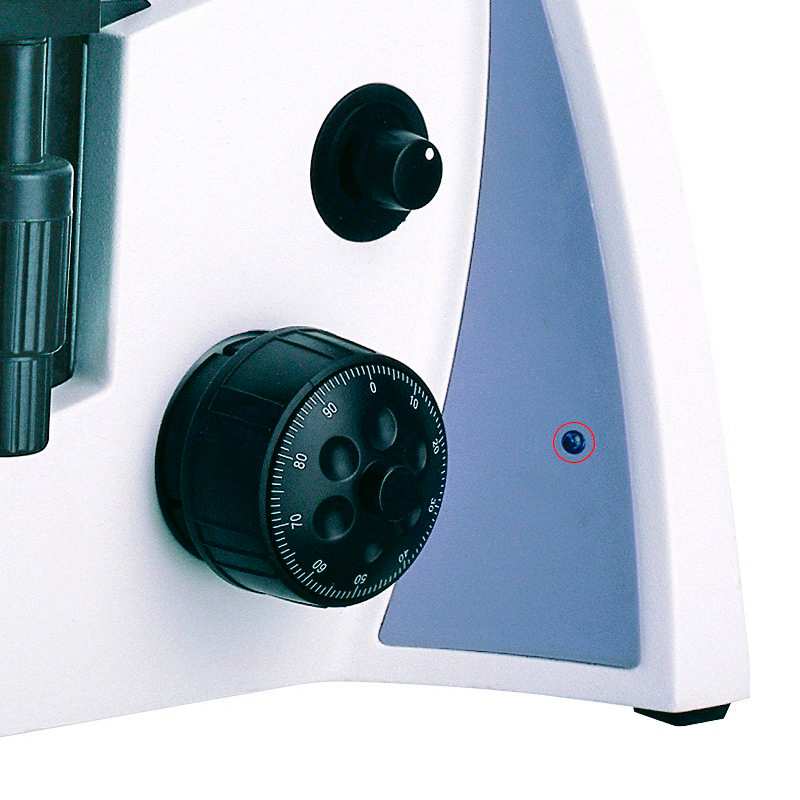

| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ||
| Illumination | S-LED Illumination, Adjustable Brightness | ||
| Laboratory Biological Microscope Optional Accessories | |||
| Eyepiece | WF10x/20mm, Diopter Adjustable | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W Halogen Lamp, Brightness Adjustable | YR0237-1-op6 | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.7~0.9 | YR0237-1-op7 | |
| Dark Field Condenser,Immersion, N.A.1.25~1.36 | YR0237-1-op8 | ||
| Dark Field Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| ForImmersion Dark Field Observation | |||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0237-1-op10 | ||
| ForImmersion Dark Field Observation | |||
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0237-1-op11 | |
| –Infinity Plan Turret Phase Contrast Condenser | |||
| –Ininity Plan Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| Infinity Achromatic Turret Phase Contrast Set | YR0237-1-op12 | ||
| –Infinity Achromatic Turret Phase Contrast Condenser | |||
| –IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x | |||
| –Centering Telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 | YR0237-1-op13 | |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0237-1-op14 | ||
