LCD Touch Screen Digital Microscope YR05782
LCD Touch Screen Digital Microscope YR05782 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

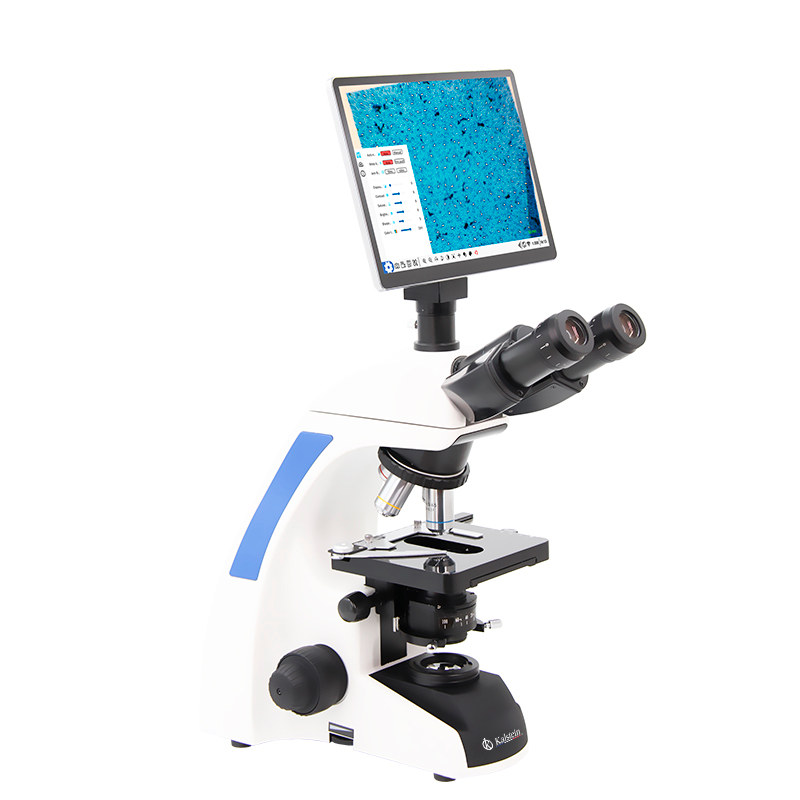

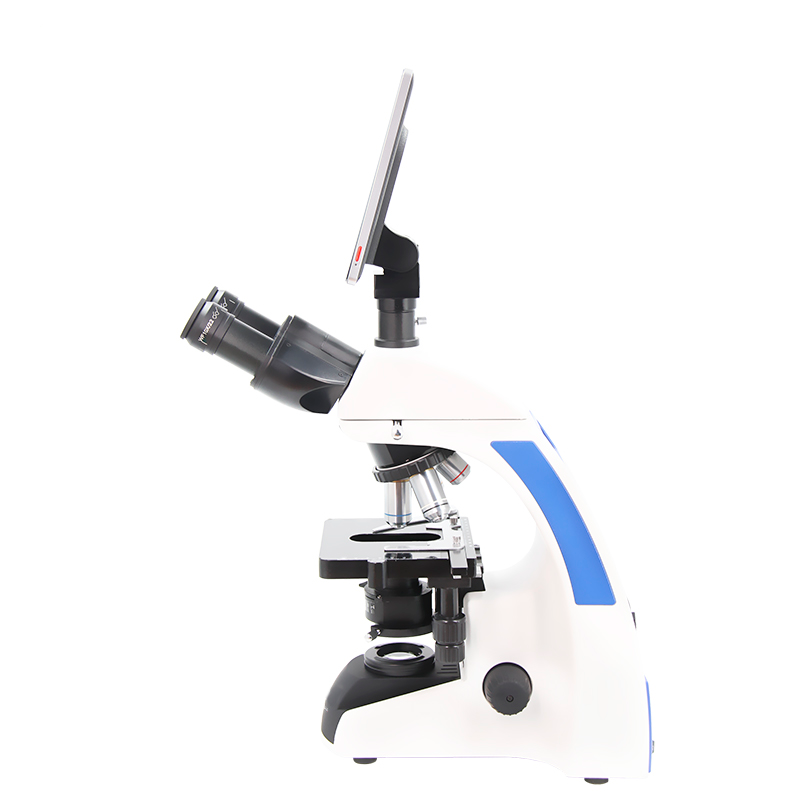

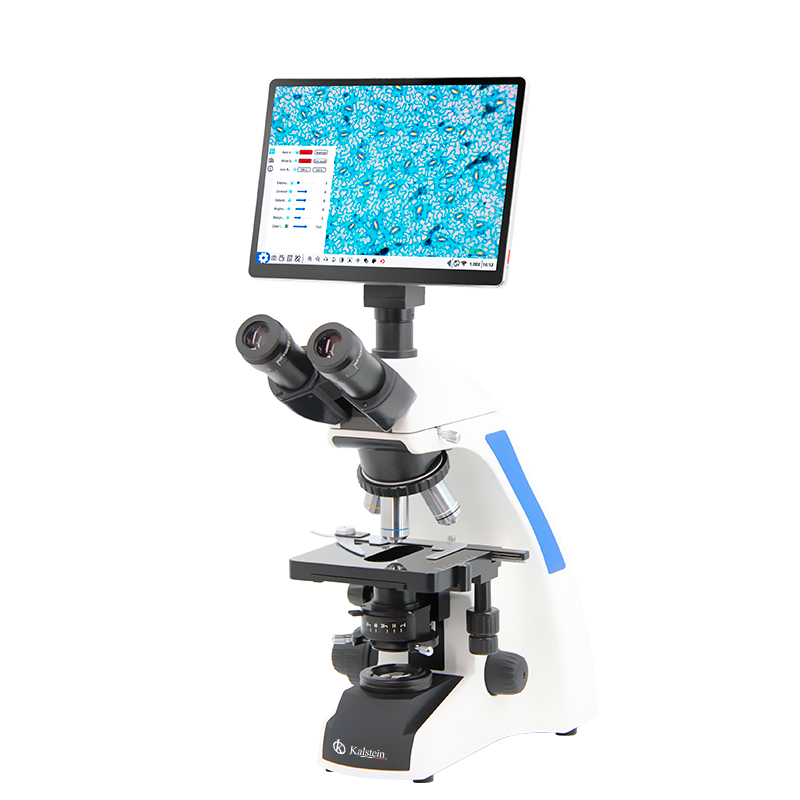

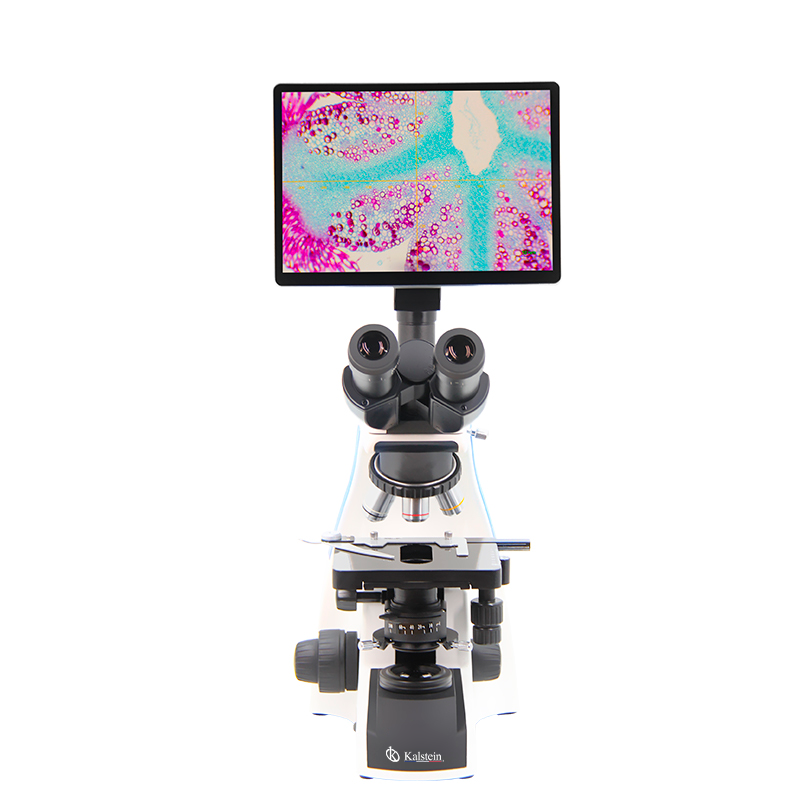

The LCD Touch Screen Digital Microscope YR05782 is a state-of-the-art tool offering a 10.5" LCD Touch Screen Pad, complemented with an Android System and built-in measuring software. It boasts a high eyepoint wide field eyepiece with capabilities for achromatic and chromatic correction, catering to precision-focused microscopy. The product is easily upgradeable, featuring double-layer mechanical stage options and Kohler illumination that ensures optimal brightness and contrast for detailed image analysis. Its innovative design allows seamless integration with various digital and optical components, making it an essential device for labs, research institutions, and educational settings.
Market Price
In the realm of advanced digital microscopes, prices typically range from 1300 USD to 2000 USD, depending on specifications and included features. Despite its high-end technology, the YR05782 offers competitive pricing, ensuring great value for your investment in precision microscopy.
Frequently Asked Questions
- What is the maximum magnification of the YR05782 microscope?
The microscope can achieve up to 100x magnification with its oil immersion objective. - Is the microscope compatible with wireless devices?
Yes, the device supports dual-band Wi-Fi and Bluetooth 5.0, allowing for seamless connectivity and data transfer. - Can I use the microscope for capturing video?
Absolutely, the built-in system supports 1080P video recording and still photo capture.
Advantages and Disadvantages
Among the key advantages of the YR05782 are its intuitive touch interface, excellent optical clarity, and wide upgradeability. However, some users might find the advanced features a bit of a learning curve if not familiar with digital microscopy systems.
Product Use in the Field
This microscope is ideally suited for detailed cellular analysis, geoscience applications, and other scientific research fields requiring high precision. Its digital integration facilitates remote data sharing and collaboration, invaluable for modern research environments.
Recommendations
For optimal use, regularly calibrate and maintain the microscope as per manufacturer instructions. This will ensure longevity and consistent performance. Explore the advanced functions of the S-Eye software to take full advantage of measurement and annotation capabilities.
Features

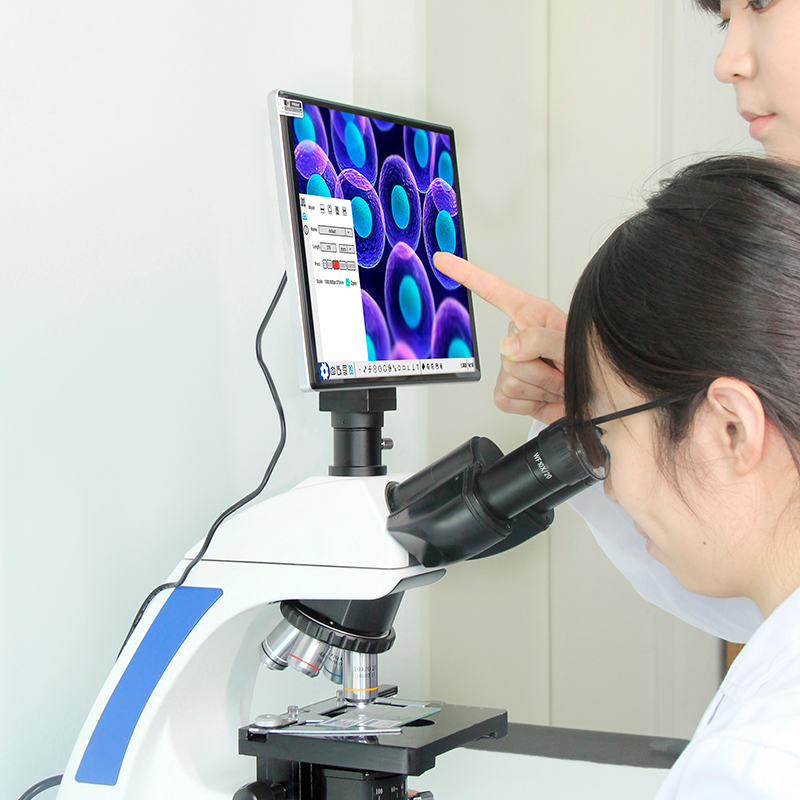

- 10.5" LCD Touch Screen Android System
- High Contrast Objectives up to 100x Magnification
- Advanced Illumination with Adjustable LEDs
- Wi-Fi and Bluetooth Connectivity
- Digital Camera with 8.0M Resolution
Technical Specifications
| Model | YR05782 | |
| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

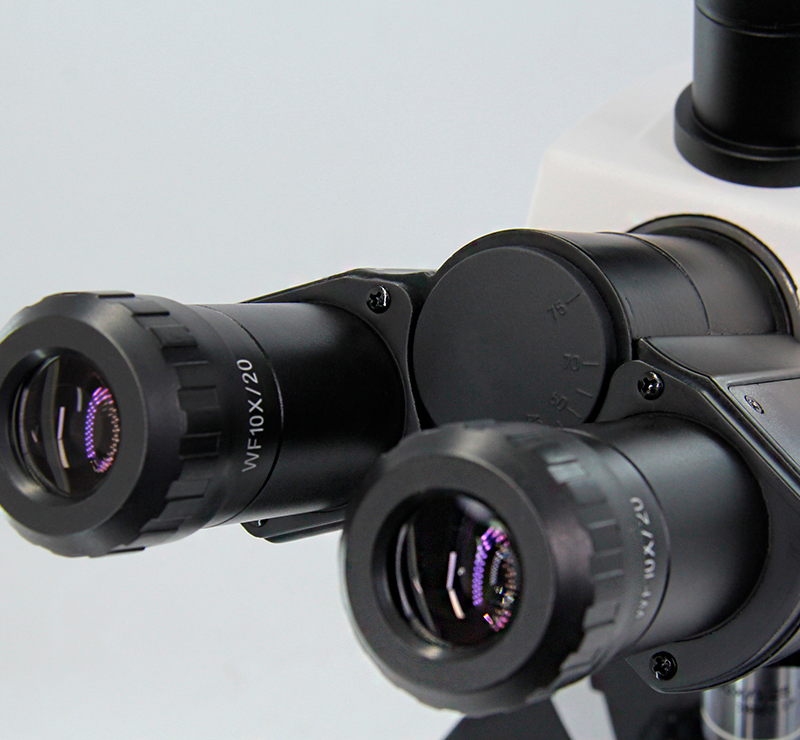

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |

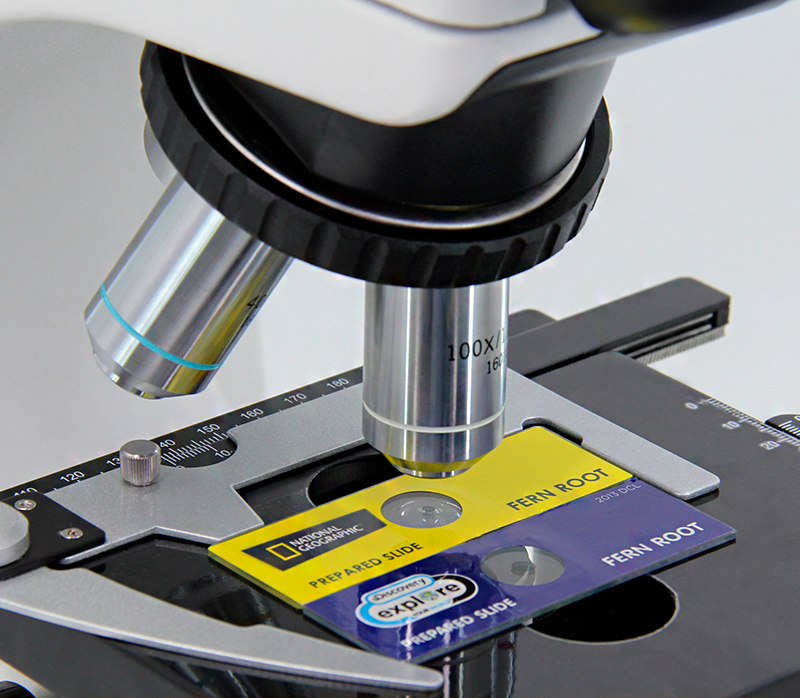

| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |
| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |

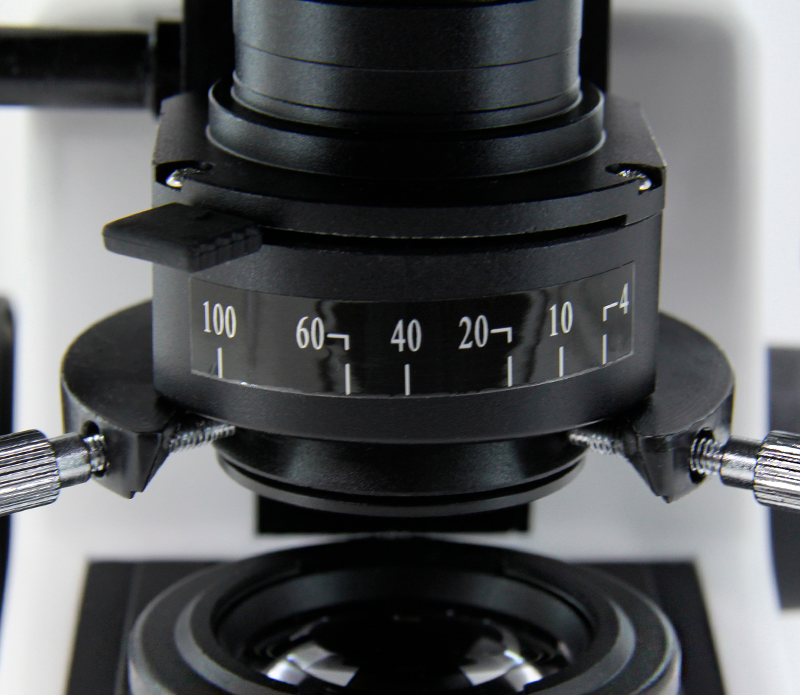

| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |
| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
Technical specifications
| Dimensions | L 53 × W 32.5 × H 53.5 cm |
|---|---|
| Weight | 11.5 kg |
| Manufacturer | Kalstein |
