Description

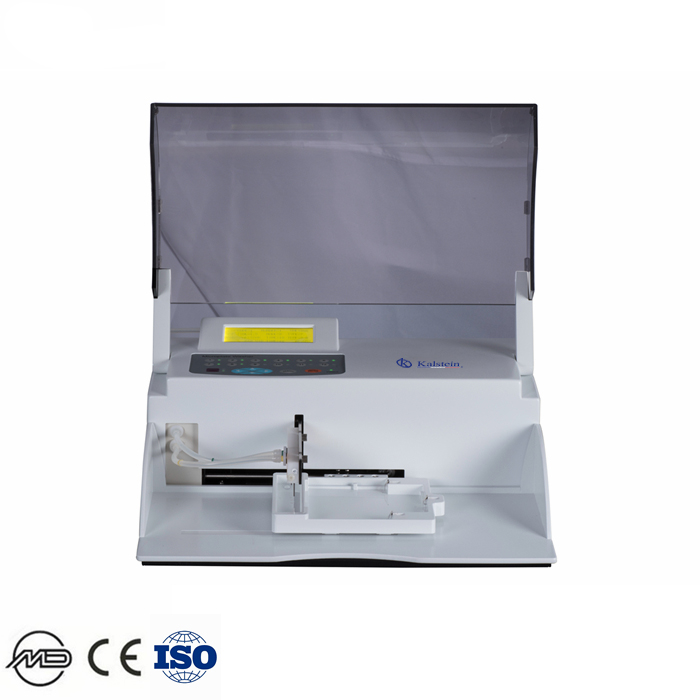

The Microplate Washer YR05124 – YR05125 is an advanced solution designed for efficient and versatile microplate washing. With the flexibility to handle both 8-well and 12-well configurations, this washer is suitable for U-/V-/Flat-bottom plates, making it an ideal choice for a variety of laboratory applications. Its adjustable shaking and soaking times, alongside an automatic liquid level warning system, ensure precise washing operations. Plus, its compatibility with multiple strip selections directly from the keyboard enhances usability and convenience.
Market Pricing
In the market, microplate washers typically range between $3000 and $3800 USD. This range reflects the advanced features and durable design of products within this category, aligning with industry standards and laboratory needs.
Frequently Asked Questions
What types of plates are compatible with the microplate washer?
The washer supports 48/96-well U-/V-/Flat-bottom plates or strips.
Can the washing cycles be customized?
Yes, the washing cycles are fully adjustable according to your requirements.
Does the device offer technical support after purchase?
Yes, online technical support is available for assistance.
Advantages and Disadvantages
Advantages:
– Versatile with support for multiple plate types.
– Adjustable dispense volume and programmable options.
– Large LCD display for easy operation.
Disadvantages:
– May require initial setup and configuration for optimized use.
Product Usage in the Field
The Microplate Washer YR05124 – YR05125 is widely used in both clinical and research laboratory settings where high-throughput and precision are necessary. Its ability to store up to 100 programs makes it an invaluable tool for repetitive procedures and provides reliable performance during routine sample processing.
Recommendations
To maximize the effectiveness of your microplate washer, ensure regular maintenance and timely calibration. Regularly check for software updates that may enhance functionality. For optimal operation, utilize the manufacturer’s guidelines regarding soaking and shaking times.
Features
- 8 and 12-well wash head options
- Selectable strips via keyboard
- Adjustable soaking and shaking time
- Automatic waste, lotion, and distilled water warnings
- English/Chinese language support
Technical Specifications
| Model | YR05124 | YR05125 |
| Dispense Volume | 0-950uL, adjustable | |
| Washing Cycles | optional | |
| Washing Mode | 1-12, row and rank, selectable | |
| Soaking Time | 0-999s adjustable | |
| Vibration Time | 0-999s adjustable | |
| Display | Large LCD | |
| Channel | 2 channels (including one channel for water) | |
| Memory | Up to 100 programs can be stored | |
| Power Supply | 220V±10% 50/60Hz AC110V±10% 50/60Hz 100W | |
| Dimension | 440mm(L)×305mm(W)×154mm(H) | |
| Net Weight | 13KG | |
| Microplate Types | 48/96-well U-/V-/Flat-bottom plates or strips | |
