Laboratory Microscope YR0239 - YR0240
Laboratory Microscope YR0239 - YR0240 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

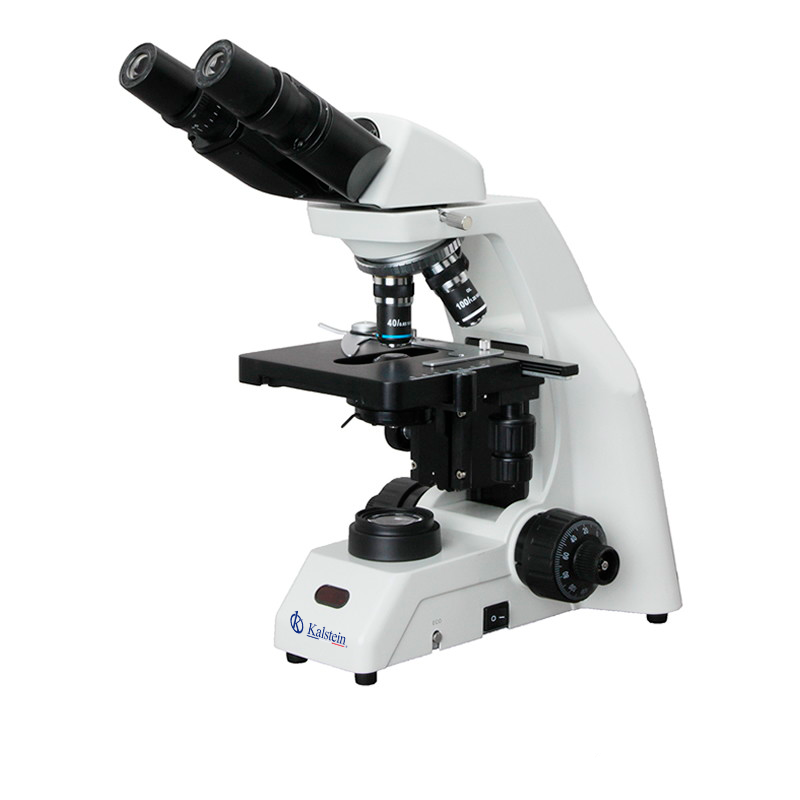

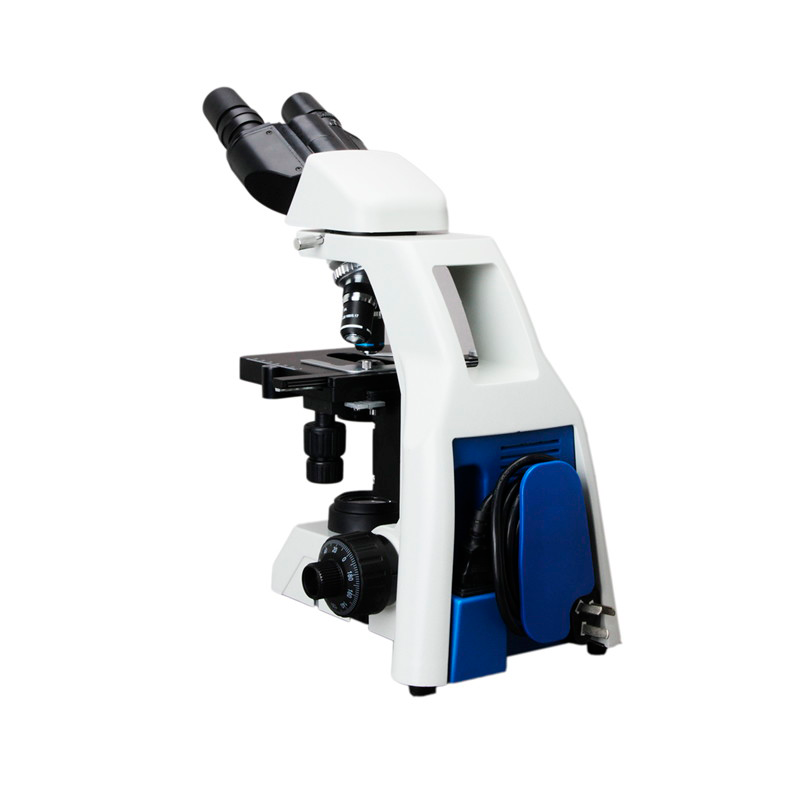

The Laboratory Microscope YR0239 - YR0240 is a versatile and reliable instrument, perfect for both educational and professional laboratory settings. With its Seidentopf binocular viewing head, inclined at 30° and offering interpupillary adjustment between 47-78 mm, this microscope ensures comfortable and precise observation. It features a finite optical system, WF10X/18 eyepieces, and a selection of achromatic objectives ranging from 4X to 100X, making it ideal for a wide array of microscopic studies. The instrument's stage is equipped with a double-layer mechanical system, providing precise movement, while its LED illumination ensures clear and bright images for thorough examination. Whether you are observing biological specimens or engaging in detailed research, this microscope delivers exceptional clarity and ease of use.
Market Price
The Laboratory Microscope YR0239 - YR0240 is competitively priced for its range of features, typically falling within the market range of $600 to $1,200. This positions it as an accessible yet high-quality option for laboratories of all scales looking for reliable and long-lasting microscopes.
Frequently Asked Questions
Q: Can this microscope be used for educational purposes?
A: Yes, this microscope is suitable for both educational and professional use, offering a variety of magnification options and user-friendly features.
Q: What type of illumination does it use?
A: The microscope features S-LED illumination, providing bright and consistent lighting for all observations.
Advantages and Disadvantages
The key advantages of the Laboratory Microscope YR0239 - YR0240 include its ergonomic design, precise optical system, and versatile magnification options. However, users should note that the darkfield condenser is not included, which may be necessary for certain advanced applications.
Product Usage in the Field
In practical scenarios, this microscope excels in educational settings, as well as in research laboratories where detailed observation of samples is crucial. Its robust design and superior optics facilitate easy identification of microorganisms and cellular structures under different magnifications.
Recommendations
For optimal results, regularly clean the lenses and ensure that mechanical parts are adequately lubricated. Additionally, users are encouraged to explore different objective lenses to maximize the potential applications of the microscope.
Features
- Darkfield condenser (dry, oil)
- Seidentopf binocular viewing head 30° inclined, interpupillary 47-78 mm
- Coaxial fine and coarse adjustment, 0.002mm fine division, 25mm moving range
Technical Specifications
| Model | YR0239 | YR0239-1 | YR0240 | YR0240-1 | |
| Optical System | Finite Optical System | ||||
| Eyepiece | WF10X/18 | ||||
| Viewing Head | Monocular Head Inclined at 30° | ○ | ○ | ○ | ○ |
| Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi | ○ | ○ | ○ | ○ | |
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, 8"LCD. Android OS | ○ | ○ | ○ | ○ | |
| Achromatic Objective | 4X N.A=0.1 WD=37.5 | ● | ● | ● | ● |
| 10X N.A=0.25 WD=7.316 | ● | ● | ● | ● | |
| 20X N.A=0.4 WD=13 | ○ | ○ | ○ | ○ | |
| 40X N.A=0.65 WD=0.632 | ● | ● | ● | ● | |
| 100X N.A=1.25 WD=0.198 | ● | ● | ● | ● | |
| Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | ● |
| Stage | Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm | ||||
| Condenser | NA1.25 Abbe Condenser | ● | ● | ● | ● |
| Dark Field Condenser (Dry, Oil) | ○ | ○ | ○ | ○ | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | ||||
| Illumination | Halogen Lamp 6V/20W | ○ | ○ | ○ | ○ |
| S-LED Illumination | ● | ● | ● | ● | |
| S-LED Illumination with Recharger | ○ | ○ | ○ | ○ | |
| Kohler Illumination | ○ | ○ | ○ | ○ | |

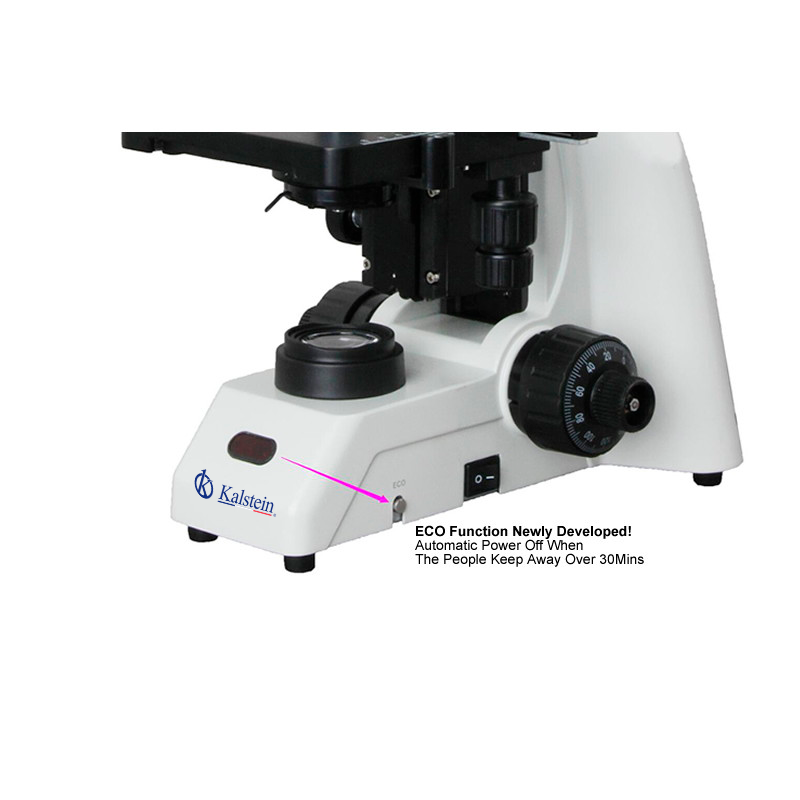

| ECO Function (Auto Power Off After 30 Mins No Operation) | ○ | ○ | ● | ● | |
| Plane-concave Mirror | ○ | ○ | ○ | ○ | |
| Fluorescent Attachment | Fluorescent Illumination, LED Lamp | ○ | ○ | ○ | ○ |
| Fluorescent Illumination, 100W HBOLamp | ○ | ○ | ○ | ○ | |
| Polarzation Set | ○ | ○ | ○ | ○ | |
| Phase Contrast Kit | ○ | ○ | ○ | ○ | |
Technical specifications
| Manufacturer | Kalstein |
|---|
