Description

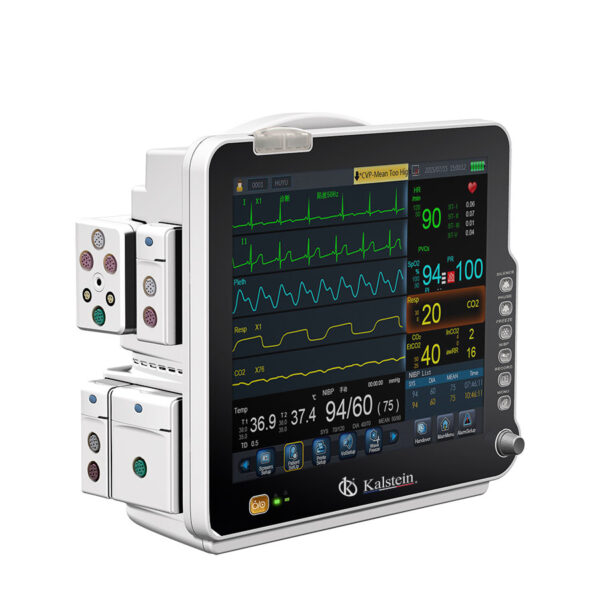

The Multi-parameter Patient Monitor YR02177 is an advanced device designed for precise monitoring in critical environments such as Operating Theaters (OT) and Intensive Care Units (ICU). Featuring a 17-inch full modular LCD screen, this monitor provides comprehensive real-time data with standard parameters including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. With customizable options like Masimo/Nellcor SpO2 and Suntech NIBP, the YR02177 meets diverse clinical needs, ensuring optimal patient care.
Market Price
The pricing for multi-parameter patient monitors can vary based on features and brand reliability. The typical market range for a product like the YR02177 is approximately $4500 to $5400. This reflects the quality and technology incorporated within the device, offering a balance of cost and advanced functionality.
Frequently Asked Questions
What is the primary use of the YR02177 Patient Monitor?
It is used for continuous monitoring of vital signs in critical settings, primarily in OT and ICU.
Can the monitor be customized?
Yes, there are optional modules available including Dual-IBP, BIS, and different SPO2 technologies, allowing customization as per medical requirements.
Advantages and Disadvantages
Advantages: The YR02177 offers a clear display and supports modular upgrades. Its accuracy in vital sign monitoring enhances patient safety.
Disadvantages: The setup might require technical expertise, and additional options could increase the overall cost.
Product Use in the Field
In practical scenarios, the Multi-parameter Patient Monitor YR02177 is deployed in scenarios requiring vigilant patient oversight. Its multi-lead ECG and respiration tracking are particularly advantageous in surgeries and critical care.
Recommendations
For optimal use, regular calibration and software updates are recommended. Familiarizing the medical staff with the device’s capabilities ensures efficient monitoring.
Features
- 17-inch modular LCD screen suitable for OT and ICU.
- Standard parameters include ECG, SPO2, TEMP, NIBP, RESP, PR/HR.
- Upgradeable with optional features like Masimo/Nellcor SpO2 and Suntech NIBP.
- High accuracy and resolution, suitable for adult, pediatric, and neonatal patients.
Technical Specifications
| Model | YR02177 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
