Description

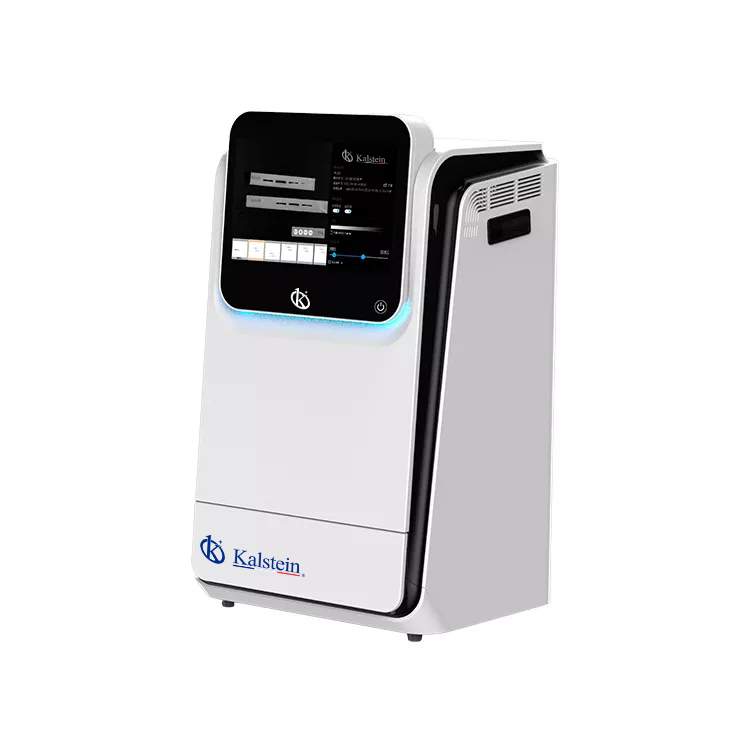

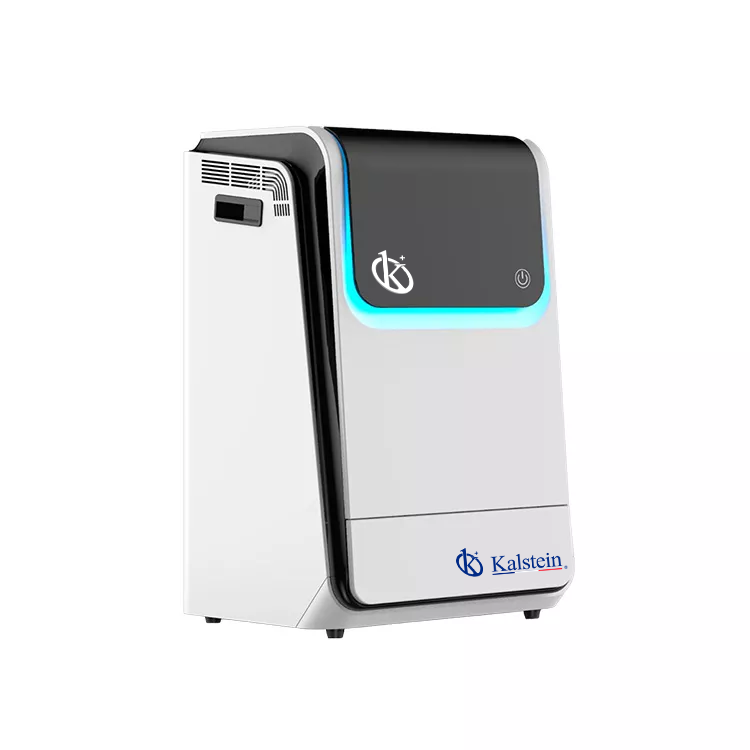

The Multifunctional Imager YR06210-YR06211 is a cutting-edge tool designed to simplify high-performance imaging tasks. Engineered for visible light (RGB), far-red/near-infrared (FR/NIR) fluorescence, and chemiluminescence detection, it is ideal for general gel documentation applications. An innovative electronic lifting platform enhances versatility by adjusting the capture area to fit diverse sample sizes, while the optional removable PC offers flexibility and minimizes aftermarket risks. With a super sensitive cooled digital camera and intuitive software, the device supports unlimited users, making it an essential addition to any laboratory.
Price in the Market
The Multifunctional Imager YR06210-YR06211 is competitively positioned within the high-tech imaging equipment market, with prices ranging between USD 25,000 and USD 26,300. This range reflects the device’s advanced features and specialized capabilities. For precise pricing, users are encouraged to request a quote via the Kalstein Plus platform, ensuring they receive the most current and accurate information tailored to their needs.
Frequently Asked Questions
What types of imaging can this device perform? The imager is adept at chemiluminescence imaging, fluorescent imaging, and gel documentation.
Is there a warranty available? Yes, the device comes with a standard manufacturer’s warranty. For specifics, please consult the sales representative.
Advantages and Disadvantages
- Advantages: High sensitivity, intuitive software, versatility in applications, and scalable for different laboratory needs.
- Disadvantages: The initial investment may be significant for smaller labs; however, the long-term benefits justify the cost.
Usage in the Field
In practical settings, the device’s flexibility is demonstrated in various imaging applications such as ECL Western Blotting and fluorescence imaging. Researchers benefit from the electronic lifting platform, which allows seamless adaptation to different sample sizes, enhancing productivity and precision in the lab.
Recommendations
To maximize the functionality of the Multifunctional Imager, ensure all software is updated regularly. Take advantage of the optional removable PC for increased processing capabilities. Regular maintenance and calibration are recommended to maintain optimal performance.
Features
- Super sensitive Cooled digital Camera
- Wide range of applications
- Electronic lifting platform

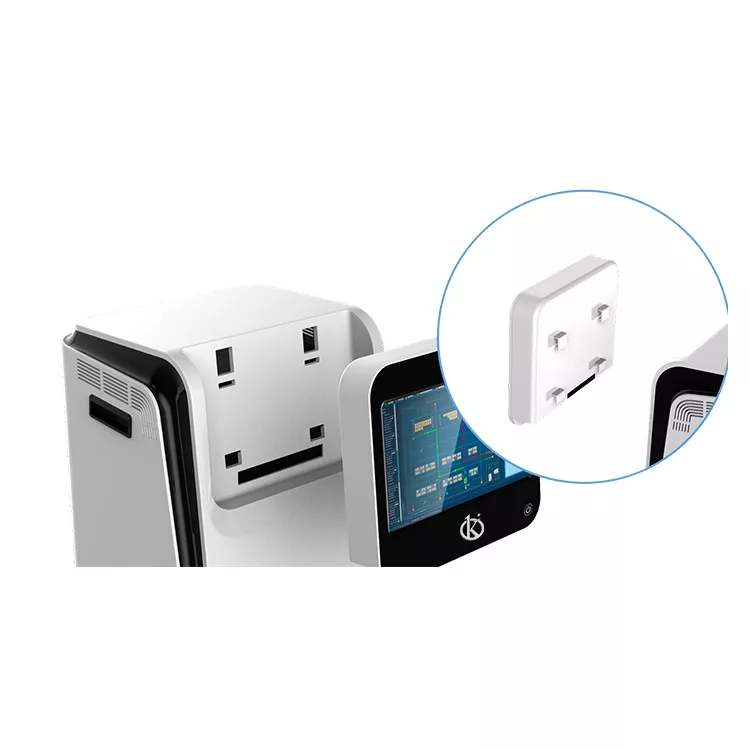

- Optional removable PC
- Intuitive Software for unlimited users
Technical Specifications
| Model | YR06210 | YR06211 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein gel；SDS Pages | YES | YES | |
| Standard Parameters | Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemilluminescence Sample tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein gel；SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
| Optional Accessories | Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
