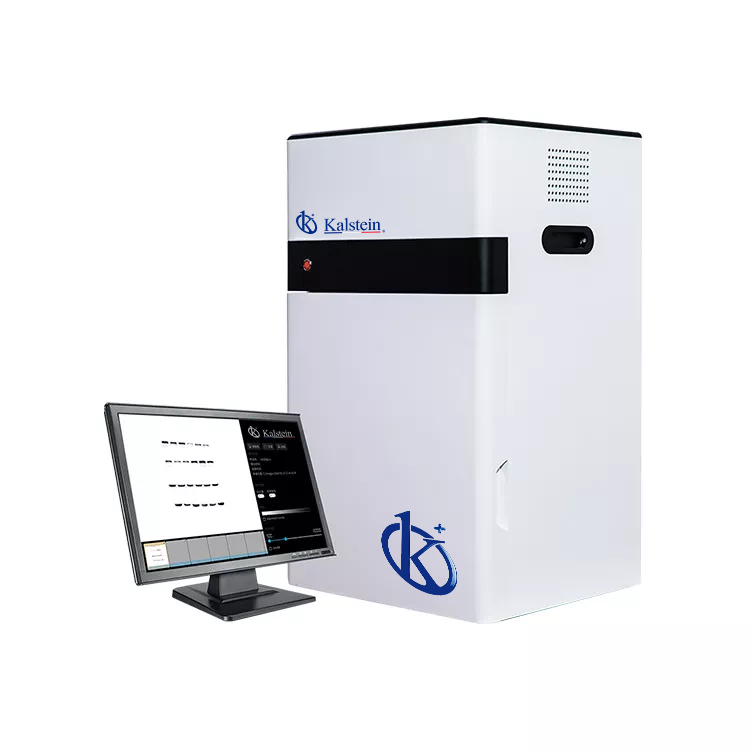

Multifunctional Imager YR06212
Multifunctional Imager YR06212 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Multifunctional Imager YR06212 is a cutting-edge solution for laboratories requiring superior imaging capabilities. Designed for high performance, this imager excels in visible light (RGB) and far red/near infrared (FR/NIR) fluorescence, as well as chemiluminescence detection. Its electronic lifting platforms enable precision in capturing images of various sample sizes. An optional removable PC offers quick operation and mitigates after-sales risks associated with embedded systems. With features like a super sensitive cooled digital camera and intuitive software for unlimited users, the YR06212 is crafted for versatility and convenience.
Market Price
The Multifunctional Imager YR06212 stands out in the market with its robust features and advanced technology. For similar products, prices typically range from $19,000 to $20,000 based on different functionalities and configurations. You can request a personalized quote to see how the YR06212 fits within your budget through our Kalstein Plus platform.
Frequently Asked Questions
What types of imaging applications is the YR06212 suitable for? The imager is perfect for chemiluminescence imaging, ECL Western Blotting, fluorescence imaging, and gel documentation.
Is additional software required? No, the YR06212 comes with SHST Capture and Analysis Software that allows for unlimited users.
Advantages and Disadvantages
Advantages: Offers excellent imaging versatility, intuitive software for seamless user experience, and high sensitivity thanks to the cooled digital camera.
Disadvantages: The initial investment might be considerable, but the long-term benefits in precision and efficiency make it worth considering.
Product Use in the Field
The YR06212 excels in laboratory environments where accurate and high-resolution imaging is crucial. Its applications range from protein gel documentation to fluorescence and chemiluminescence imaging, making it an ideal tool for research and diagnostic labs.
Recommendations
To maximize the performance of your Multifunctional Imager YR06212, regularly calibrate the sensor and ensure the software is updated. Take advantage of its versatile software by training all potential users within the lab to streamline operations.
Features
- Super sensitive cooled digital camera
- Wide range of applications
- Fixed 4-layer chemiluminescence sample trays
- Intuitive software for unlimited users
Technical Specifications
| Model | YR06212 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | |
| Gel Doc Application | YES | |
| Protein gel; SDS Pages | YES | |
| Standard Parameters | Sensor | Back illuminated SCMOS Sensor |
| Resolution | 9.0 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | |
| Temperature | -30 ℃ regulated | |
| Dynamic Range | 4.8OD | |
| Pixel density | 16bit(65536 Grey scales) | |
| Lens | F0.95 as standard (optional F0.8) Auto Focus | |
| Chemilluminescence Sample tray | Fixed 4 layers sample trays for different sizes of western blotting membranes | |
| DNA/RNA detection | Fixed 1 layer UV transmission as standard | |
| Protein gel；SDS Pages | Fixed white LED Transmission for Protein Gels | |
| Software | SHST Capture and Analysis Software for unlimited number of users | |
| Optional Accessories | Epi-UV, RGB and NIR fluorescent detection | |
| Connection to external PC | ||
| Blue LED transmission | ||
Technical specifications
| Dimensions | L 50 × W 55 × H 88 cm |
|---|---|
| Weight | 27 kg |
| Manufacturer | Kalstein |
