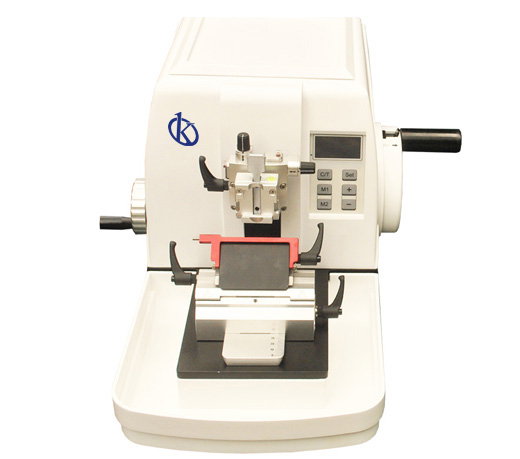

Semi-automatic detection microtome YR416-1

Manufacturer: Kalstein



Description

The YR416-1 Semi-Automatic Detection Microtome delivers maximum reliability, user benefits, and excellent operator comfort. Renowned for its stability and precision in sectioning, this versatile instrument meets the highest demands across paraffin and hard sectioning techniques in biology, medicine, and industry. Its advanced motor ensures precise sectioning, guaranteeing reproducibility and efficiency. Users can adjust the cutting window to fit various sample sizes, with the preset speed operating within this window for precise sectioning of delicate specimens in a short time. The microtome offers section thickness ranging from 0.25 μm to 100 μm, seamlessly switching between fine and gross sectioning modes during operation. Memory positioning allows quick return to stored cutting positions with the press of a button.

Market Price

The market price for the YR416-1 Semi-Automatic Detection Microtome varies depending on specifications and supplier. Generally, semi-automatic microtomes with advanced features like the YR416-1 are competitively priced to reflect their high precision and versatility in demanding laboratory environments.

Frequently Asked Questions

  • What types of samples are suitable for the YR416-1 Microtome? The YR416-1 is ideal for a wide range of biological and industrial samples due to its precise sectioning capabilities and flexible orientation adjustments.
  • Is the YR416-1 easy to maintain and operate? Yes, the YR416-1 is designed for user-friendly operation and maintenance. Its intuitive controls and adjustable settings simplify the sectioning process, ensuring consistent results.

Advantages and Disadvantages

Advantages:

  • High precision and reproducibility in sectioning with adjustable cutting parameters.
  • Versatile functionality suitable for various sample types and sizes.
  • User-friendly design with memory positioning for efficient workflow.

Disadvantages:

  • New users may require initial familiarization to optimize settings and operation.

Product Use in the Field

In practical applications, the YR416-1 Microtome excels in delivering precise sections across a wide spectrum of samples, from delicate biological specimens to robust industrial materials. Its ergonomic design and intuitive controls enhance user comfort and efficiency, making it an indispensable tool in research and diagnostic laboratories.

Recommendations

To maximize the YR416-1’s performance and longevity, regular maintenance and calibration according to manufacturer guidelines are recommended. Proper training of laboratory staff ensures optimal use and extends the microtome’s service life, maintaining consistent high-quality results.

Discover how the Semi-Automatic Detection Microtome YR416-1 can elevate your laboratory operations. Request a personalized quote or generate an automatic quote via Kalstein Plus today. Seamlessly integrate precision and efficiency into your workflow with Kalstein’s advanced laboratory solutions.

Technical Specifications

Model YR416-1
Minimum Setting of Sectioning Thickness 0.25μm
Horizontal Feed 28mm
Vertical Specimen Stroke 70mm
Specimen Holder Rotation at any angle within 360 degrees
Movement Range of the Base of BladeHolder Base 0-60mm (front to back)
Movement Range of the Blade Press plate 0-23mm
Specimen Clamp Rotation at any angle within 360 degrees
Specimen Orientation XY – 8°
Maximum Specimen Size 70×70mm
Feed speed adjust 1500μm/s ~ 3500μm/s
Precision Error ±1%
Working Voltage AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power 100W
Dimensions 575×420×330 mm (W×D×H)
Net Weight 37kg

Additional information

Weight 50 kg
Dimensions 67 × 54 × 48 cm
