Description

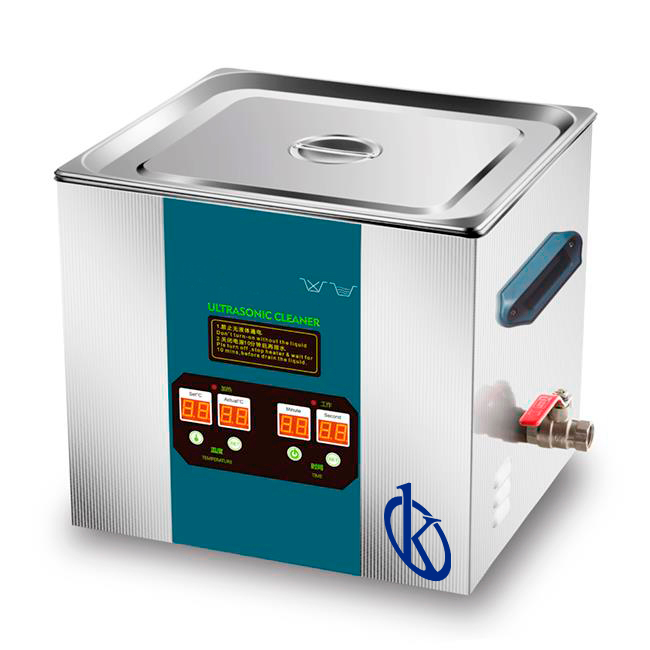

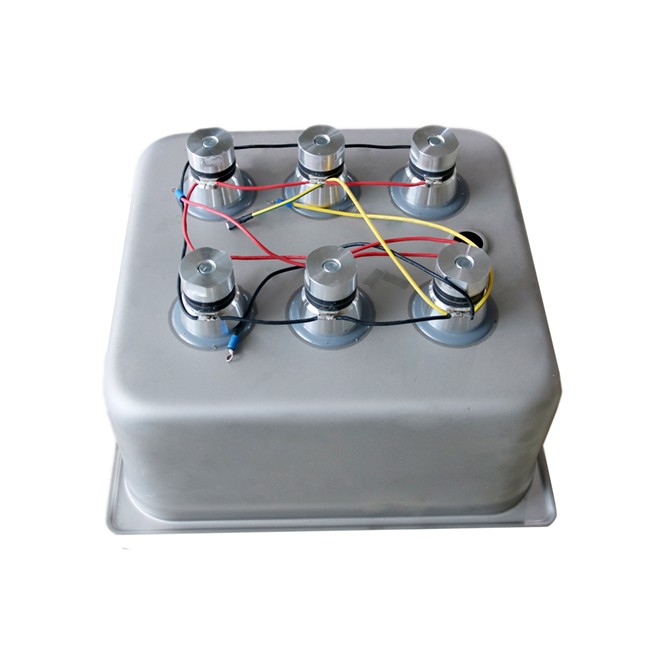

YR05216 series digital desktop ultrasonic cleaner with timer heater. High quality high quality transducers, the cleaning conversion efficiency is higher. It is widely used in various applications. More and more people regard it as a solid choice.
Main features
- Larger capacity, higher ultrasonic wave power conversion ratio, faster cleaning and schedules or scores of times higher cleaning efficiency than conventional method.

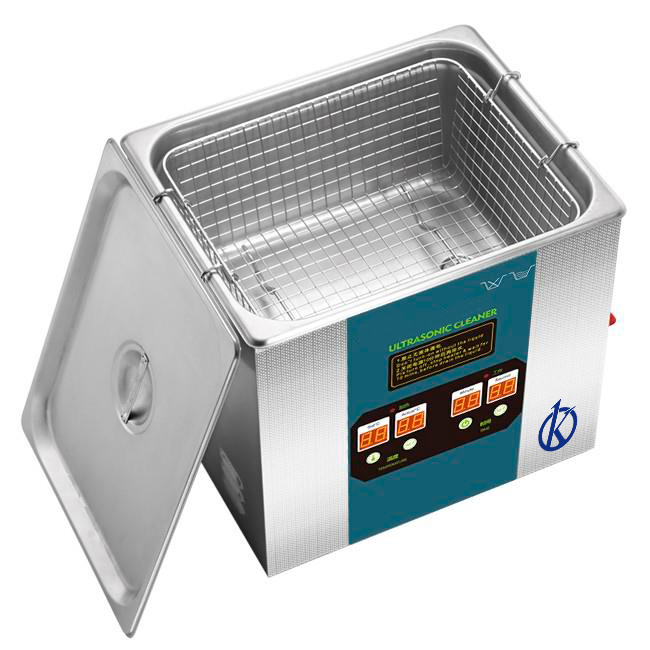

- Cleaning basket with mesh screen made of argon arc welded stainless steel for easy use.
- Safe and reliable cleaning process without the need for manual intervention and free of damage to the workpiece surface, using less solvent, thermal energy, space occupation and manpower.
- Adjustable cleaning temperature between 20 ~ 80, operating time digitally displayed and controlled with LED and ranging from 0 ~ 30 minutes to meet various cleaning needs.
Technical Specification
| Model | YR05210 | YR05211 | YR05212 | YR05213 | YR05214 |
| Internal dimensions (LxWxH) | 240*135*100 | 240*135*150 | 300*150*100 | 302*150*150 | 300*240*150 |
| Outside dimensions (L*W*H) | 268*170*243 | 268*170*290 | 325*178*243 | 325*178*290 | 368*270*290 |
| Volume (L) |
3.2 | 5 | 4.5 | 6.8 | 11 |
| Gross weight (kg) | 4.77 | 5.4 | 5.6 | 6.2 | 8.5 |
| Ultrasonic Power (W) |
120 | 120 | 180 | 180 | 240 |
| Heating power (W) | 100 | 200 | 200 | 200 | 300 |
| Drain valve |
No | No | Yes | ||
| Frequency (kHz) |
40 | ||||
| Time (Min.) |
1-99 | ||||
| Model | YR05215 | YR05216 | YR05217 | YR05218 |
| Inside dimensions (LxWxH) | 330*300*150 | 330*300*200 | 500*300*150 | 500*300*200 |
| Outside dimensions (L*W*H) | 397*320*317 | 397*320*368 | 560*320*317 | 560*320*385 |
| Volume (L) |
15 | 20 | 22 | 30 |
| Gross weight (kg) | 11.5 | 12.5 | 14.5 | 16 |
| Ultrasonic Power (W) |
360 | 360 | 480 | 600 |
| Heating power (W) | 400 | 400 | 500 | 500 |
| Drain valve |
Yes | |||
| Frequency (kHz) |
40 | |||
| Time (Min.) |
1-99 | |||
